Alto PM-12 DRAGONFLY - Ring=Return Signal (Connected Together); Tapped Connection Direct Output Lead; Y-Stereo Lead for Insert Connection

22
Sleeve=Ground/Screen
Tip=Signal
Sleeve=Ground/Screen
Ring=Return Signal (Connected together)
To Channel Insert
To Tape or FX Input

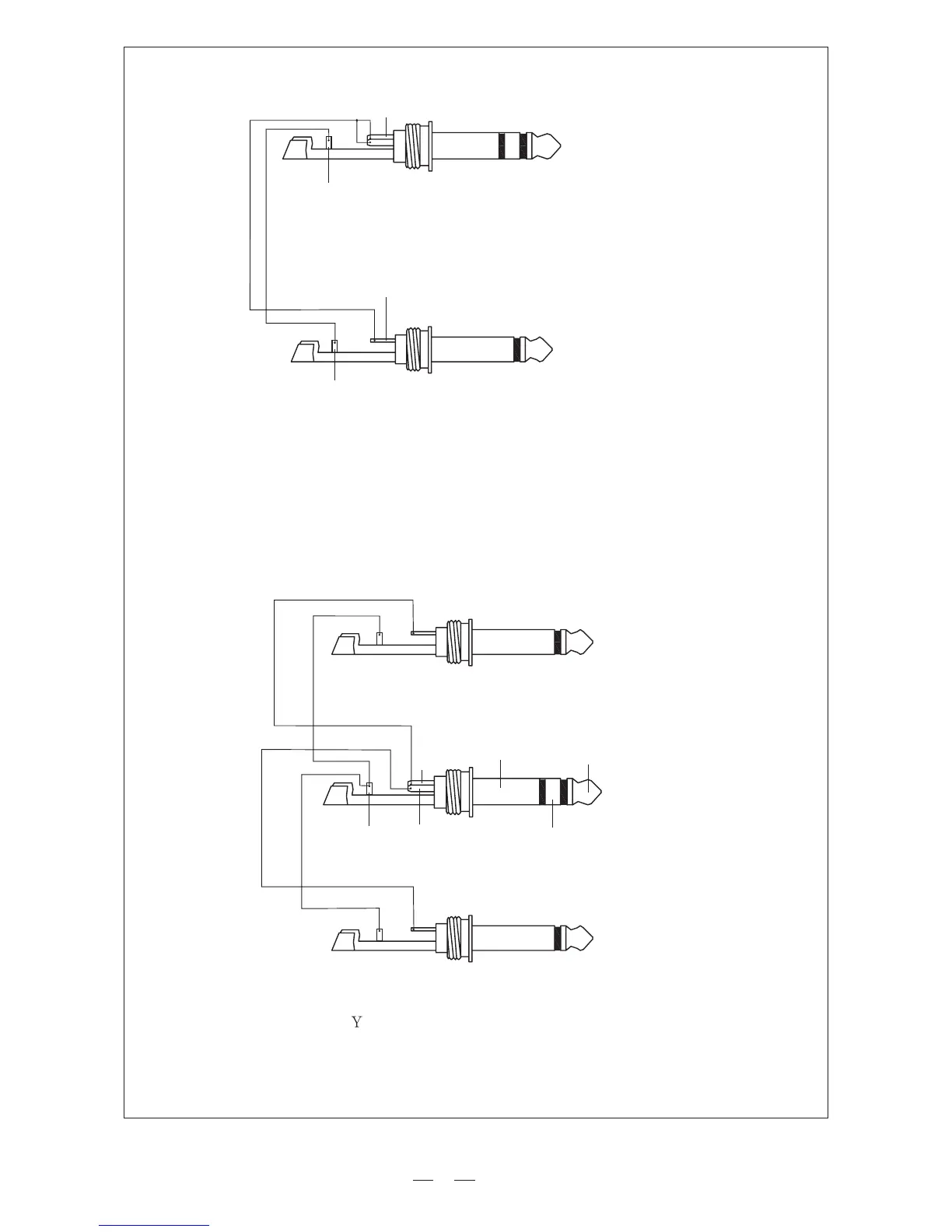

'Tapped' Connection Direct Output Lead
(Enables the Insert to be used as a Direct Output
while maintaining the channel signal flow)
Sleeve
Sleeve=Ground/Screen
Ring=Return Signal
Tip=Send Signal
To Channel Insert
To Processor Input
To Processor Output
Ring
Tip
-Stereo lead for insert Connection
(To be used when the processor does not employ a
single jack connection for the In/Out Connections)
