Alto Typhoon - Page 22

GR 6 OUT and INSERT
This balanced XLR connector is for
group 6 output, with an unbalanced
pre-fader insert connector for each
group output.
21
[ Typhoon Master Section ]
AUX 8 OUT and INSERT
This balanced XLR connector is for
auxiliary 8 send, with an unbalanced
pre-fader insert connector for each
auxiliary send.
GR 7 OUT and INSERT
This balanced XLR connector is for
group 5 output, with an unbalanced
pre-fader insert connector for each
group output.
GR 8 OUT and INSERT
This balanced XLR connector is for
group 6 output, with an unbalanced
pre-fader insert connector for each
group output.
AUX 7 OUT and INSERT
This balanced XLR connector is for
auxiliary 7 send, with an unbalanced
pre-fader insert connector for each
auxiliary send.
AUX 6 OUT and INSERT
This balanced XLR connector is for
auxiliary 6 send, with an unbalanced
pre-fader insert connector for each
auxiliary send.
GR 5 OUT and INSERT
This balanced XLR connector is for
group 5 output, with an unbalanced
pre-fader insert connector for each
group output.
AUX 5 OUT and INSERT
This balanced XLR connector is for
auxiliary 5 send, with an unbalanced
pre-fader insert connector for each
auxiliary send.

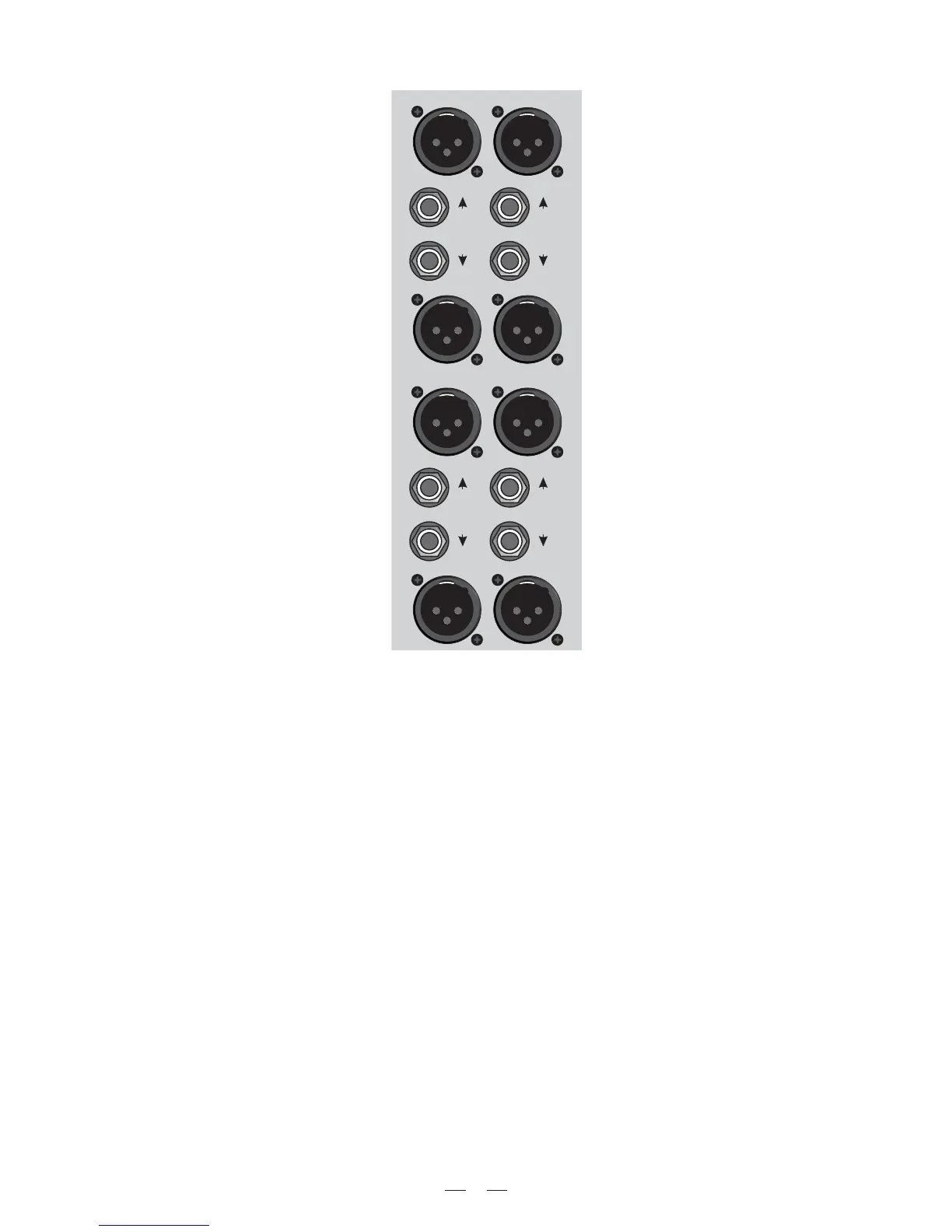

AUX5 OUT
GR7 OUT
AUX7 OUT
GR6 OUT
AUX6 OUT
GR8 OUT
AUX8 OUT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
INSERT
GR5 OUT
