MONITOR LEFT OUT & RIGHT OUT
These impedance balanced connectors are useful to connect a pair of active
monitors or an amplifier and passive studio monitors.
LEFT OUT & RIGHT OUT and INSERTs
These balanced XLR connectors output the LEFT/RIGHT MASTER signals,
and include a pre-fader insert unbalanced connector for each output.
LIGHT
This 4-pin XLR connector must be used to connect 12V DC 8W lamps.
TALKBACK INPUT
This input is for a talkback microphone, that will be managed by SOURCES
section.
HEADPHONES A & B
The Typhoon provides two stereo outputs for two headphones, with the same
signal and the same level control.
22

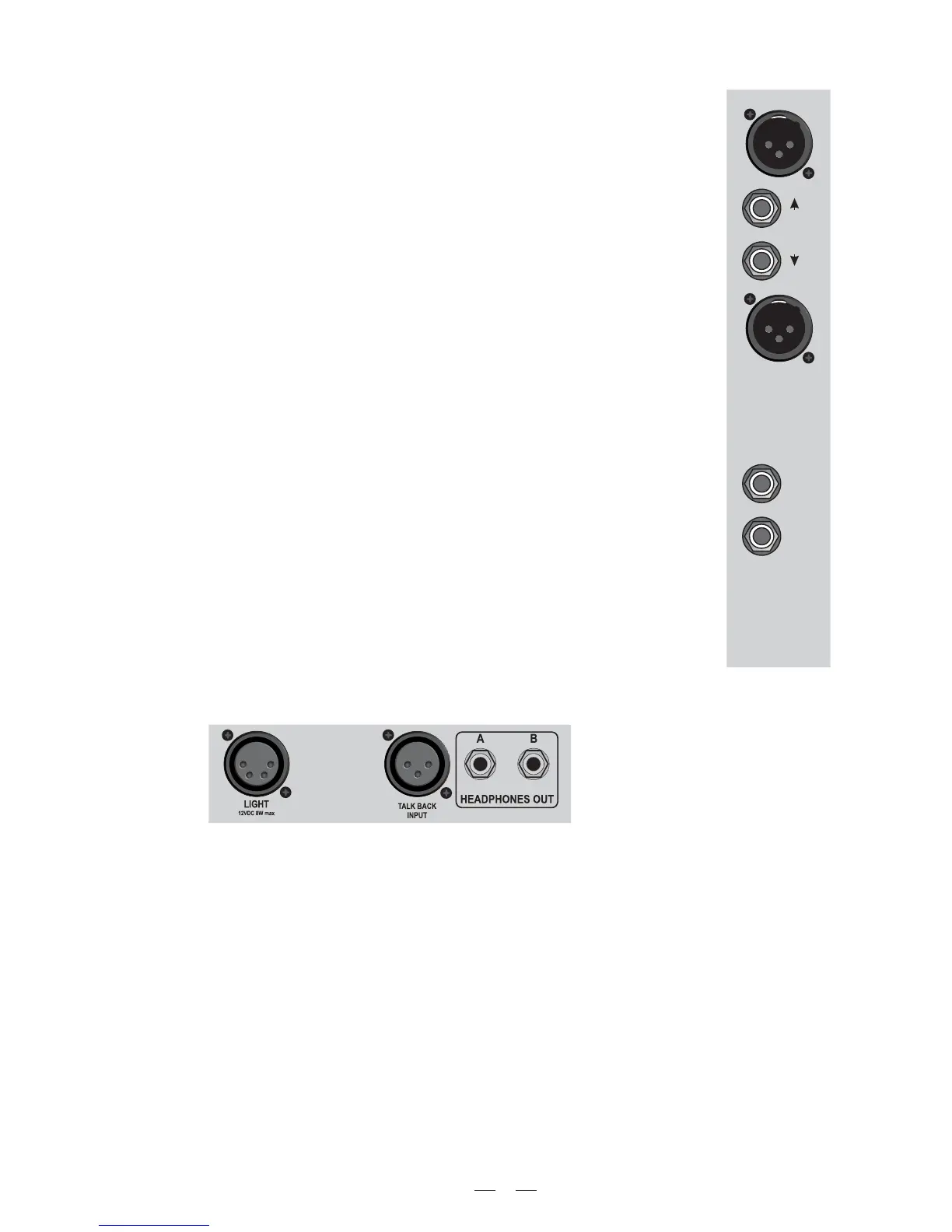

[ Typhoon Master Section ]
