Altrad BELLE - Machine Description and Technical Data

5

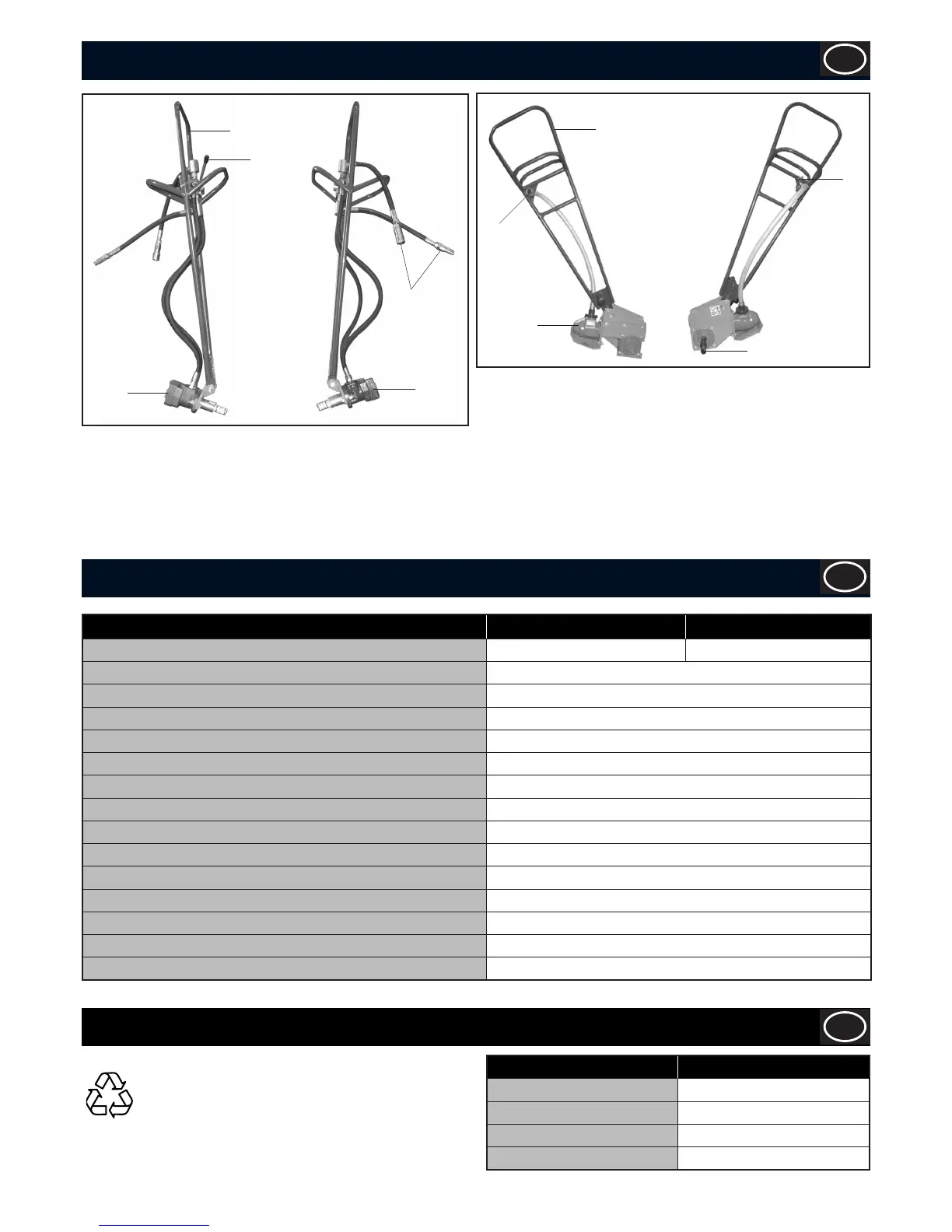

Machine Description
GB
Technical Data
GB
Pneumatic Option
1. Motor
2. Compressor Claw
3. Operating Handle
4. Control Lever
5. Drive Connector
3
2
1
5
4
10
7
8
9
6
Hydraulic Option
6. Motor
7. Control Lever
8. Couplings
9. Drive Connector
10. Operating Handle
Environment
GB
Safe Disposal
Instructions for the protection of the environment.
The machine contains valuable materials. Take the
discarded apparatus and accessories to the relevant
recycling facilities.
Model
Roller Striker Sectional Roller Striker
Tube Length (M) 3.66 - 7.92 2.2 - 7.2
Machine Weight - Hydraulic (kg) 24
Machine Weight - Pneumatic (kg) 29
Motor Power - Hydraulic (hp) 3
Motor Power - Pneumatic (hp) 2.2
Max. Drive Speed - Hydraulic (rpm) 500
Max. Drive Speed - Pneumatic (rpm) 250
Pressure Required - Hydraulic (Bar) 140
Pressure Required - Pneumatic (Psi) 90
Flow Rate - Hydraulic (l/min) 30
Flow Rate - Hydraulic (cfm) 50
3 Axis Vibration - Hydraulic (M/Sec
2
) 4.00
3 Axis Vibration - Pneumatic (M/Sec
2
) 4.06
Usage Time - Hydraulic (Mins) 187.5
Usage Time - Pneumatic (Mins) 182.0
Component Material
Operator Handle Steel
Handle Grips Rubber
Main Tube Steel
Various Parts Steel, Rubber & Aluminium
