Alutech CU-TR400-868 - Setting Door End Positions

CONTROL UNITS UTR230868 / UTR4008681010
SETTINGS

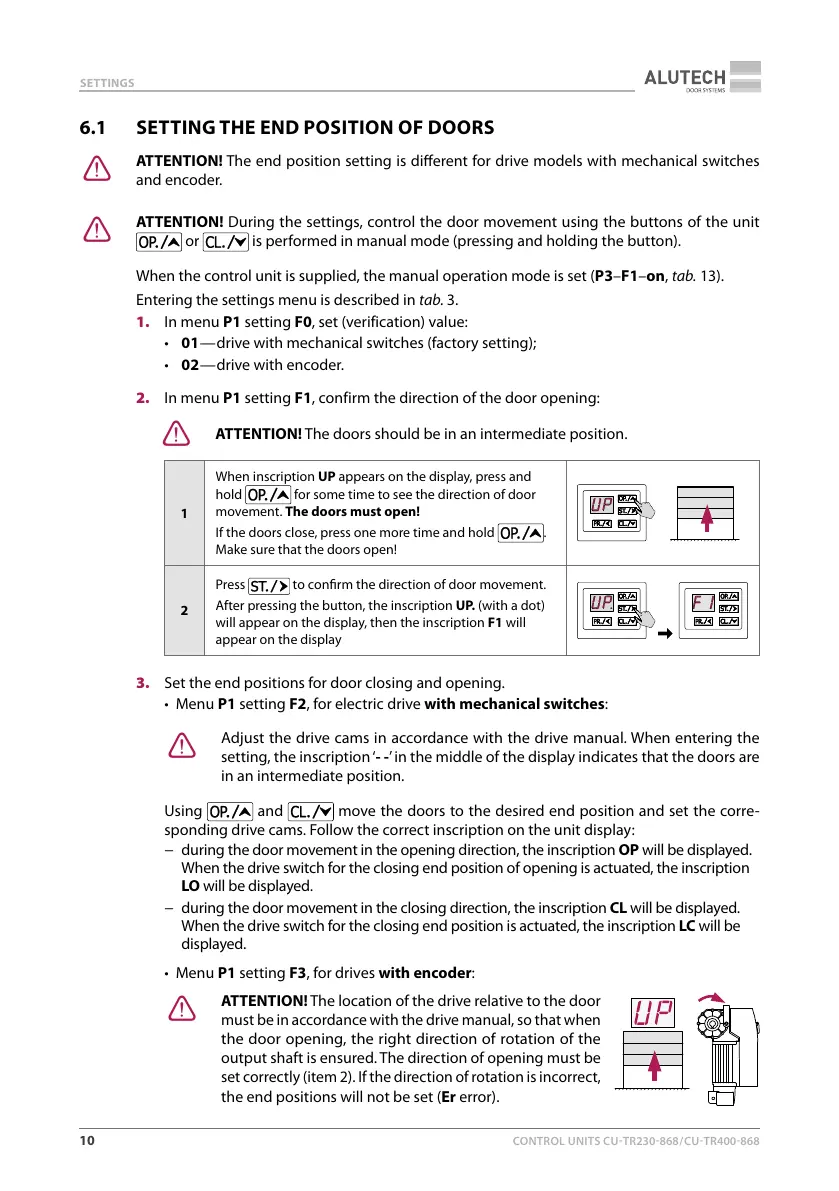

6.1 SETTING THE END POSITION OF DOORS
Y
ATTENTION! The end position setting is dierent for drive models with mechanical switches
and encoder.
Y
ATTENTION! During the settings, control the door movement using the buttons of the unit
or is performed in manual mode (pressing and holding the button).
When the control unit is supplied, the manual operation mode is set (P3–F1–on, tab.13).
Entering the settings menu is described in tab.3.
1. In menu P1 setting F0, set (verification) value:
• 01 — drive with mechanical switches (factory setting);
• 02 — drive with encoder.
2. In menu P1 setting F1, confirm the direction of the door opening:
Y
ATTENTION! The doors should be in an intermediate position.
1
When inscription UP appears on the display, press and
hold
for some time to see the direction of door
movement. The doors must open!
If the doors close, press one more time and hold
.
Make sure that the doors open!
2
Press
to conrm the direction of door movement.
After pressing the button, the inscription UP. (with a dot)
will appear on the display, then the inscription F1 will
appear on the display
3. Set the end positions for door closing and opening.
• Menu P1 setting F2, for electric drive with mechanical switches:
Y
Adjust the drive cams in accordance with the drive manual. When entering the
setting, the inscription ‘- -’ in the middle of the display indicates that the doors are
in an intermediate position.
Using and move the doors to the desired end position and set the corre-
sponding drive cams. Follow the correct inscription on the unit display:
− during the door movement in the opening direction, the inscription OP will be displayed.
When the drive switch for the closing end position of opening is actuated, the inscription
LO will be displayed.
− during the door movement in the closing direction, the inscription CL will be displayed.
When the drive switch for the closing end position is actuated, the inscription LC will be
displayed.
• Menu P1 setting F3, for drives with encoder:
Y
ATTENTION! The location of the drive relative to the door
must be in accordance with the drive manual, so that when
the door opening, the right direction of rotation of the
output shaft is ensured. The direction of opening must be
set correctly (item 2). If the direction of rotation is incorrect,
the end positions will not be set (r error).
