SETTINGS

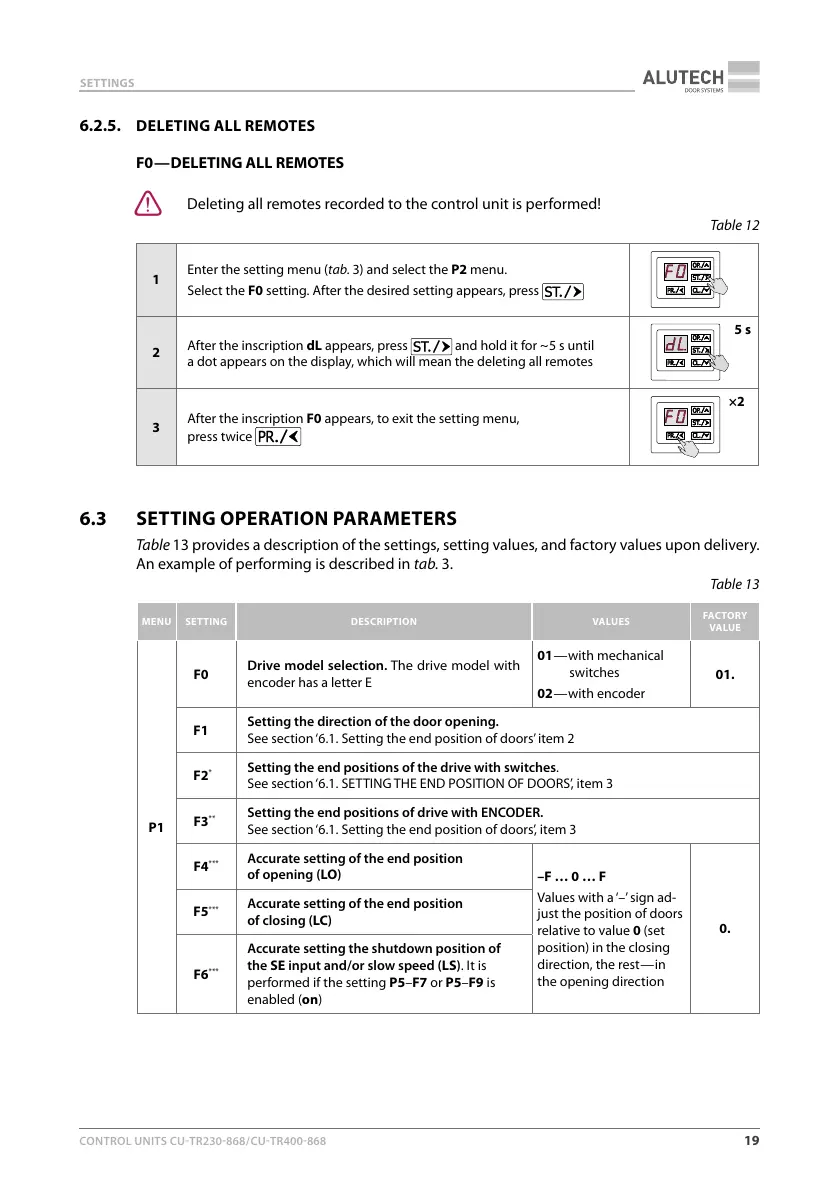

6.2.5. DELETING ALL REMOTES
F0 — DELETING ALL REMOTES
Y
Deleting all remotes recorded to the control unit is performed!
Table12
1
Enter the setting menu (tab.3) and select the P2 menu.
Select the F0 setting. After the desired setting appears, press
2
After the inscription dL appears, press
and hold it for ~ 5 s until
adot appears on the display, which will mean the deleting all remotes
5 s
3
A
fter the inscription F0 appears, to exit the setting menu,
press twice
×2
6.3 SETTING OPERATION PARAMETERS
Table13 provides a description of the settings, setting values, and factory values upon delivery.
An example of performing is described in tab.3.
Table13
MENU SETTING DESCRIPTION VALUES
FACTORY
VALUE
P1
F0
Drive model selection. The drive model with
encoder has a letter E
01 — with mechanical
switches
02 — with encoder
01.
F1
Setting the direction of the door opening.
See section ‘6.1. Setting the end position of doors’ item 2
F2
*
Setting the end positions of the drive with switches.
See section ‘6.1. SETTING THE END POSITION OF DOORS’, item 3
F3
**
Setting the end positions of drive with ENCODER.
See section ‘6.1. Setting the end position of doors’, item3
F4
***
Accurate setting of the end position
ofopening (LO)
–F … 0 … F
Values with a ‘–’ sign ad-
just the position of doors
relative to value 0 (set
position) in the closing
direction, the rest — in
the opening direction
0.
F5
***
Accurate setting of the end position
ofclosing (LC)
F6
***
Accurate setting the shutdown position of
the SE input and/or slow speed (LS). It is
performed if the setting P5–F7 or P5–F9 is
enabled (on)
