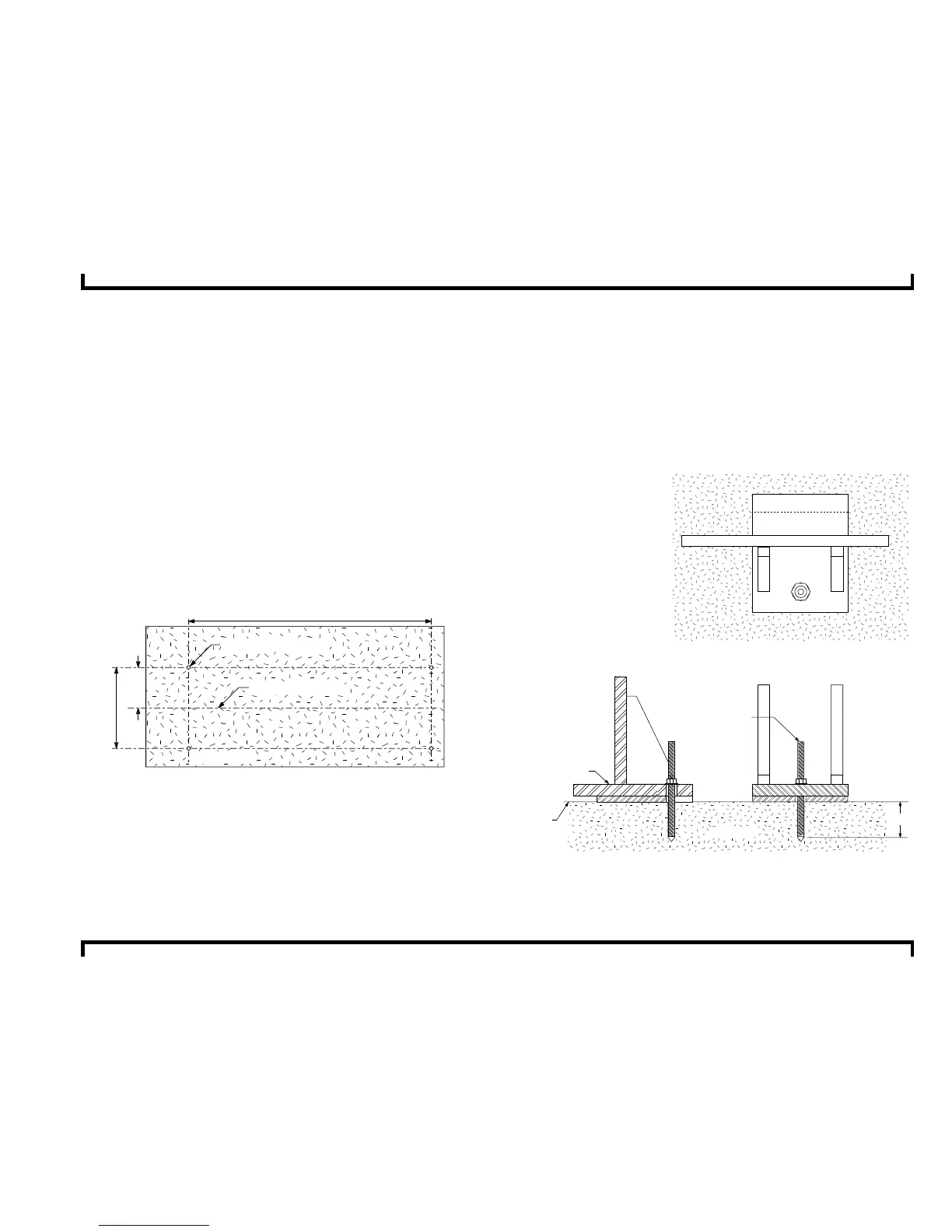

Drilled Holes with Anchor Rods and Adhesive Mounting Method
To maintain machine reliability, extend tool life, and remain level over an extended period the Pega 367 must be anchored in
place on an adequate floor or foundation.
At a minimum the floor must consist of a single, homogeneous slab, level to within 0.032"/ft², and capable of supporting 3.5
tons/ft². It is the purchaser’s responsibility to determine that the floor meets these minimum requirements.
This machine mounting method should be used only if the floor is of such quality that it will support the weight of the machine
with the anchor J-bolts used only for maintaining the location of the machine.
Please note the following:
! The Anchor Rods are not supplied with the Pega 367 and
must be ordered seperatley.
! The anchor holes should be filled with adhesive after the
machine is placed on the floor.
! See special note page 19.
