Pega 367 with Fanuc 04PC User Pre-installation Guide ©Amada America, Inc.
Print Date 03/07/2001 Revision 4.0 This document available on the World Wide Web at http://www.amada.com Page 33 of 35

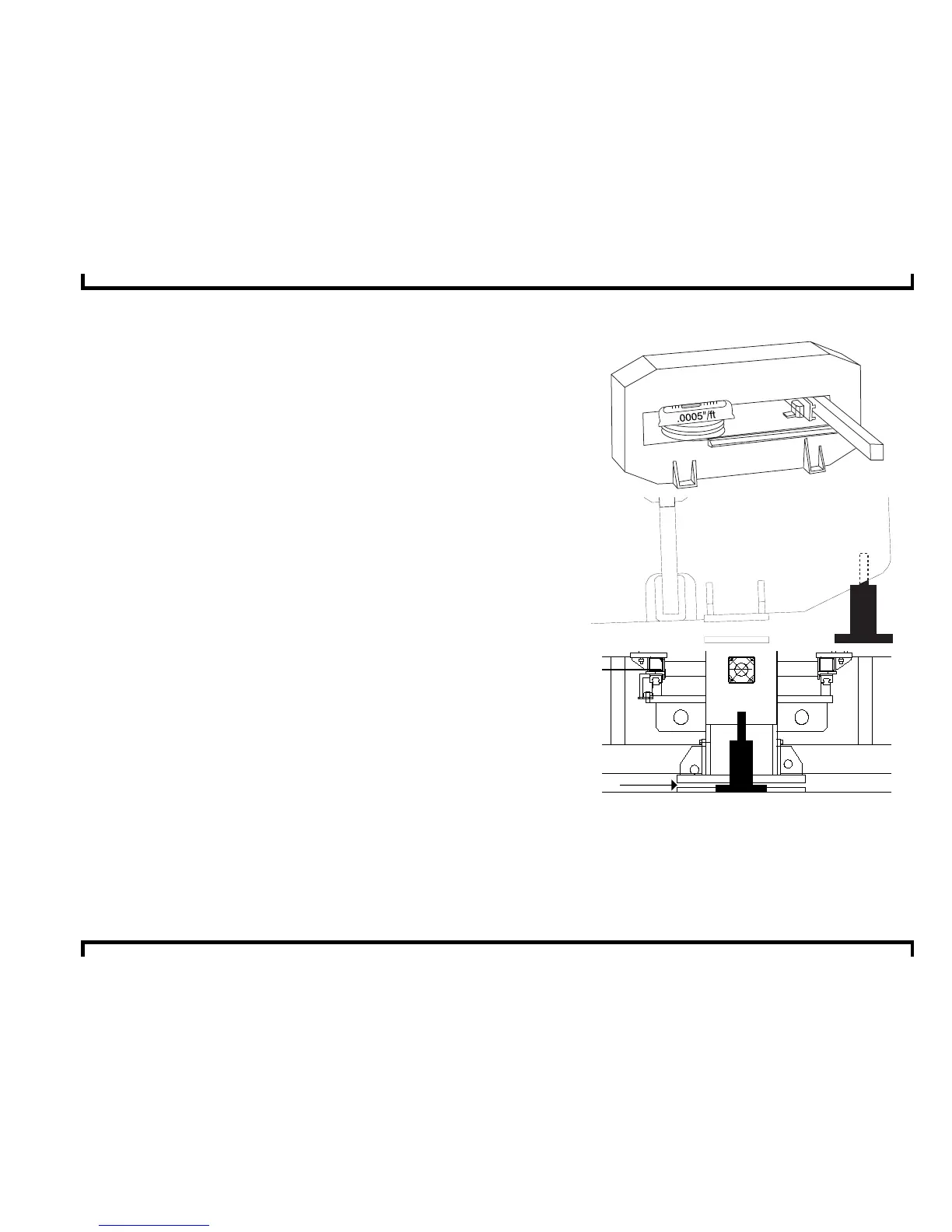

Leveling Procedure
1. Determine the high end of machine frame by placing the spirit
level on the turret to measure the level of the machine frame in
the y-axis.
2. Use the bottle jack to lift the low end of the machine frame.
3. With the turret end of the machine frame slightly higher than the
carriage end. Shim beneath both machine feet and the base
plates until the machine frame measures near level on the y-axis.
Shim Equaly Both Sides
Bottle
Jack
4. Center the bottle jack under the carriage end of the machine
frame.
5. Lift the machine frame until all weight is off the machine feet at
the carriage end of the machine frame. Lift the machine frame as
little as possible to take the weight off the base plates.
Remove weight
of machine from
base plates
Bottle
Jack
To Next Page
