15. With all of the machine feet setting on the shims and base plates
place the spirit level on the turret to measure and note the level of
the machine frame in the y-axis.

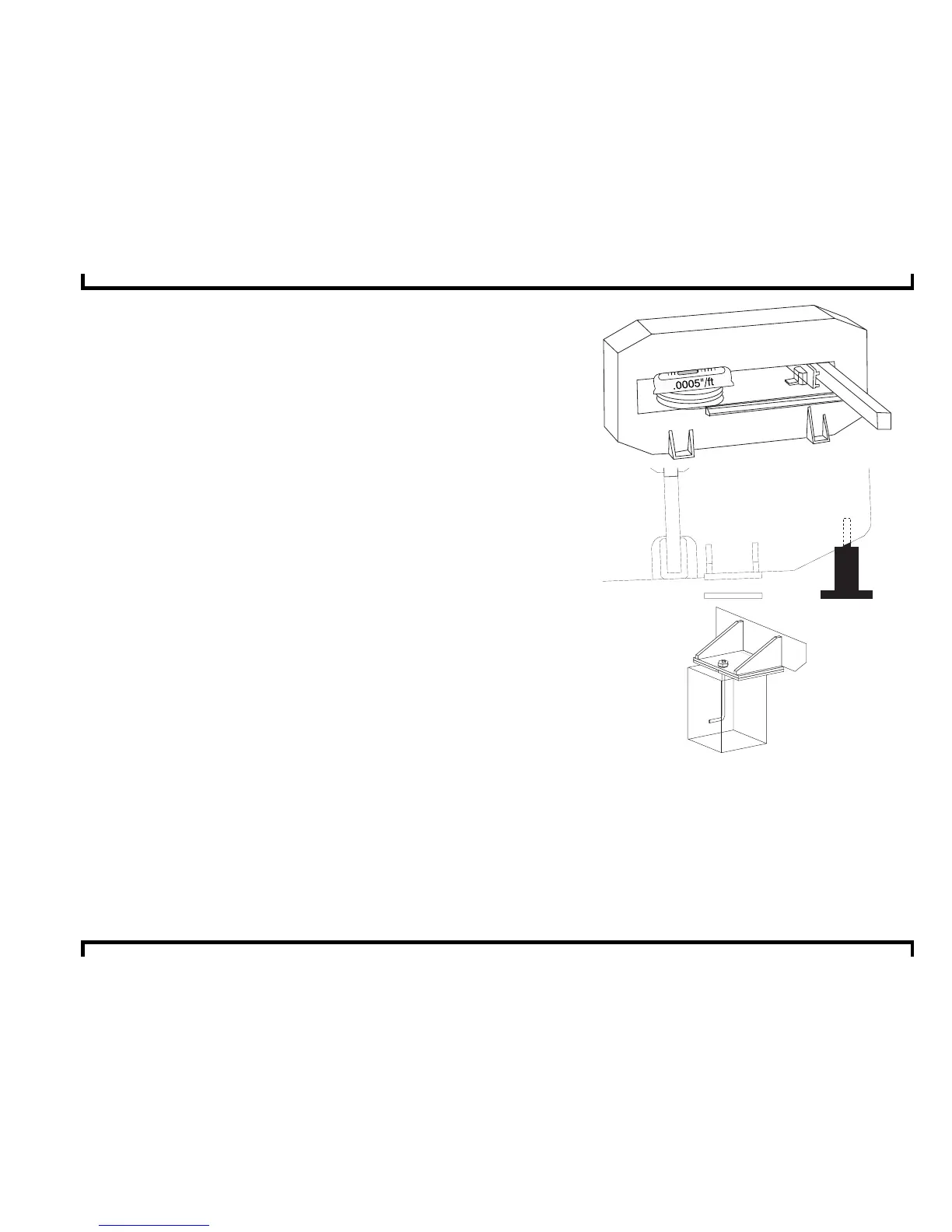

16. Using the bottle jack lift the low end of the machine frame and
shim equally under both machine feet to level the machine frame
in the y-axis.
17. Repeat steps 15 to 16 until the machine frame measures level to
0.0005"/ft in the y-axis then continue.
Shim Equaly Both Sides
Bottle
Jack
18. Run the machine using the rocking test G-code to determine that
the machine frame is leveled adequately. Should excessive
movement of the machine frame be noticed check for the
conditions discussed in Floor Condition Crowned and Floor
Condition Sloped
19. Tighten the anchor bolt nuts to prevent the machine frame from
moving when in use. Monitor the machine level while tightening
the anchor bolts to assure the machine level is not changed.
