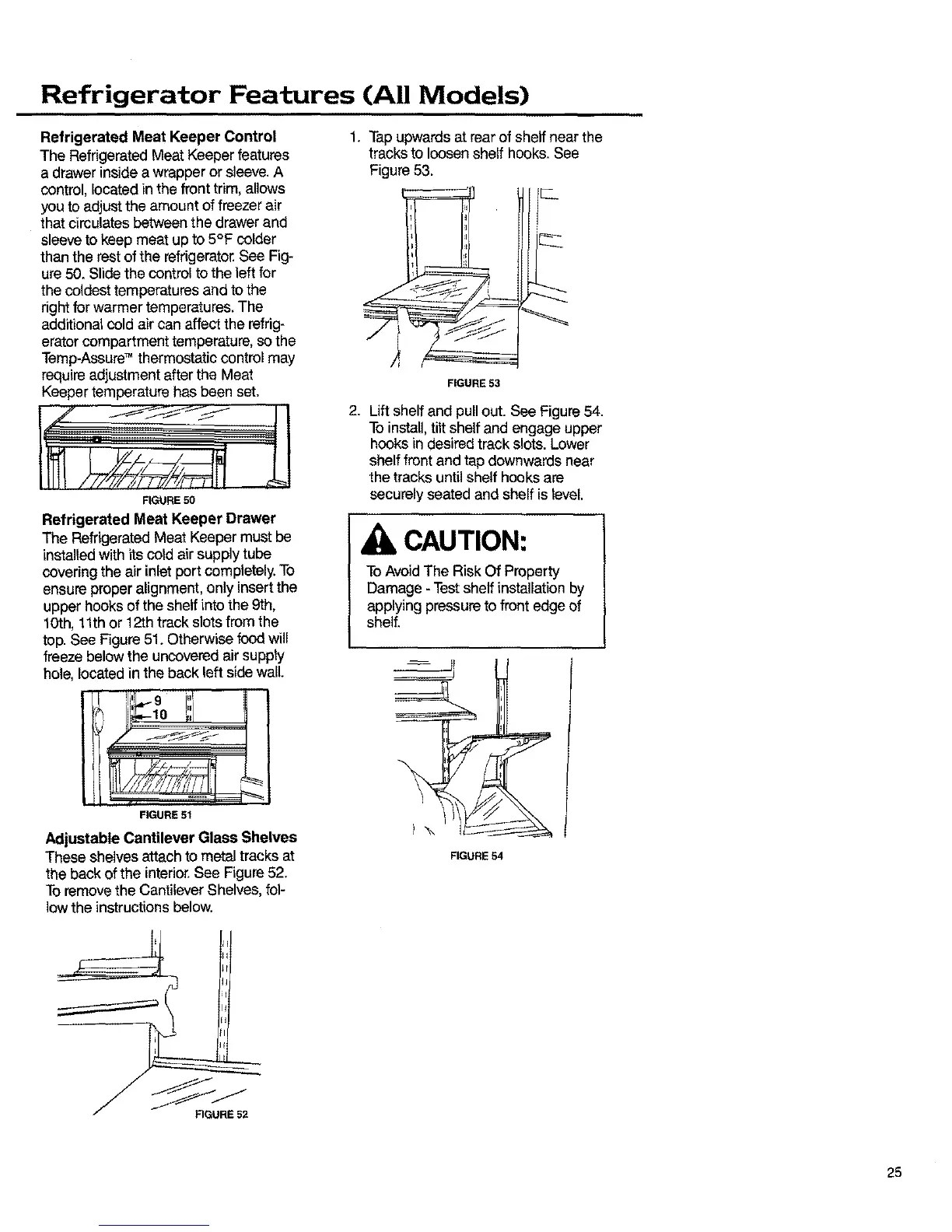

Refrigerator Features (All Models)
Refrigerated Meat Keeper Control
The RefrigeratedMeat Keeper features
a drawer insidea wrapper orsleeve. A
control,located inthe front trim,allows
youto adjustthe amount of freezer air
thatcirculates between the drawer and
sleeve tokeep meat upto 5°F colder
than the restofthe refrigerator.See Fig-
ure50. Slidethecontrolto the left for
the coldesttemperaturesand tothe
rightfor warmer temperatures,The
additional cold air can affect the refrig-
eratorcompartmenttemperature, so the
Ternp-AssureTM thermostaticcontrolmay
requireadjustment after the Meat
Keeper temperature has been set.
FIGURE 50
Refrigerated Meat Keeper Drawer
The Refrigerated Meat Keeper must be
installedwithitscold air supply tube
covering the air inlet port completely.To
ensureproperalignment, only insert the
upper hooks of the shelf into the 9th,
10th, 11thor 12th track slotsfrom the
top. See Figure51. Otherwise food will
freeze below the uncoveredair supply
hole, located in the back left side wall.
I 10 !.
It! , II
FIGURE 51
Adjustable Cantilever Glass Shelves
These shelves attach to metal tracks at
the back of the interior,See Figure52.
To removethe Cantilever Shelves,fol-
low the instructionsbelow.
Jl
_r
li
II
/ FIGURE 52
1. Tap upwards at rear of shelf near the
tracksto loosen shelf hooks, See
Figure 53.
F__
FIGURE 53
2. Lift shelf and pullout. See Figure 54.
Toinstall, tilt shelf and engage upper
hooks in desired track slots. Lower
shelf front and tap downwards near
the tracks until shelf hooks are
securely seated and shelf is level
CAUTION:
ToAvoid The Risk Of Property
Damage - Test shelf installation by
applying pressure to front edge of
shelf,
FIGURE 54
25
