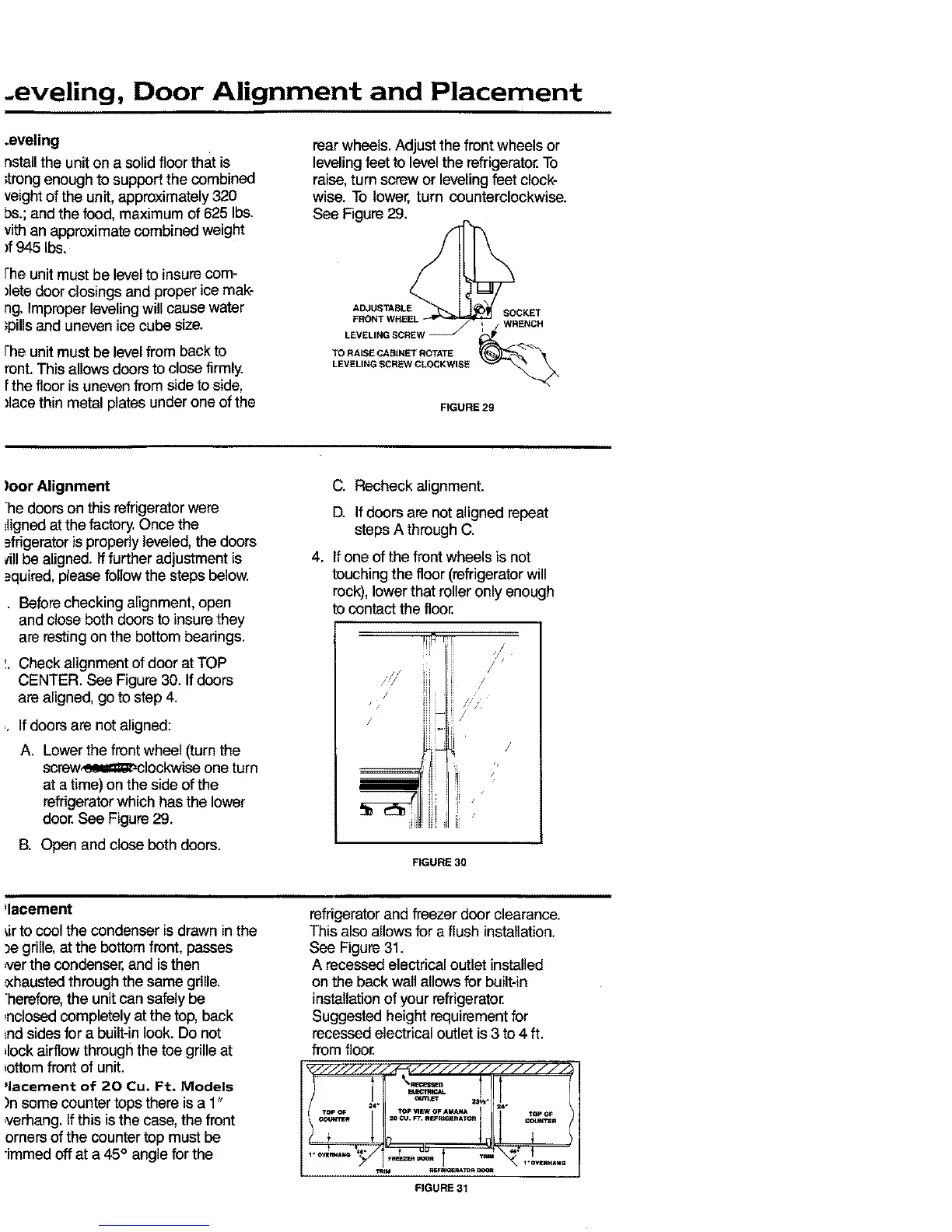

.eveling, Door Alignment and Placement
.eveling
nstall the unit on a solid floor that is
;trongenough to support the combined
veightof the unit, approximately 320
bs.; and the food, maximum of 625 Ibs.
vith an approximate combined weight
_f945 Ibs.
[he unit must be levelto insure com-
)lete door closings and proper ice mak-
ng. Improper leveling will cause water
;pills and uneven ice cube size.
Fheunitmust be levelfrom back to
ront. This allows doors to close firmly.
fthe floor is uneven from side to side,
)lacethin metal plates under one of the
rear wheels.Adjust the front wheels or
leveling feet to level the refrigerator. To
raise, turn screw or leveling feet clock-
wise. To lower, turn counterclockwise.
See Figure 29.
SOCKET
WRF-NCH
1/0 RAISE CABINET ROTATE
LEVELING SCREW CLOCKWISE
FIGURE 29
)oor Alignment
he doors on thisrefrigerator were
digned atthe factory. Once the
_=frigeratorisproperlyleveled, the doors
_illbe aligned. Iffurther adjustmentis
.=quired,please followthe stepsbelow.
• Before checking alignment, open
and close both doors to insurethey
are resting on the bottom bearings.
'.. Check alignment of door at TOP
CENTER. See Figure 30. If doors
are aligned, go to step 4.
• If doors are not aligned:
A• Lower the front wheel (turn the
screw_e_=|=r_clockwise one turn
at a time) on the side of the
refrigerator which has the lower
door. See Figure 29.
B. Open and close both doors.
C• Recheck alignment.
D. Ifdoors are not aligned repeat
steps A through C.
4. If one of the front wheels is not
touching the floor (refrigerator will
rock), lower that roller only enough
to contact the floor.
j /
/ //_/ •
// ///
/
/
'ii
/ •
FIGURE 30
qacement
_irto cool the condenser isdrawn inthe
_e grille, at the bottom front, passes
,ver the condenser, and isthen
.,xhaustedthrough the same grille.
herefore, the unit can safely be
_nclosedcompletely at the top, back
_ndsides for a built-in look. Do not
,lock airflow through the toe grille at
_ottomfront of unit.
qacement of 20 Cu. Ft. Models
)n some counter tops there is a 1"
,verhang.Ifthis is the case, the front
orners of the counter top must be
•immed off at a 45° angle for the
refrigerator and freezer door clearance.
This also allows for a flush installation.
See Figure 31.
A recessed electrical outlet installed
on the back wall allows for built-in
installationof your refrigerator.
Suggested height requirement for
recessed electrical outlet is 3 to 4 ft.
from floor.
.JjJJjJJ.TJJJ J J.
FIGU RE 31
