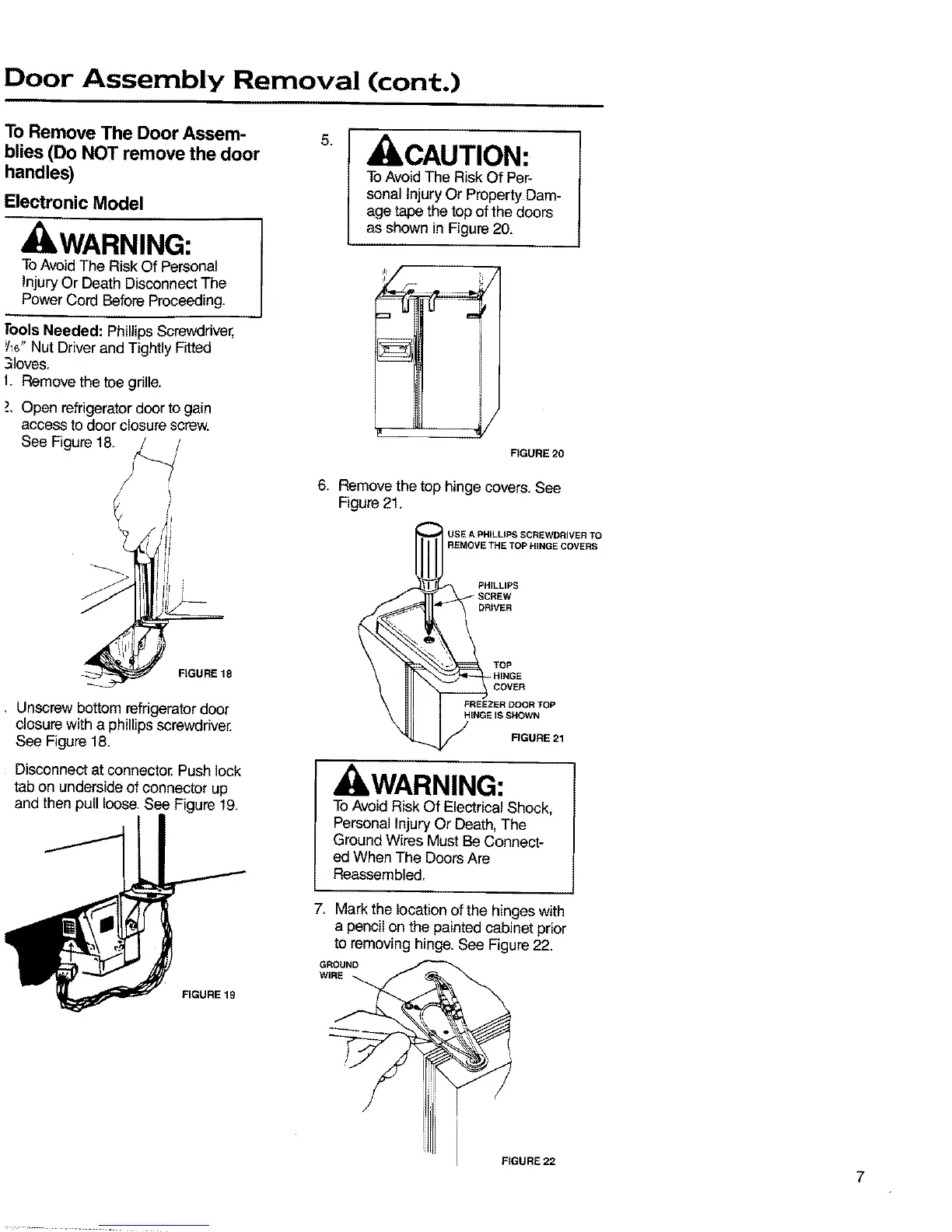

Door Assembly Removal (cont.)
To Remove The Door Assem-
blies (Do NOT remove the door
handles)
Electronic Model
WARNING:
ToAvoid The Risk Of Personal
Injury Or Death Disconnect The
Power Cord Before Proceeding.
tools Needed: Phillips Screwdriver,
_s" Nut Driver and Tightly Fitted
3loves,
1. Remove the toe griUe.
-_,Open refrigerator door togain
access to door closure screw.
See Figure 18.
5_
CAUTION:
ToAvoid The Risk Of Per-
sonal injury Or Property Dam-
age tape the top of the doors
as shown in Figure 20.
_ il
FtGtIRE 20
6, Remove the top hinge covers. See
Figure 21.
USE A PHILLIPS SCREWDRIVER TO
REMOVE THE TOP HINGE COVERS
PHILLIPS
DRIVER
FIGURE 18
• Unscrew bottom refrigerator door
closure with a phillips screwdriver.
See Figure 18.
Disconnect at connector. Push lock
tab on underside of connector up
and then pull loose. See Figure 19.
FIGURE 19
TOP
-= HINGE
COVER
FREEZER DOOR TDP
HINGE IS SHOWN
FIGURE 21
WARNING:
ToAvoid Risk Of Electrical Shock,
Personal Injury Or Death, The
Ground Wires Must Be Connect-
ed When The Doors Are
Reassembled,
7. Mark the location of the hinges with
a pencil on the paintedcabinet prior
to removing hinge. See Figure 22.
GROUND
WIRE
FIGURE 22
7
