7
A

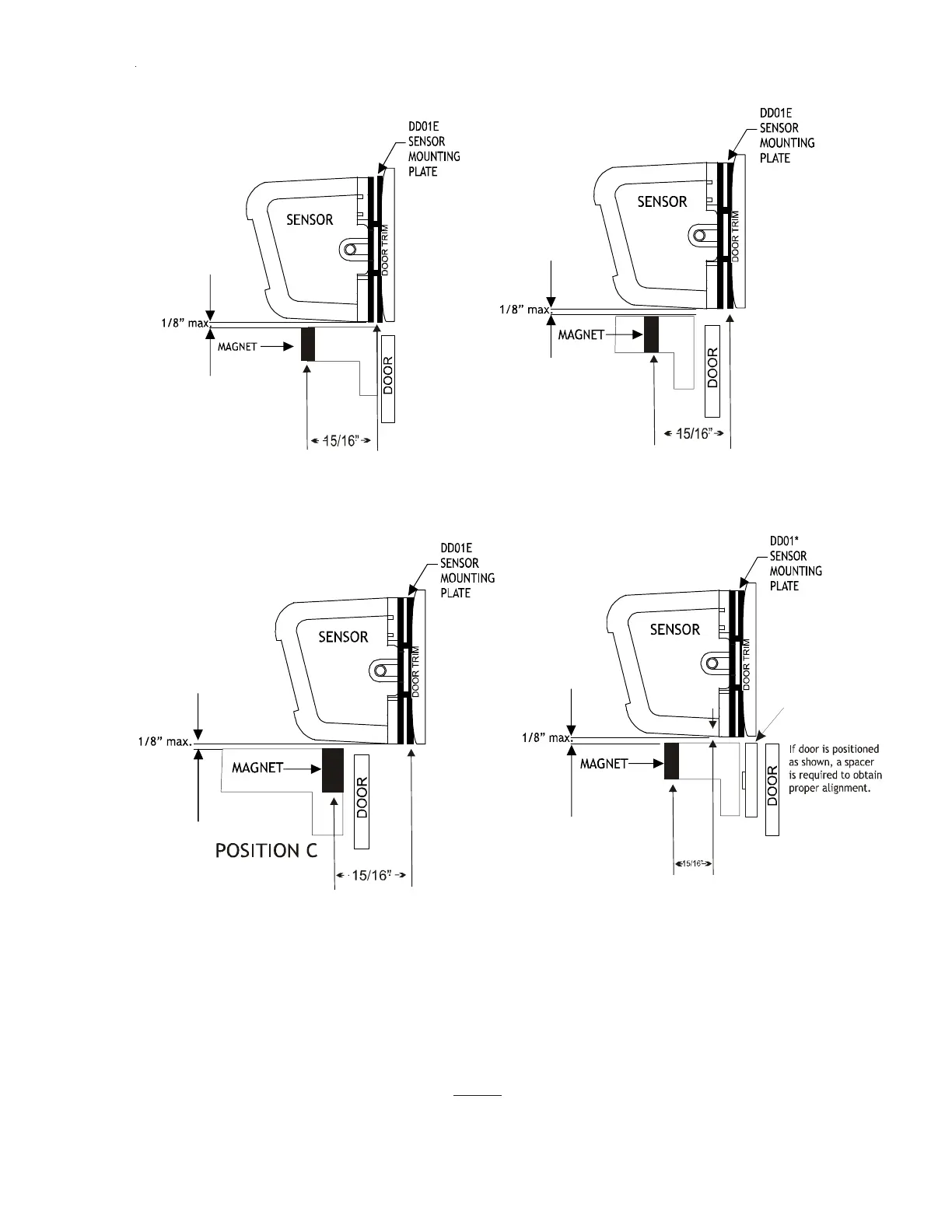

BOVE SHOWS MAGNET 15/16” FROM THE SENSOR MOUNTING PLATE IN DIFFERENT SLOT POSITIONS
Place magnet in Position A
in instances when the door
and frame align.
CONSTRUCTION STYLE 1
POSITION A
CONSTRUCTION STYLE 2
Place magnet in Position B
in instances when the door
extends into the room
beyond the door frame.
POSITION B
CONSTRUCTION STYLE 3
Place magnet in Position C
in instances when the door
extends into the room
beyond the door frame.
POSITION A
Spacers
(Two (2) 1/4” spacers
are included in kit)
CONSTRUCTION STYLE 4
Place magnet in Position A
in instances when the door
frame extends into the room
beyond the door.
NOTE: Two (2) 1/4” spacers are provided in this kit for instances where the door is recessed behind the door trim.
See Construction style 4 above.
There is a line on the bottom of the DD01E and DD01F to assist in aligning the magnet in the proper bucket location.
Above graphics are for example only. Always measure and place the magnet in the proper slot
to obtain the 15/16” needed between the magnet and the sensor mounting plate on the door frame.
