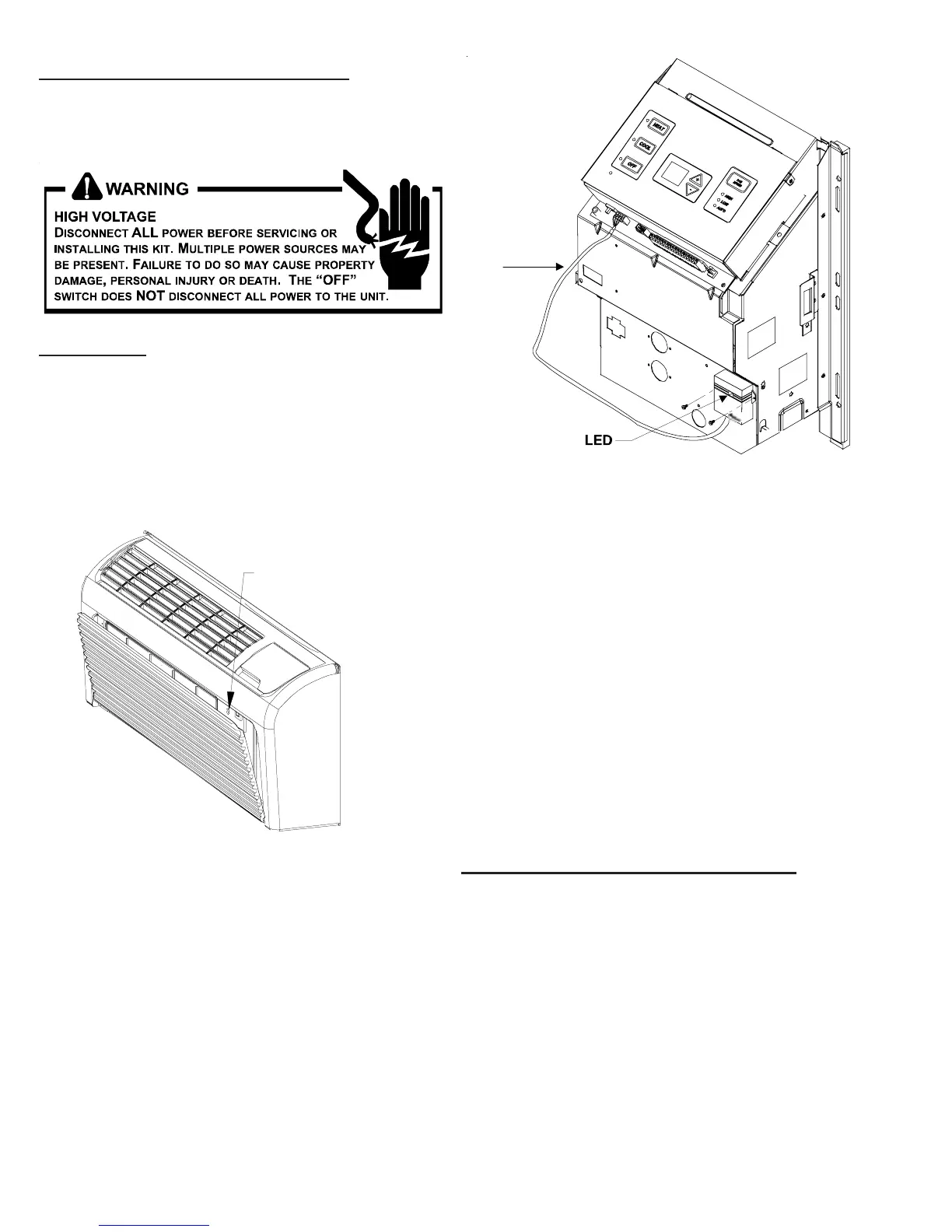

Antenna Installation For DT01* Kit
A DT01* antenna must be installed to the PTAC to allow
operation of either the DS01* remote RF thermostat or a
DD01* combination PIR motion sensor and door switch.
Preparation
1. Disconnect power to the unit by unplugging the power
cord at the wall outlet or subbase, or disconnect power
at the fuse box or circuit breaker.
2. If the cabinet front is screwed to the chassis, remove the
1/4” screw (or screws) located behind the inlet grille. Pull
the inlet grille forward from the top of the grille to access
screw(s).
FRONT MOUNTING
HOLE
3. Remove cabinet front from chassis by tilting the bottom
of the front forward, lifting slightly up and forward.
4. Mount the antenna as high up on the control panel as
possible and as far to the right as possible in a location
that will not interfere with the reinstallation of the PTAC
polymer room front. Mark holes for screw location. Re-
move antenna housing and drill two1/8”holes where
marked.
Wire
DT01* Mounting
5. Remove antenna cable and route cable through opening
in bottom of antenna housing.
6. Mount antenna housing with two screws as shown in
figure. (NOTE: The Amana
®
brand logo should be in the
lower right hand corner).
7. Plug wire harness from antenna into connector on the
control board to the right of the master switch, being
careful not to bend and/or break the wires when you
connect the cable to the PTAC. Gently push into place
with your thumb nails.
8. Restore power to the PTAC unit.
9. Reinstall the polymer room cover.
NOTE: The LED must be oriented at the top of the antenna
housing for proper unit operation.
Thermostat Installation for DS01* Kit
NOTE: A DT01* must be installed in the PTAC unit for the
DS01* to be operable.
Skip these steps if not installing.
1. Select thermostat mounting location about five feet above
the floor, on an inside wall, out of direct sunlight, away
from sources of radiant heat (lamps, fireplaces, heating
and air conditioning equipment, etc.), away from win-
dows or door to the outside, and avoid areas with poor
air circulation. Ensure location is out of the path of foot
traffic where a person might accidentally bump into the
thermostats and damage the device.
