3
.2. Remove thermostat from mounting plate by pulling apart.
3. Place thermostat mounting plate against the wall at de-
sired location and mark placement of mounting holes.
4. If mounting in drywall, tap plastic anchors into wall. For
other surfaces, drill a 3/16” hole.
5. Screw mounting plate to the wall. DO NOT SNAP
THERMOSTAT INTO PLACE UNTIL AFTER BINDING
PROCESS. See Binding Instructions on page 5.
6. Install two (2) AAA batteries (included) into the back of
the thermostat. Terminals are marked “+” and “-” for po-
larity.
Mounting Sensor/Door Magnet Installation for
DD01* Kit
A DT01* must be installed in the PTAC unit for the DD01* to
be operable.
Skip these steps if not installing.
1. Remove motion sensor from mounting plate by pulling
apart.
2. Mount the back plate on the door trim directly above the
door using the enclosed screws. Mount the DD01* as
low as possible on the door frame to be as close to the
moving part of the door as possible with out interfering
with the door opening or closing. Chose a location for
mounting the back plate that will provide good coverage
of the PIR for motion into the room. Make sure that the
DD01* will not interfere with the normal opening and clos-
ing of the door.
DO NOT SNAP MOTION SENSOR IN PLACE UNTIL
AFTER BINDING PROCESS.
See page 5 for Binding Instructions.
DOOR
DOOR TRIM
(CENTER MAGNET WITH 01*)DD
DD01*

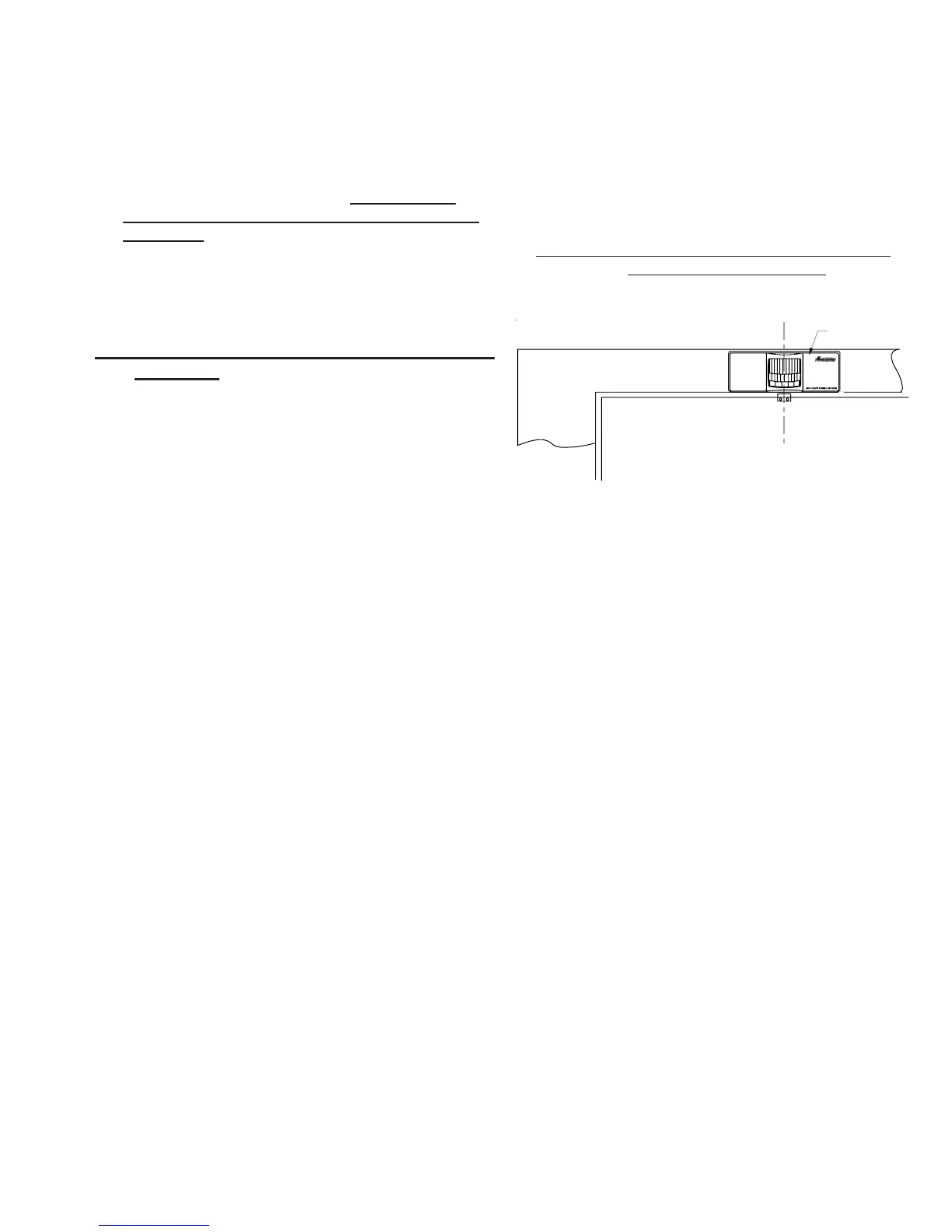

DD01* Mounting
3. Install two (2) AAA batteries (included) into the back of
the thermostat. Terminals are marked “+” and “-” for po-
larity.
To Next Page
