Door Magnet Installation
Mount the door magnet holder on the front of the door where it will be as close as possible to the bottom of the motion
sensor but no more then 1/8" from the bottom center of the motion sensor (DD01*) when the door is closed.
Select the correct slot in the magnet holder (there are three slots) to obtain 1/2" from back of sensor mounting plate to the
center of the magnet. (If you can easily slide a business card between the magnet and the DD01* sensor, unit is properly
placed vertically.)
Screw in place with the 2 screws provided. Open and close the door to make sure that the magnet holder and motion
sensor will not interfere with normal opening and closing of the door.

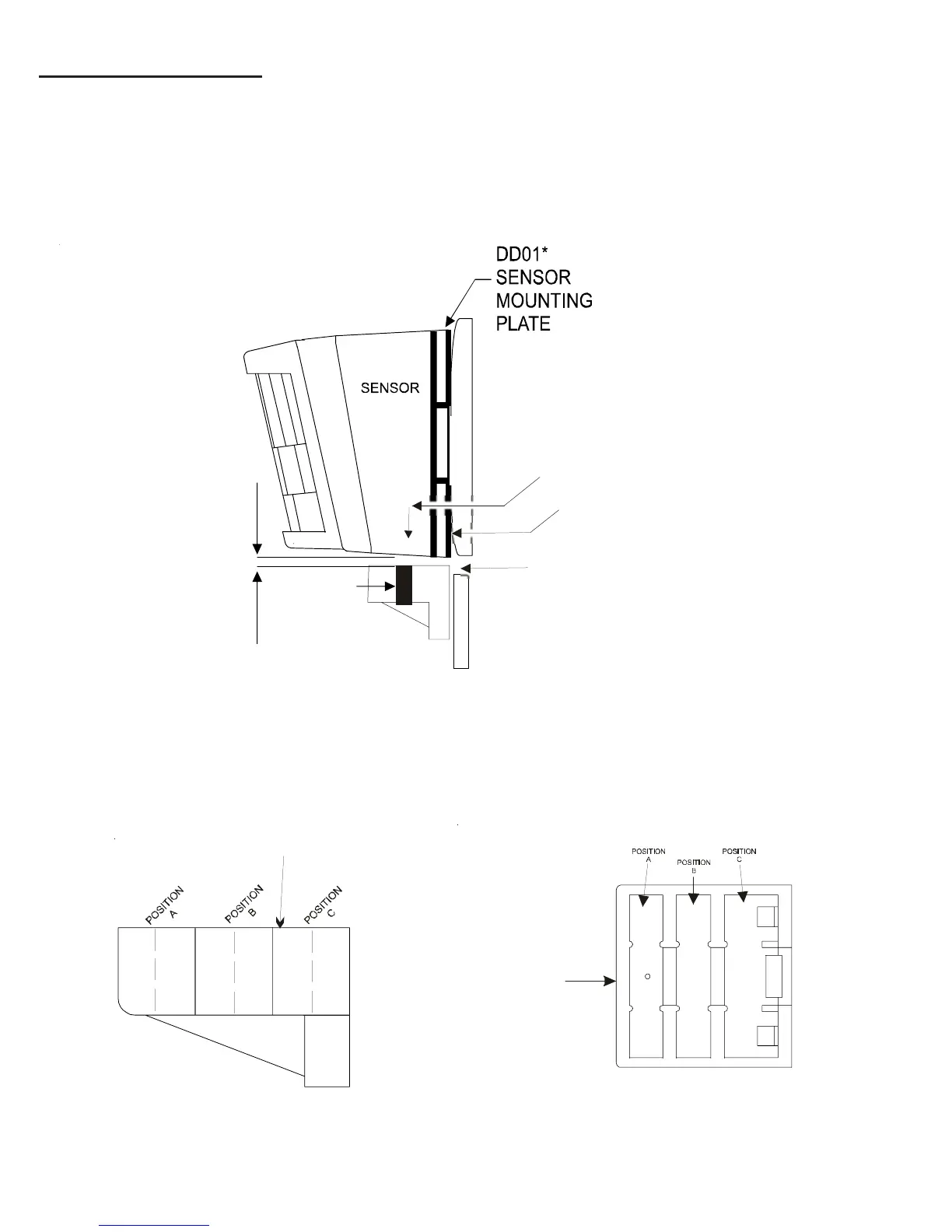

DOOR TRIM
MAGNET
DOOR
1/8” max.
THE SPACE FROM THE TOP OF
THE MAGNET HOLDER AND THE BOTTOM
OF THE 01*
CANNOT BE MORE THAN 1/8”.
The ideal spacing allows a business card to be easily placed
between the D 01* sensor and the magnet holder.
DD
D
MAGNET MUST BE ½”
FROM THE SENSOR
MOUNTING PLATE
MAGNET HOLDER MAY EXTEND
ABOVE THE DOOR
(OR THE DD01* MAY EXTEND BELOW
THE DOOR FRAME)
TO ENSURE THE MAGNET IS NO MORE
THAN 1/8” FROM THE
BOTTOM CENTER OF THE SENSOR
MAGNET SLOTS
MAGNET HOLDER
TOP VIEW
INSTALL THE MAGNET IN
THE CORRECT SLOT.
½” FROM BACK EDGE OF
SENSOR MOUNTING PLATE
TO BACK OF MAGNET.
MAGNET HOLDER TOP
SIDE
VIEW
