Select one of the three slots that places the magnet ½” from the sensor mounting plate on the door frame. See expamples
below. The door frame and door usually will not align. Place holder on the door and select the slot that places the magnet
as close as possible to the ½” depth from the back of the DD01* mounting plate.
Above graphics are for example only. Always measure and place the magnet in the proper slot
to obtain the 1/2” needed between the magnet and the sensor mounting plate on the door frame.
IMPORTANT NOTE: When properly installed, the rectangular indentation on the bottom of
the DD01* will line up with the center of the magnet.
Choose magnet position A, B or C to align the magnet 1/2” from the back of the DD01A*.
1/8” max.
DOOR TRIM
MAGNET
POSITION A
Place magnet in Position A
in instances when the door trim
extends beyond the door.
DOOR TRIM
MAGNET
DOOR
1/8” max.
POSITION C
Place magnet in Position C
in instances when the door extends
beyond the door trim.
DOOR TRIM
MAGNET
1/8” max.
POSITION B
Place magnet in Position B
in instances when the door
and frame align.

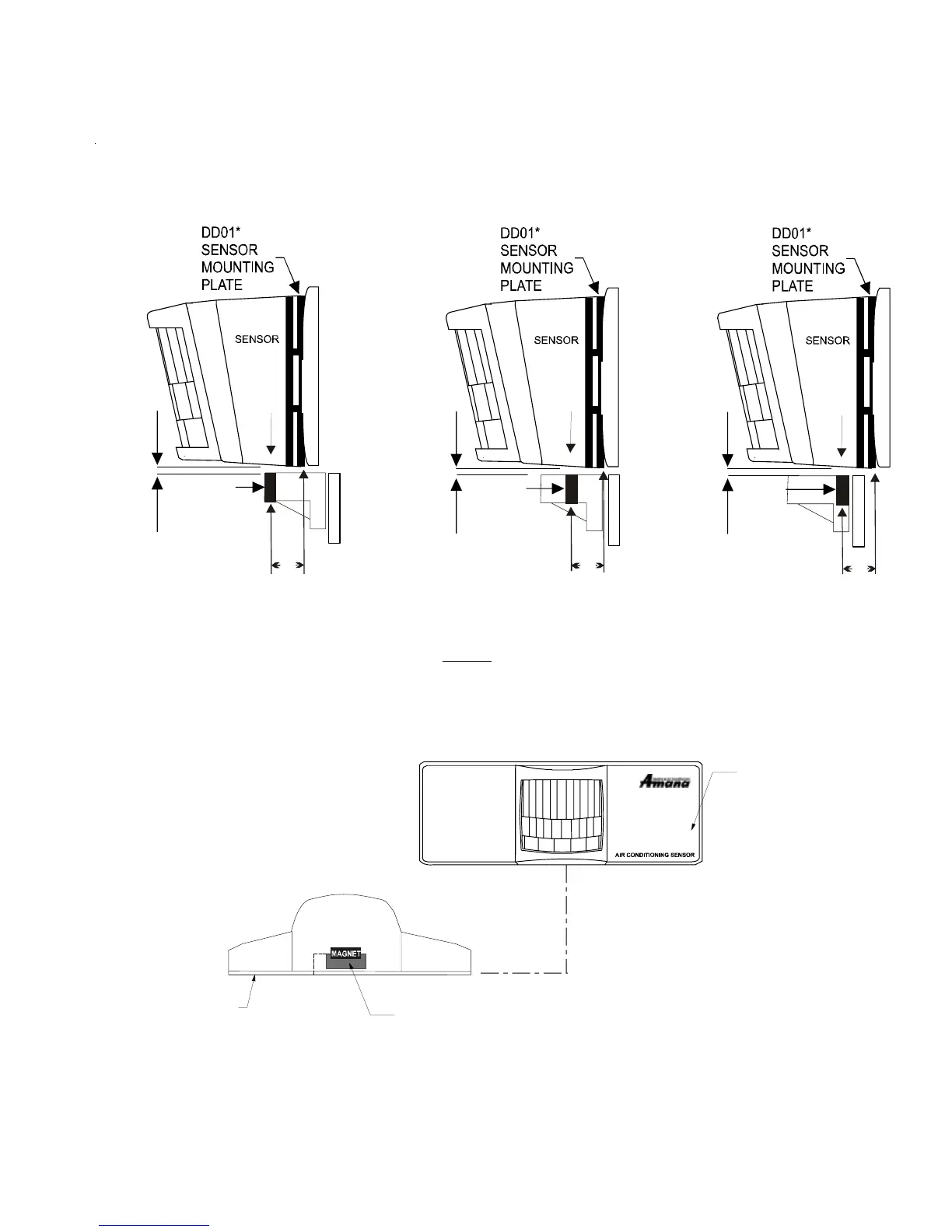

ABOVE SHOWS MAGNET ½” FROM THE SENSOR MOUNTING PLATE IN DIFFERENT SLOT POSITIONS
1/2”
DOOR
DOOR
1/2”
1/2”
DD01*
RECTANGULAR INDENTATION
ON BOTTOM OF DD01*
½”
CENTER OF MAGNET
(IN HOLDER)
MUST BE ½” FROM THE
SENSOR MOUNTING PLATE
SENSOR
MOUNTING
PLATE

Amana DT01 Series Specifications

General

Brand	Amana
Model	DT01 Series
Category	Thermostat
Language	English
