5 Installation at Site
23 of 124
Amarex KRT
WARNING
Incorrect positioning/placing down
Personal injury and damage to property!
▷ Position the pump set vertically with the motor on top.
▷ Use appropriate means to secure the pump set against tilting and tipping over.
▷ Refer to the weights given in the data sheet/on the name plate.
903.03
411.03
FD

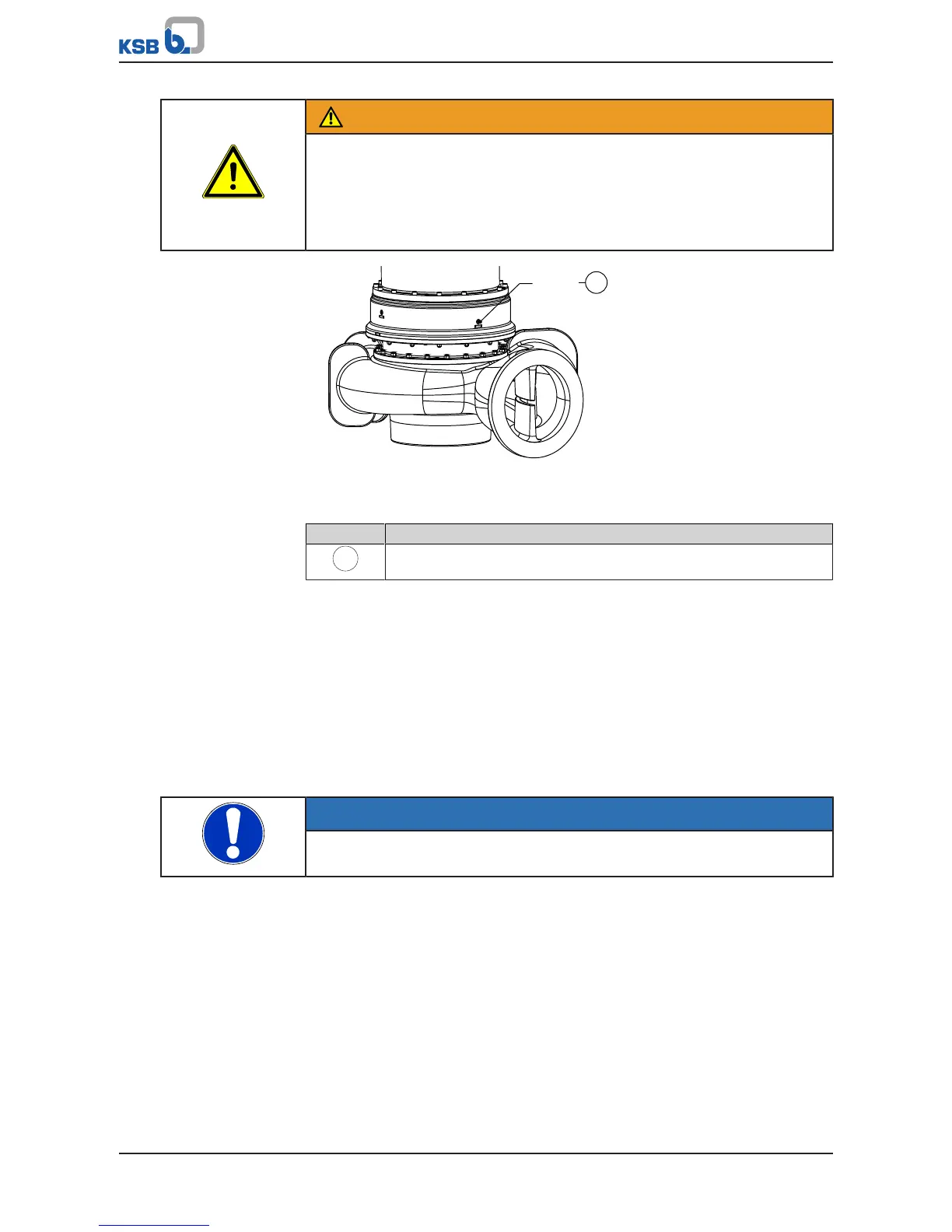

Fig.6: Checking the lubricant level
Table7: Key to the symbols and codes
Symbol Description
FD
Always apply a liquid sealing agent (e.g. Hylomar SQ32M) to sealing
surfaces marked with this symbol.
ü Signs of oil leakage have been detected.
1. Place the pump set in a vertical position. (ðSection3.2.2,Page14)
2. Secure the pump set against tipping over.
3. Unscrew and remove screw plug 903.03 with joint ring 411.03.
4. Check the lubricant level.
ð If the lubricant level reaches the opening, fit and tighten screw plug 903.03
with joint ring 411.03 again.
ð If the lubricant level is below the opening, top up the lubricant.
(ðSection7.2.3.1.4,Page66)
5. Fit and tighten screw plug 903.03 with a new joint ring 411.03.
NOTE
If more than 1.59 quart [1.5 l] of lubricant are required for topping up, this suggests
a defect of the mechanical seals.
