Amarex KRT series - Stationary Dry Installation

5 Installation at Site
34 of 124
Amarex KRT
5.3.1.6 Installing the pump set
NOTE
Make sure the pump set with the pre-assembled claw can easily be guided over the
mounting bracket, threaded onto the guide cables and lowered down. If required,
alter the position of the crane during installation.
1. Guide the pump set over the suspension bracket/mounting bracket, thread it
onto the guide cables/rails and slowly lower it down.
The pump set attaches itself to base elbow 72-1.
2. Attach the lifting chain/rope to hook 59-18 at the mounting bracket.
5.3.2 Stationary dry installation
5.3.2.1 Preparing the pump set
Attaching the lifting chain/ lifting rope
571***
900.04
2)1)

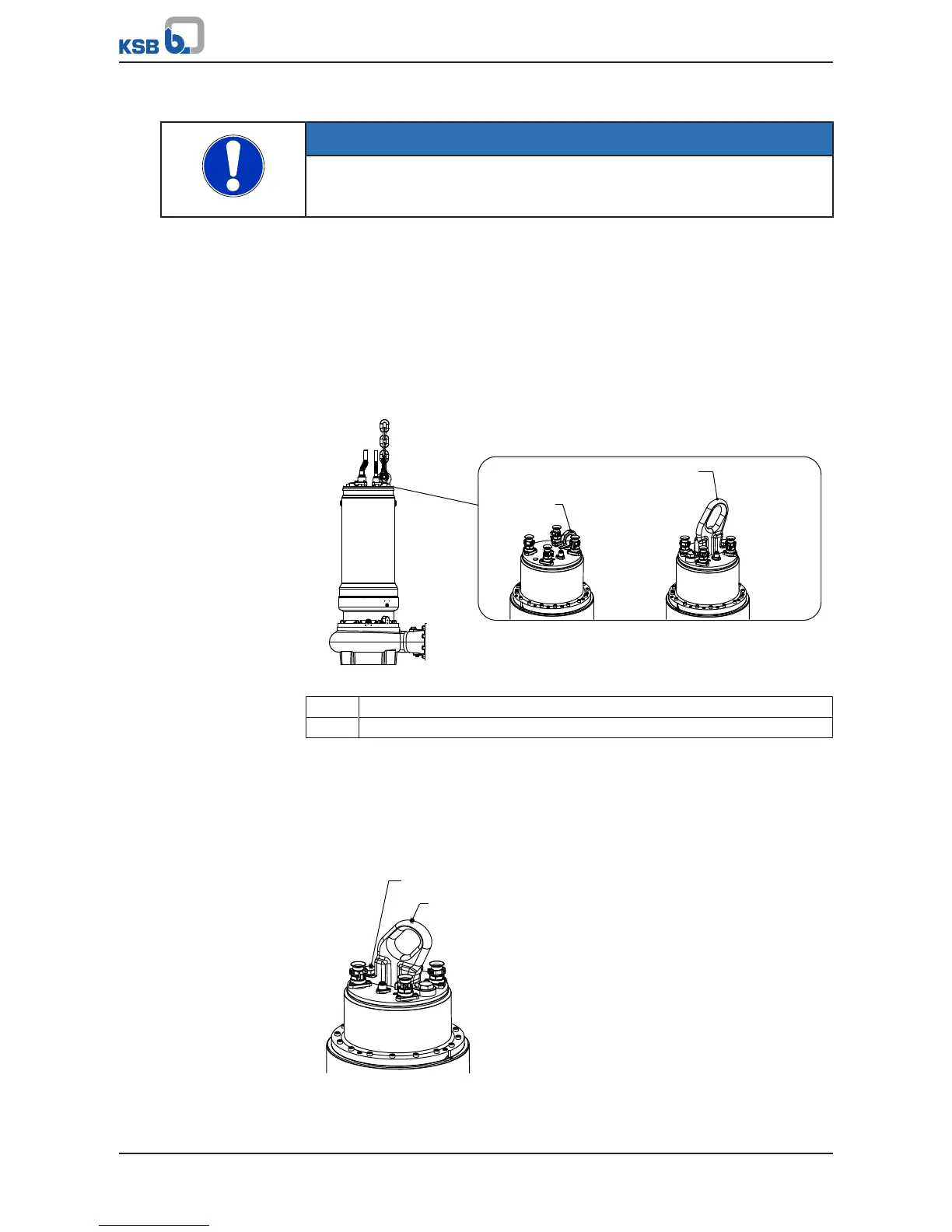

Fig.21: Attaching the lifting chain/ lifting rope – dry installation
1 Standard
2 Optional bail
***: Specific sizes only
1. Attach the lifting chain or lifting rope to the pump set at eyebolt 900.04 on the
discharge nozzle side or at bail 571.
ð This attachment point achieves a horizontal position of the pump feet, which
allows the pump set to be placed down.
Types of attachment:
571
901.26
Fig.22: Bail
