5 Installation at Site
33 of 124
Amarex KRT
Attaching the lifting chain/ lifting rope
571***
900.04
900.04
3)2)1)

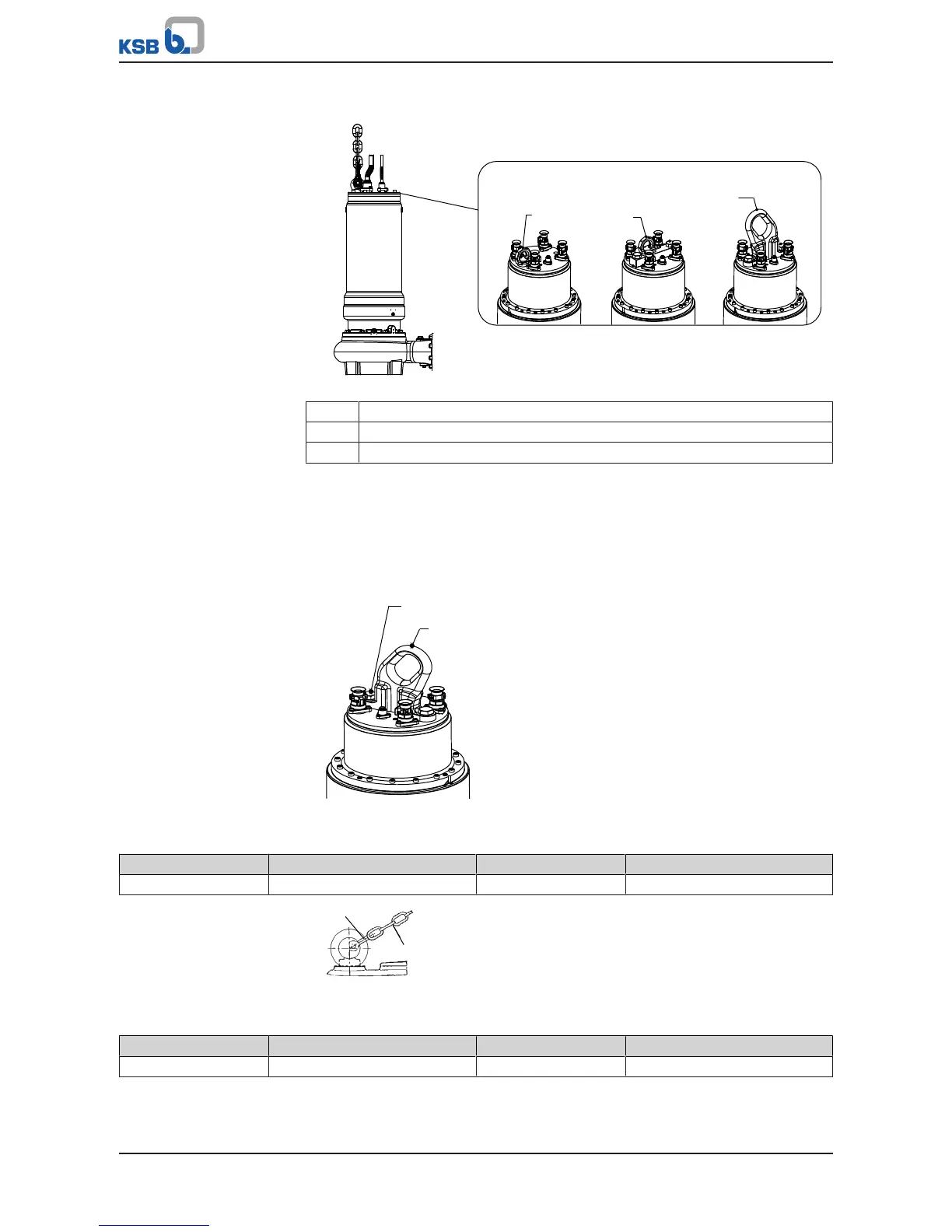

Fig.18: Attaching the lifting chain/ lifting rope – stationary wet installation
1 Standard for guide cable arrangement
2 Standard for guide rail arrangement
3 Optional bail
***: Specific sizes only
1. Attach the lifting chain or lifting rope to the pump set at eyebolt 900.04
opposite the discharge nozzle or at bail 571.
ð This attachment point achieves a forward inclination of the pump set towards
the discharge nozzle, which allows the pump claw to hook onto the base elbow.
Types of attachment:
571
901.26
Fig.19: Bail
Table18: List of components
Part No. Description Part No. Description
571 Bail 901.26 Hexagon head bolt
59-17
885
Fig.20: Chain attached to the eyebolt with a shackle
Table19: List of components
Part No. Description Part No. Description
59-17 Shackle 885 Chain
