Amarex KRT
9.2.2 Top views
Pump sets with cooling
system (installation types K
and D)
903.31
411.31
164.02*
914.05
412.05*
834.02
412.08
834.01
412.07
914.04
900.02*
920.17*
550.04*
903.22*
411.22*
903.07*
411.07*
L
243
L
243
L
243
A
A

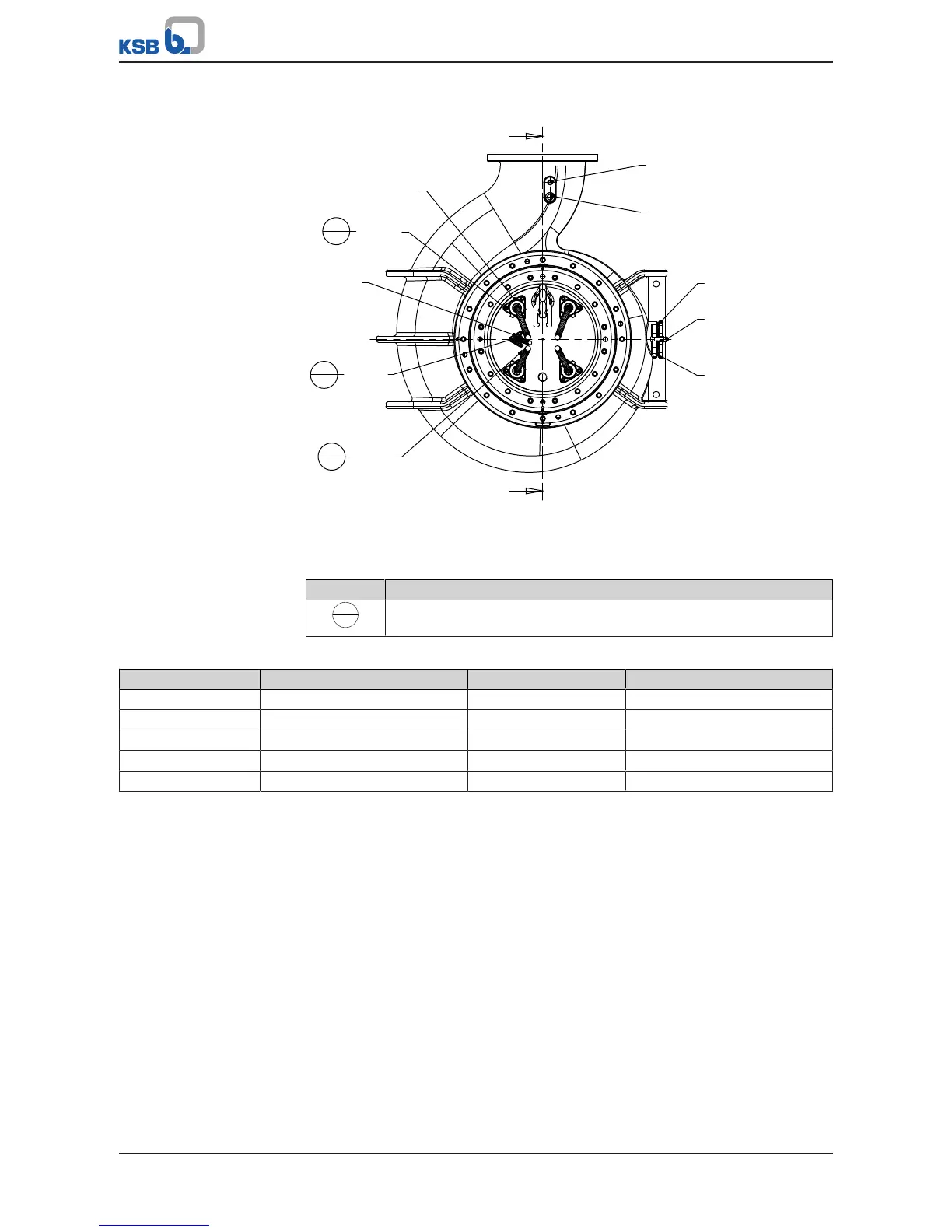

Fig.61: Pump sets with cooling system (installation types K and D)
*: Installation type D only
Table62: Key to the symbols and codes
Symbol Description
L
243
Always secure screwed connections marked with this symbol with
Loctite 243.
Table63: List of components
Part No. Description Part No. Description
164.02 Inspection cover 900.02 Bolt/screw
411.07/.22/.31 Joint ring 903.07/.22/.31 Screw plug
412.05/.07/.08 O-ring 914.04/.05 Hexagon socket head cap screw
550.04 Disc 920.17 Nut
834.01/.02 Cable gland
