Amarex KRT series - Detailed Component Views

9 Related Documents
96 of 124
Amarex KRT
9.2 Detailed views
9.2.1 Side views
Pump sets with cooling
system (installation types K
and D)
903.46
411.46
636.02
81-51*
901.30*
932.30*
903.54
903.37
411.37
903.02
411.02
903.33
411.33
970.20
903.53
970.02
970.22
970.06
970.12
970.05
970.09
970.08
970.21
FD
FD
FD
FD

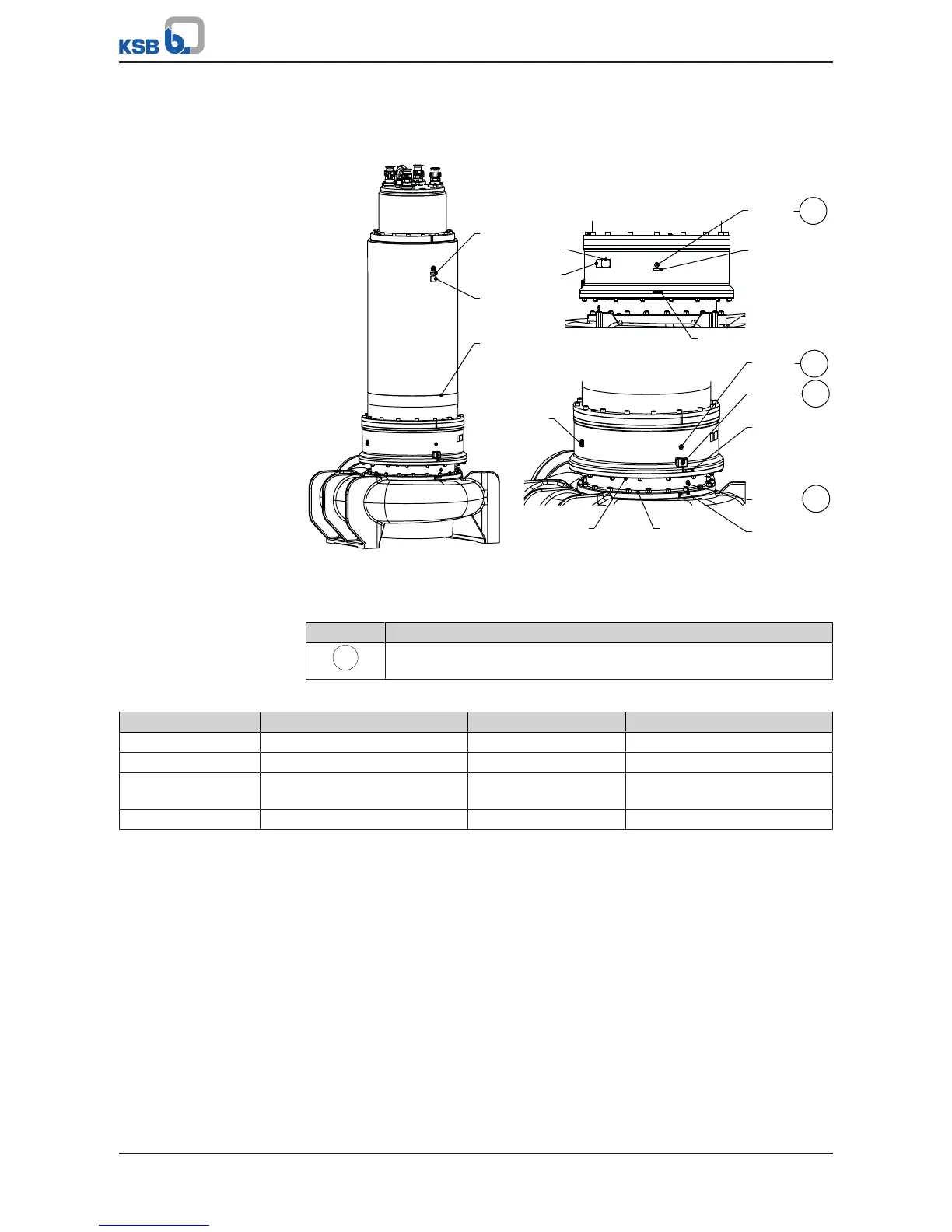

Fig.59: Side views
*: Installation type D only
Table58: Key to the symbols and codes
Symbol Description
FD
Always apply a liquid sealing agent (e.g. Hylomar SQ32M) to sealing
surfaces marked with this symbol.
Table59: List of components
Part No. Description Part No. Description
411.02/.33/.37/.46 Joint ring 903.02/.33/.37/.46/.53/.54 Screw plug
636.02 Lubricating nipple 932.30 Circlip
81-51 Clamping element 970.02/.05/.06/.08/.09/.12
/.20/.21/.22
Label/plate
901.30 Hexagon head bolt
