9.1 General assembly drawings with list of components
9.1.1 Pump sets with cooling system (installation types K and D)
903.01*
411.01*
101
900.04
81-18.03
812
330
914.01
412.01
412.12
412.45
903.34
411.34
66-2
818
80-1
360
412.03
412.02
914.02
412.47
412.46
81-45
411.26
350
412.04
163
412.50
412.15
471.53
412.51
940.02
412.17
550.87
914.87 940.01
412.06
260.01
502
230
902.01
920.01
902.27
920.27
932.32***
23-2
81-92.23
932.02
421.02
512.02
320
500.05
647
421.03
512.03
932.47
550.49
903.52
950.02
932.32
503***
81-29.03***
X
E
F
C
C
901.20
932.20
B
B
D
D
①
A - A
L
243
L
243
L
243
L
243
L
243
FD
FD

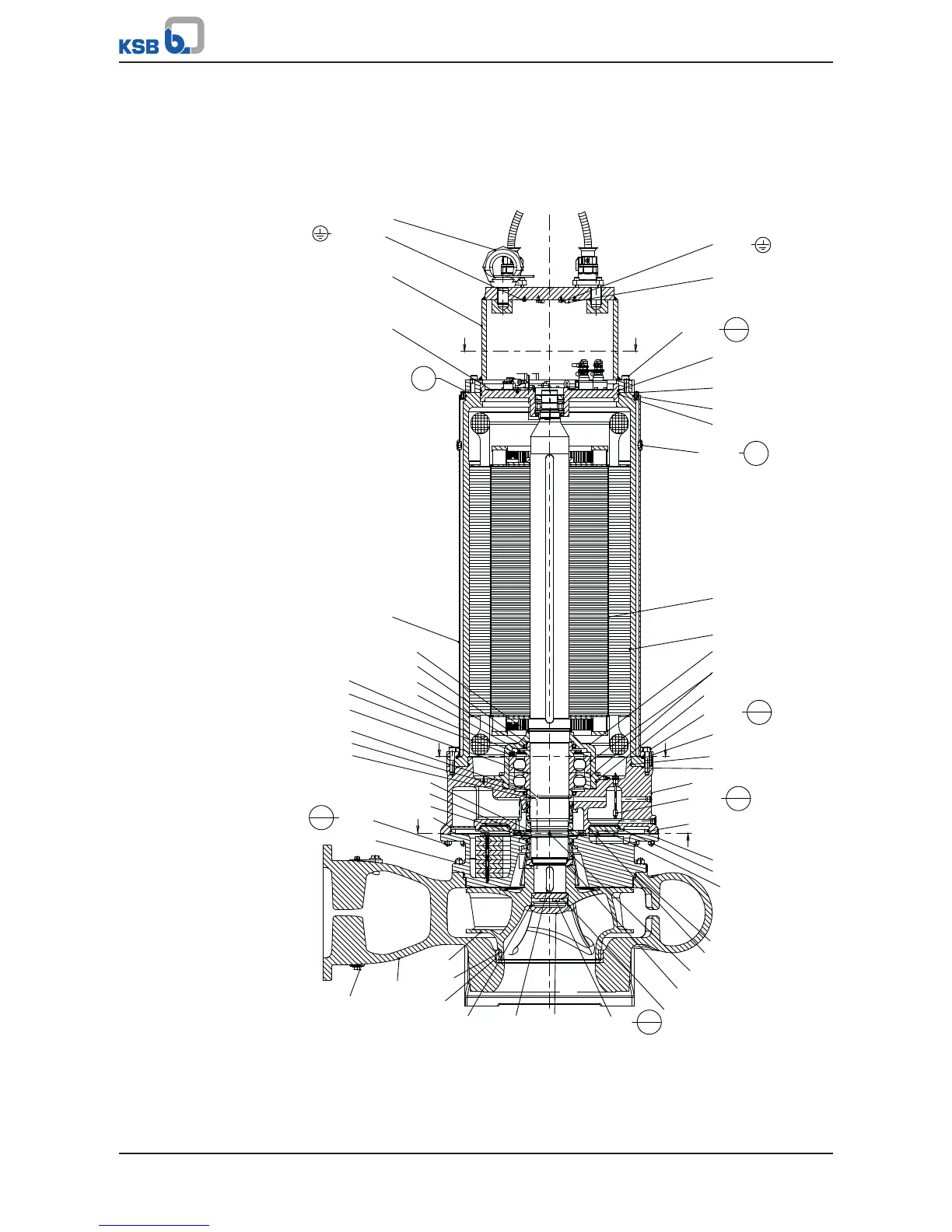

Fig.57: General assembly drawing of a pump set with cooling system
