Amarex KRT series - Page 97

9 Related Documents
97 of 124
Amarex KRT
Pump sets without cooling
system (installation type S)
903.46
411.46
636.02
903.37
411.37
903.02
411.02
903.05
411.05
903.03
411.03
970.04
970.03
970.05
970.12
970.06
970.22
970.02
903.53
903.54
FD
FD
FD
FD
FD

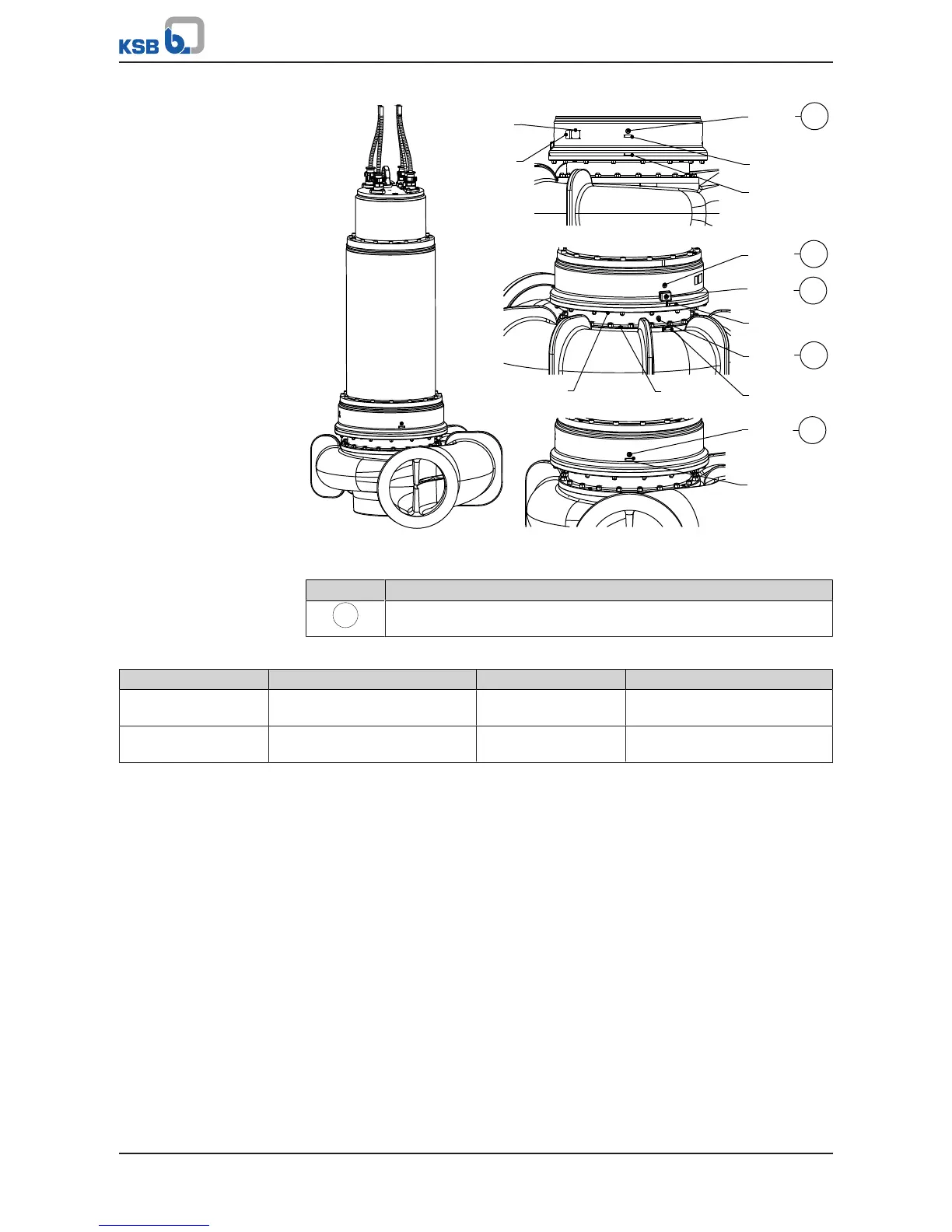

Fig.60: Side views
Table60: Key to the symbols and codes
Symbol Description
FD
Always apply a liquid sealing agent (e.g. Hylomar SQ32M) to sealing
surfaces marked with this symbol.
Table61: List of components
Part No. Description Part No. Description
411.02/.03/.05/.37/.46 Joint ring 903.02/.03/.05/.37/.46/.5
3/.54
Screw plug
636.02 Lubricating nipple 970.02/.03/.04/.05/.06/.1
2/.22
Label/plate
