5.3.2.3.1 Permissible forces and moments at the pump nozzles
The permissible nozzle loads are given in the following table.
F
x
F
z
F
y
F
y
F
z
F
x
F
x
F
z
F
y
M
y
M
x
M
z

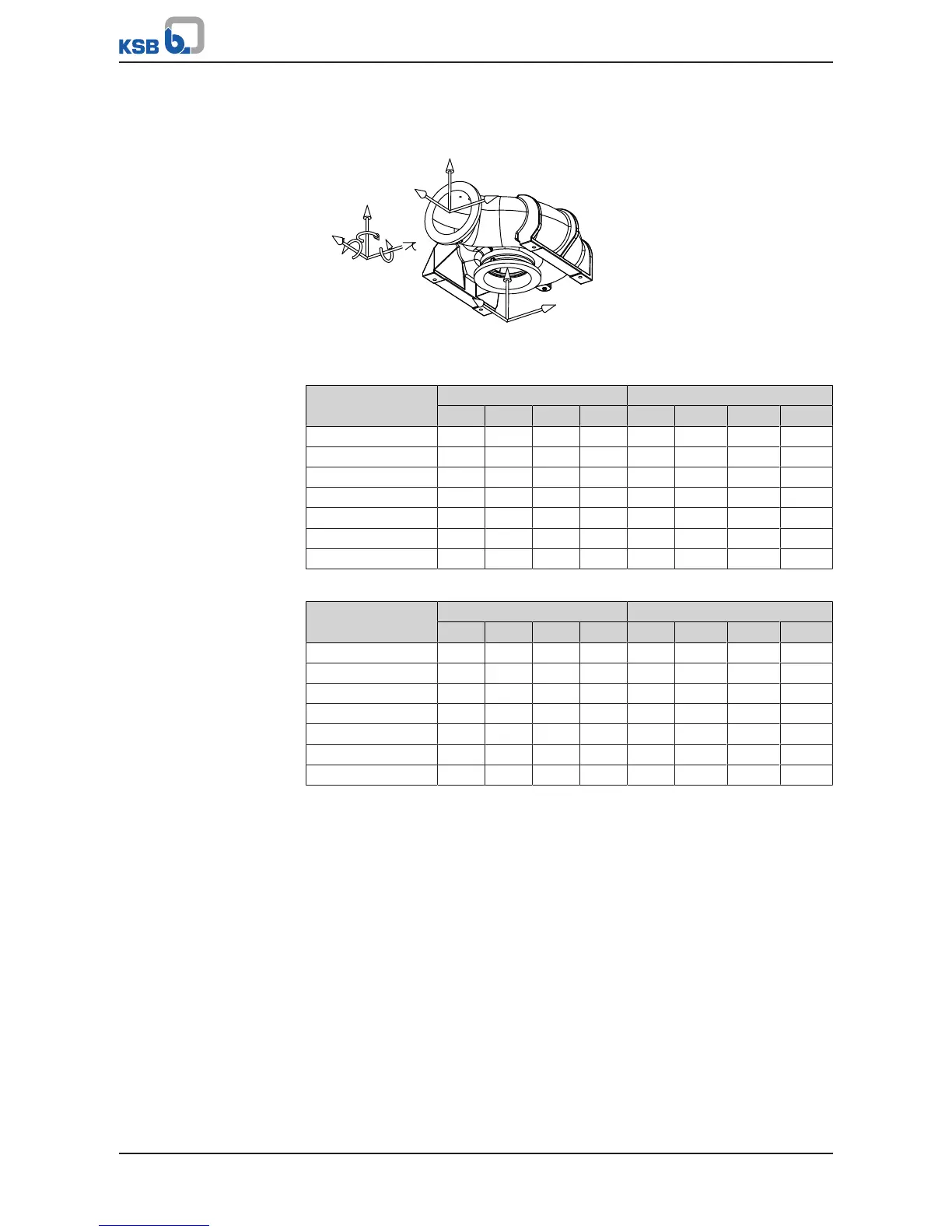

Fig.25: Forces and moments at the pump nozzles
Table22: Forces [lbs] and moments [lbs ft]
Nominal flange
diameter
Forces [lbs] Moments [lbsft]
F
x
F
y
F
z
∑F M
x
M
y
M
z
∑M
200 1356 1221 1515 2363 2383 1687 1943 3520
250 1684 1526 1888 2950 3263 2310 2677 4803
350 2363 2125 2634 4126 5683 4033 4657 8360
400 2702 2430 3007 4714 7113 5060 5830 10487
500 3380 3041 3753 5889 10597 7517 8653 15620
600 4058 3651 4499 7065 14813 10560 12173 21927
700 4702 4318 5087 8275 18847 12613 15400 27353
Table23: Forces [N] and moments [Nm]
Nominal flange
diameter
Forces [N] Moments [Nm]
F
x
F
y
F
z
∑F M
x
M
y
M
z
∑M
200 6000 5400 6700 10450 3250 2300 2650 4800
250 7450 6750 8350 13050 4450 3150 3650 6550
350 10450 9400 11650 18250 7750 5500 6350 11400
400 11950 10750 13300 20850 9700 6900 7950 14300
500 14950 13450 16600 26050 14450 10250 11800 21300
600 17950 16150 19900 31250 20200 14400 16600 29900
700 20800 19100 22500 36600 25700 17200 21000 37300
