Amarex KRT series - Page 76

7 Servicing/Maintenance
76 of 124
Amarex KRT
Table43: Key to the symbols and codes
Symbol Description
L
243
Always secure screwed connections marked with this symbol with
Loctite 243.
1. Unscrew impeller hub cap 260.01 using a special wrench (right-hand thread).
2. Remove O-ring 412.06.
3. Undo (four) hexagon socket head cap screws 914.87. Remove them together
with disc 550.87.
4. Pull off impeller 230 with a special impeller fitting and removal tool.
5. Remove key 940.01.
7.4.3.2.1 Using the special impeller fitting and removal tool
3
2
1

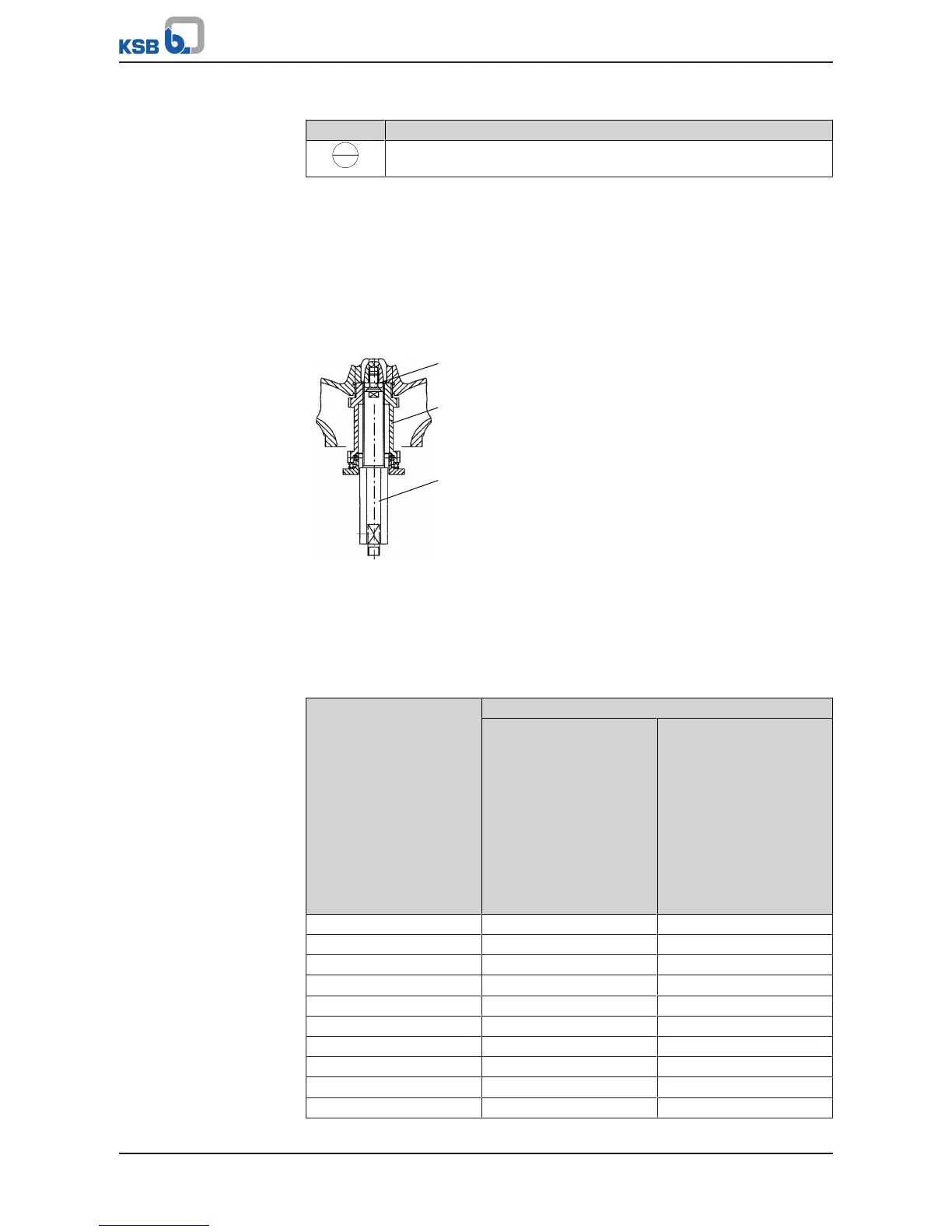

Fig.45: Special impeller fitting and removal tool
1. Screw hexagon head bolt 1 into the shaft end to prevent any damage to the
shaft thread.
2. Screw part 2 into the impeller.
3. Screw fully threaded stud 3 into part 2 and pull off the impeller.
Table44: Special impeller fitting and removal tool
Size Motor
5306
5806
6306
4608
5308
5808
39010
43010
47510
34012
38012
6906
7706
8506
6308
6908
7608
53510
60010
66010
45012
49012
56012
200-631 AV4 AV4
250-630 AV4 AV4
250-632 AV4 AV4
250-900 AV4 AV6
350-632 AV4 AV4
350-633 AV4 AV4
350-636 AV4 AV4
350-710 AV5 AV5
350-713 AV4 AV4
400-632 AV4 AV4
