M32 FLYWHEEL - INSTALLATION & MAINTENANCE MANUAL
4. Use the extension with the 1/4”-20 screw to place a
large washer on each bolt. Use the 1 1/8”
magnetized socket and extension to place and
tighten all three nuts to 150 foot-pounds (210 Nm)..

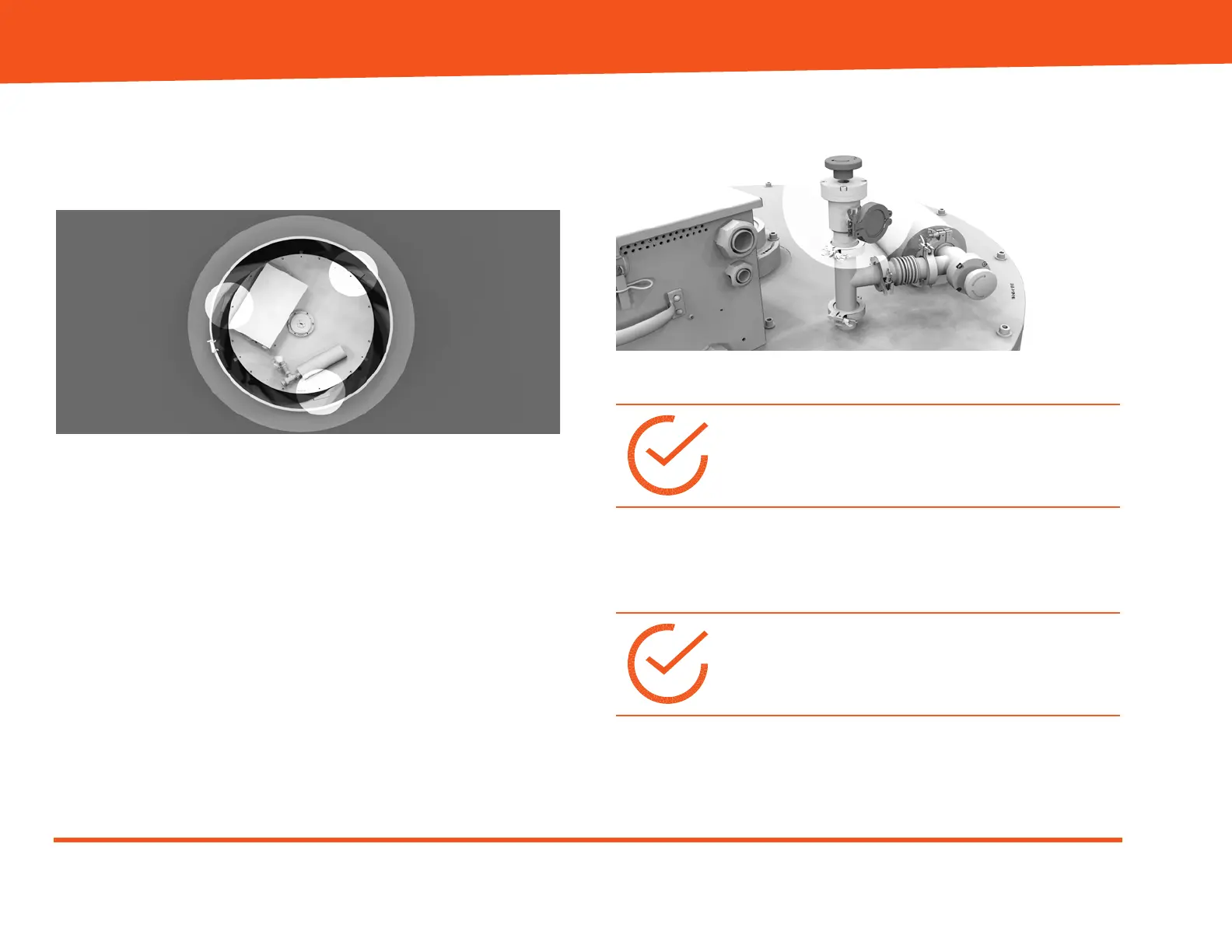

Figure 14: Securing the M32 flywheel in the Capsule
5. Close the vacuum valve, remove the vacuum relief
tool, and then connect a vacuum pump to the
KT40 flange. Start the pump, and then open the
valve (conduit not shown for clarity).
Figure 15: KT40 flange and vacuum valve
6. Follow the instructions provided with your vacuum
system to complete the vacuum pump-down and
the installation of any additional vacuum
accessories.
Note: Your vacuum valve configuration
on your M32 flywheel may vary from that
shown in Figure 15.
Note: If desired, you may save time by
working on the electrical connections
while the vacuum pump is operating.
