Version 1.2 ©Copyright 2019, Ambient LLC. All Rights Reserved. Page 3

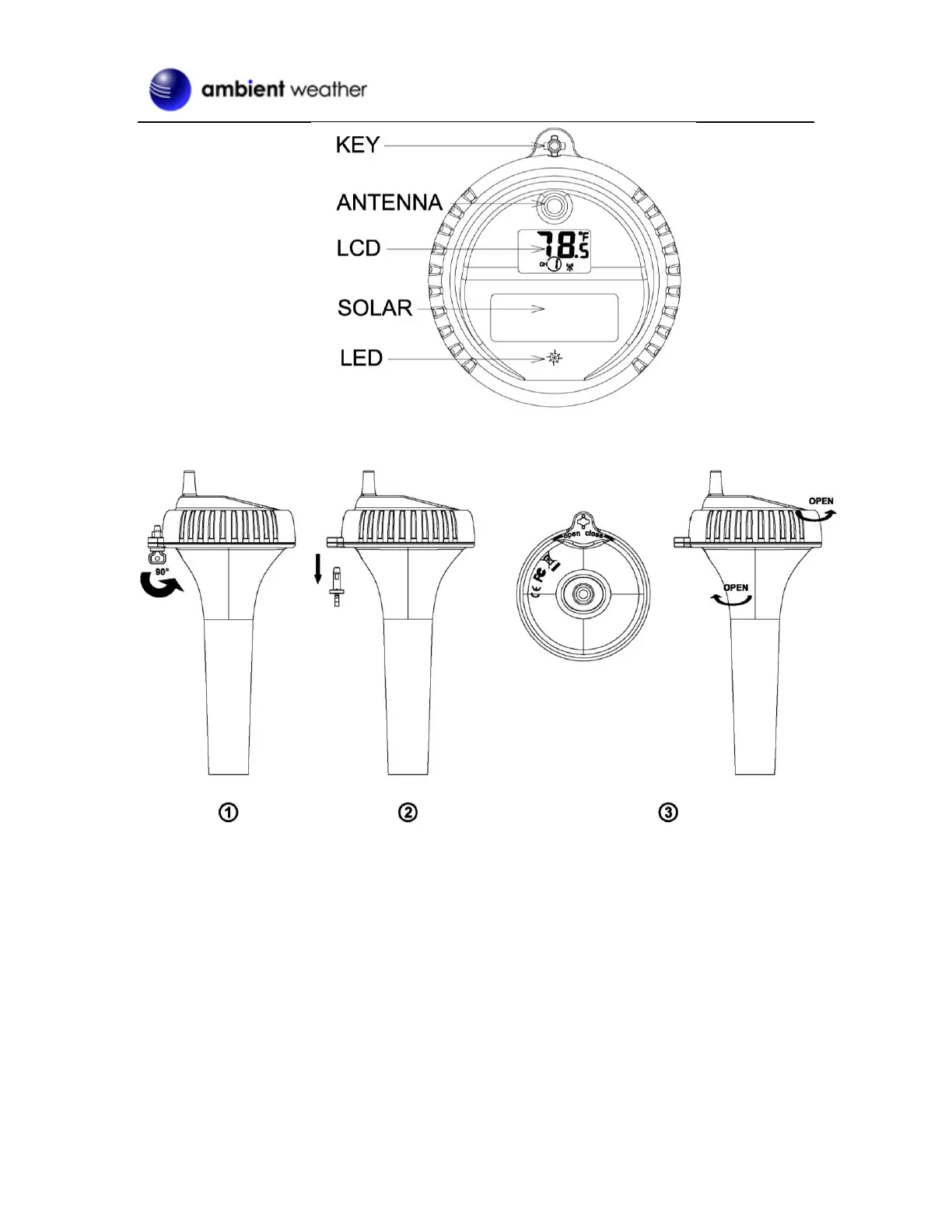

Figure 1
1. To insert the batteries,, (1) Twist the KEY lid to unlock, (2) remove the key, and (3) twist the
main body of the sensor by removing the lid, as shown in Figure 2 .
Figure 2
2. The floating thermometer includes dip switches for assigning channel numbers. BEFORE
inserting the batteries, locate the dip switches on the inside cover of the lid of the transmitter.
Figure 4 displays all four switches in the OFF position (factory default setting).
NOTE: The second generation pool float includes a reset button.
If the display does not power up after inserting the batteries, press the reset button shown in Figure 3.
If your pool float does not include a reset button, cover the solar panel with one hand, remove the
batteries, wait 60 seconds, reinsert the batteries, and uncover the solar panel.
