Version 1.2 ©Copyright 2019, Ambient LLC. All Rights Reserved. Page 5

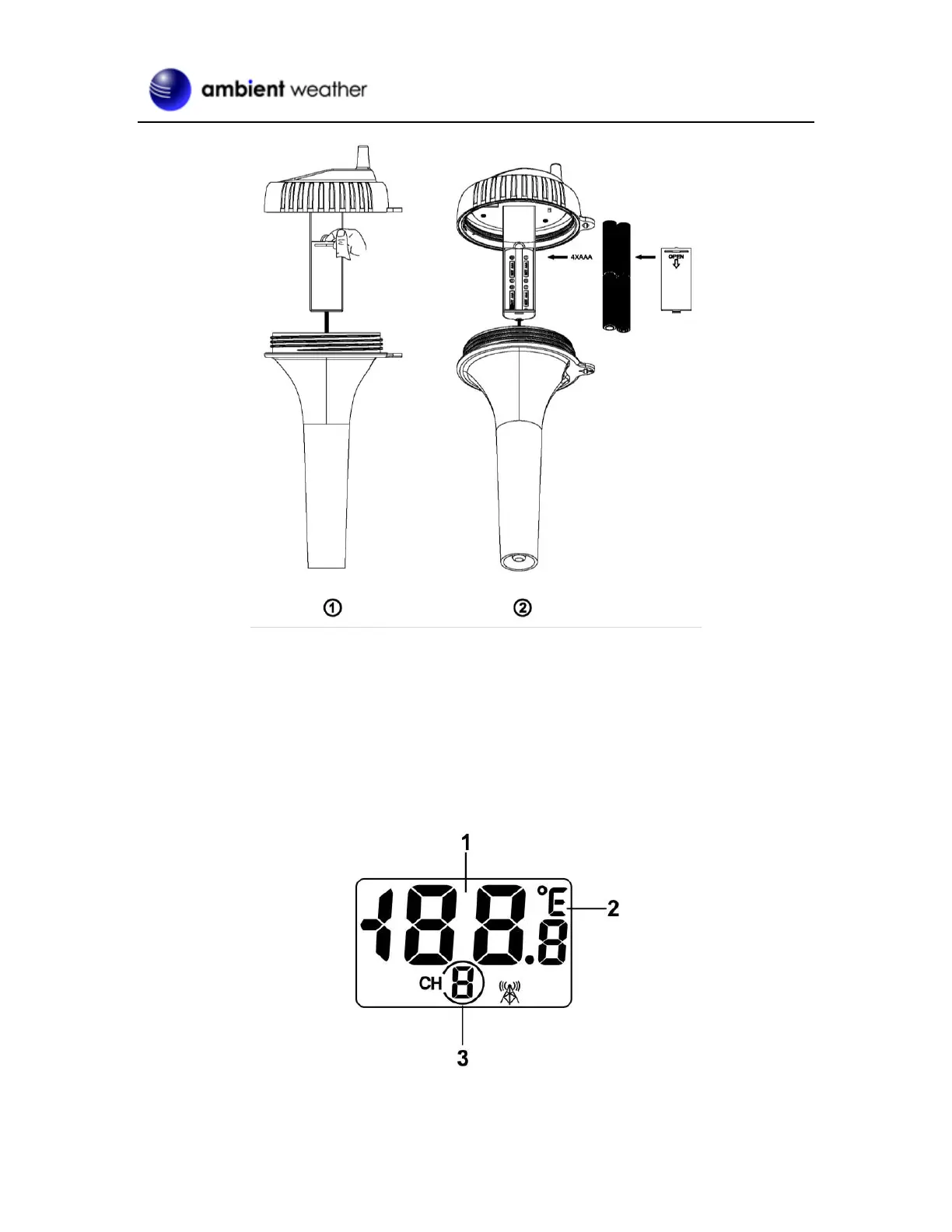

3. Reference Figure 5. Install 4 x AAA batteries.
Figure 5
(1) Open the battery compartment and (2) insert 4 x AAA batteries into the battery compartment,
observing the correct battery polarity.
4. After inserting the batteries, the remote sensor LED indicator will light for 4 seconds, and
then flash once per 60 seconds thereafter. Each time it flashes, the sensor is transmitting data.
5. Verify the correct channel number (CH) and temperature units of measure (°F vs. °C) are on
the display, as shown in Figure 6.
Figure 6
(1) temperature
