Page 10

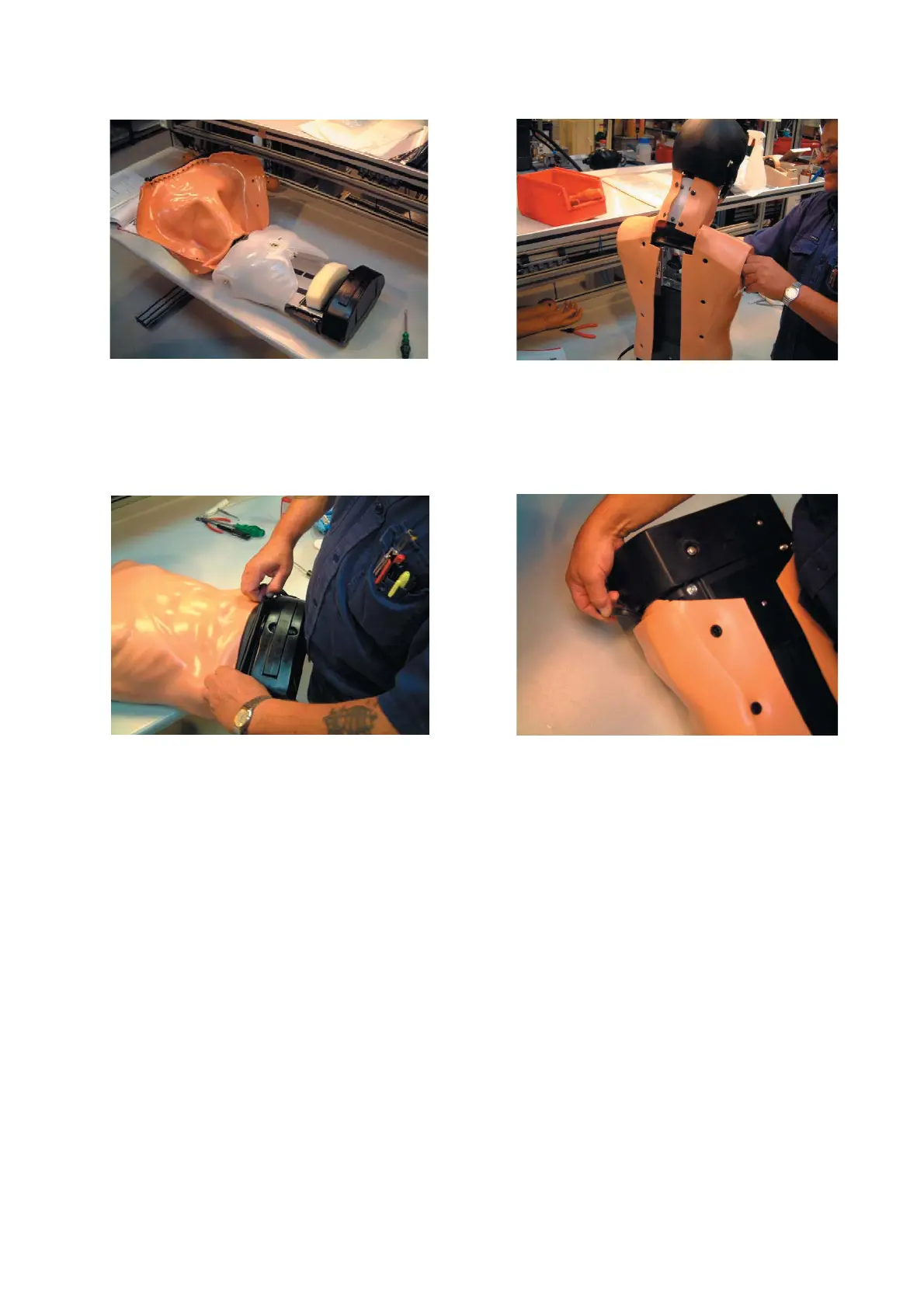

3.2-7 When repositioning the part of the chest, handle
the mounting with care in order not to stress the materi-
als.The retaining clamp for the two parts of the chest
must be replaced if damaged. Drill out the two pop
rivets, fi t a new clamp, and re-rivet (see 6.1-16 and 17).
3.2-8 Fasten the parts of the chest and chest skin on
the back. For models with arms carefully pull the hooks
through the holes in the chest skin using a pair of
pointed pliers. (Photo shows new “neck” model)
3.2-9 Attach the chest skin to the groove in the base
unit.
3.2-10 Lock the plastic straps on the backside, locking
the skin to the base. Observe the groove at the skin.
