Page 19
6.1-6 Remove the locking ring and detach the bar,
thereby freeing the rocker mounting.

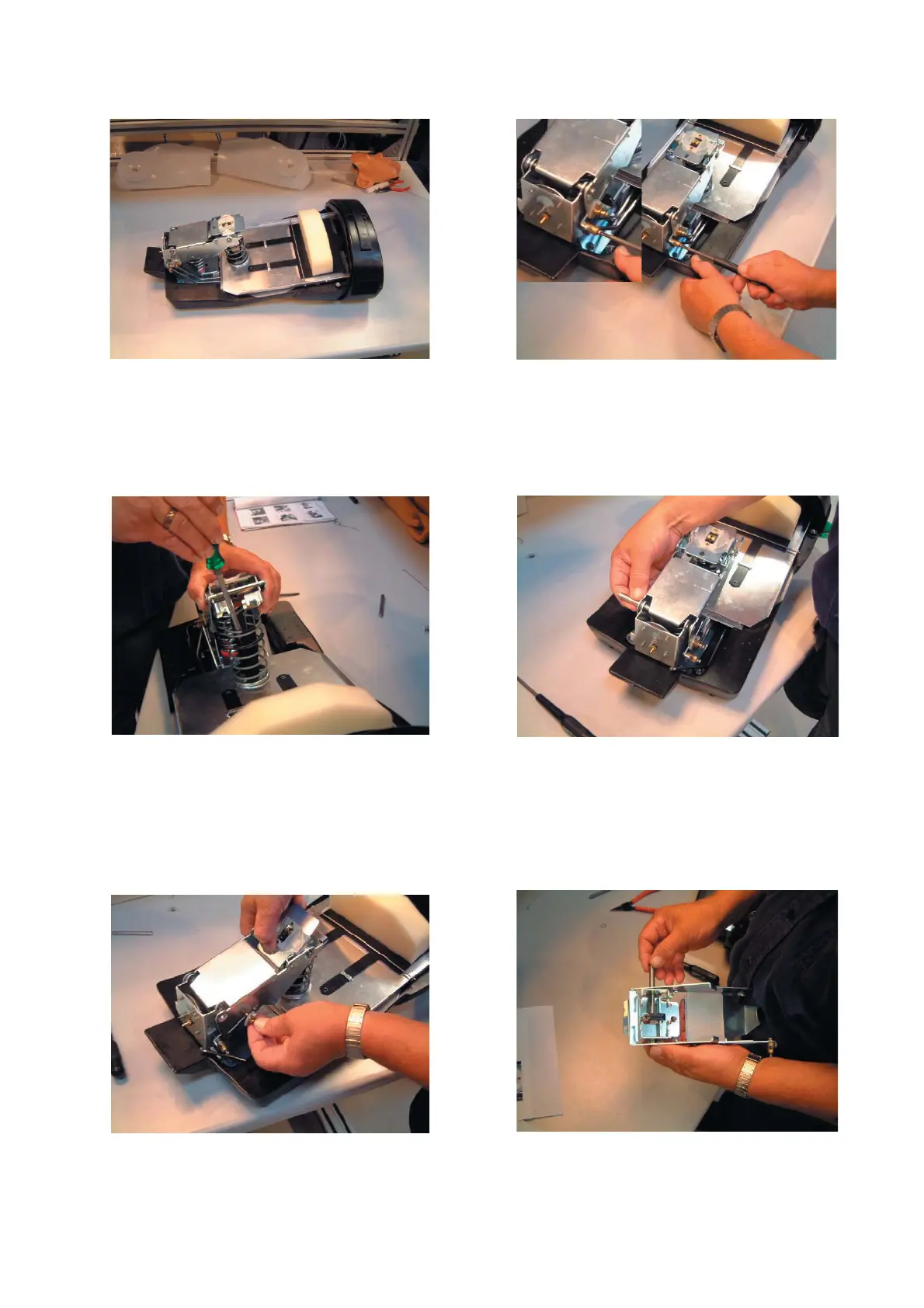

6.1 Exchanging the hand-positioning thrust roller
Follow the directions contained in section 3.1. to remove the skind and head
6.1-1 The base unit is now ready for disassembly.
6.1-3 Remove the rocker lever assembly from the spring
by pulling.
6.1-5 Detach the tension rod from the slit.
6.1-2 Loosen the spring screws and free the two tension
rods.
6.1-4 Remove the spindle from the rocker lever assem-
bly and detach the rocker lever.
