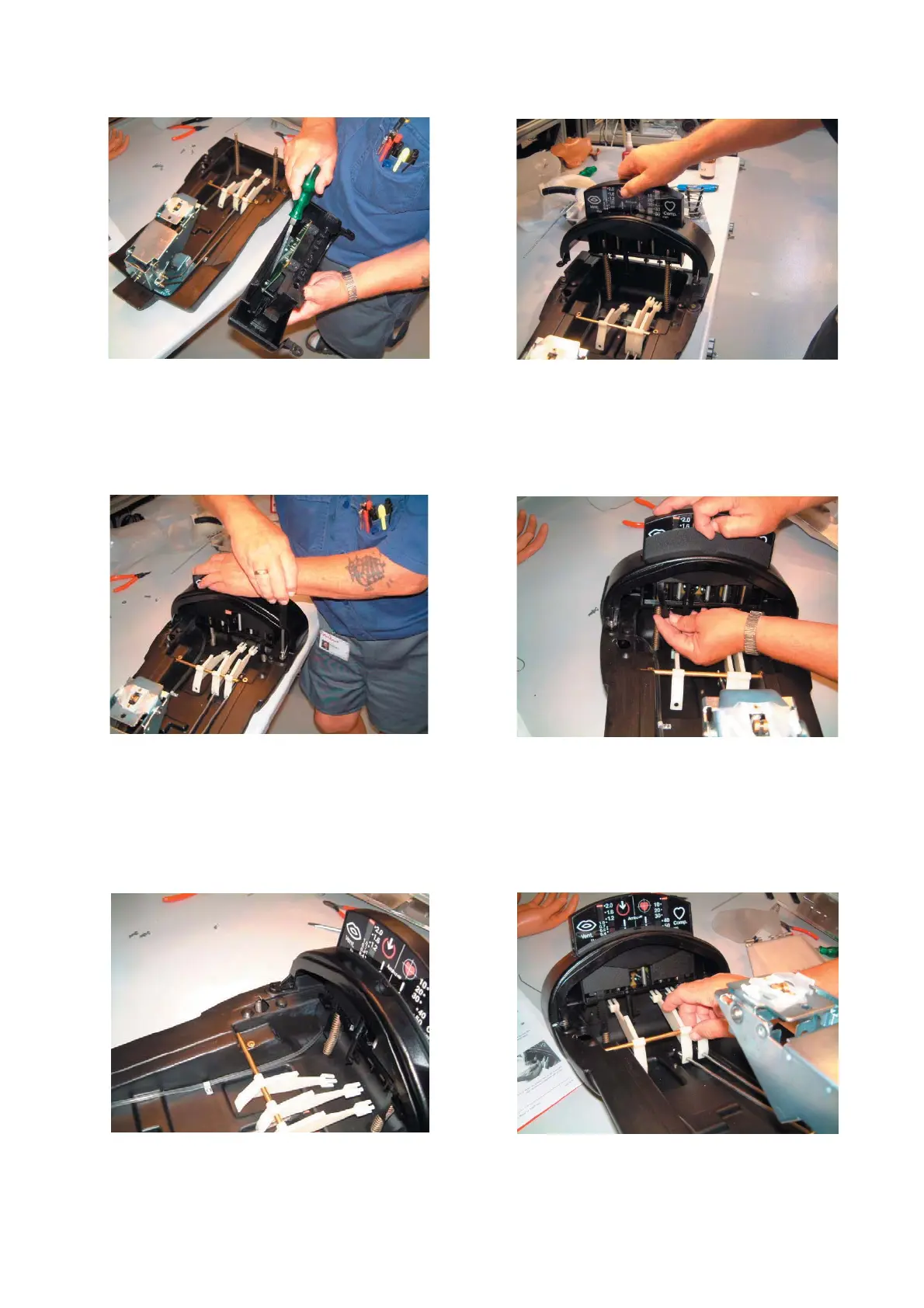

Page 26
6.3-6 Mount the levers on the instrument guide ways.
Guide way no. 2 from the left must be left free.
6.3 Assembling the base unit
6.3-1 Using a screw driver, hold down the pawl to en-
able the instrument to re-enter the casing.
6.3-3 Mount the four retaining screws for the instru-
ment casing. Remember to fi t washers with the two
long screws.
6.3-5 Insert tension rods and levers.
6.3-2 Mount the instrument casing.
6.3-4 Insert the cover plate through the groove in the
instrument casing and engage the two tags in the slots
on the instruments.
