Ambu Man - Assembly of Head and Chest Skin with Neck to Base Unit

Page 9
3.2-6 Refi t the two parts of the chest on the rocker
lever.

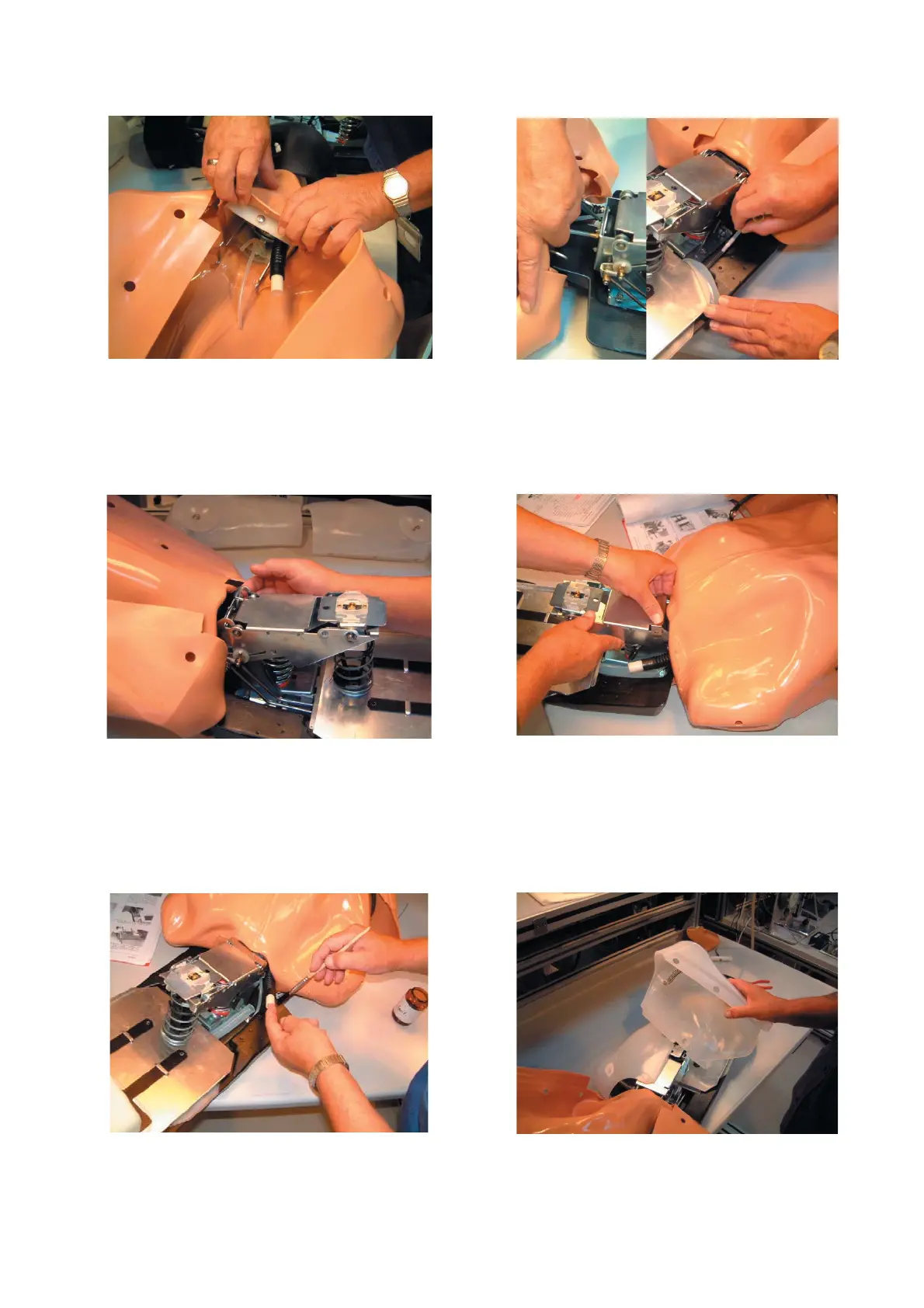

3.2 Assembly of head and chest skin with neck to base unit
3.2-1 Fit the chest skin onto the base unit. Replace the
head by inserting the head mounting
3.2-3 Fit the mounting with two hooks onto the neck
clamp pin.
3.2-5 Moisten the end of both parts with alcohol and
mount the neck tube to the tube connector.
3.2-2 Connect the two thin tubes - the short tube to
the connector on the rocker lever assembly and the long
tube to the extension tube on the base unit.
3.2-4 Mount the locking device.
