Page 31

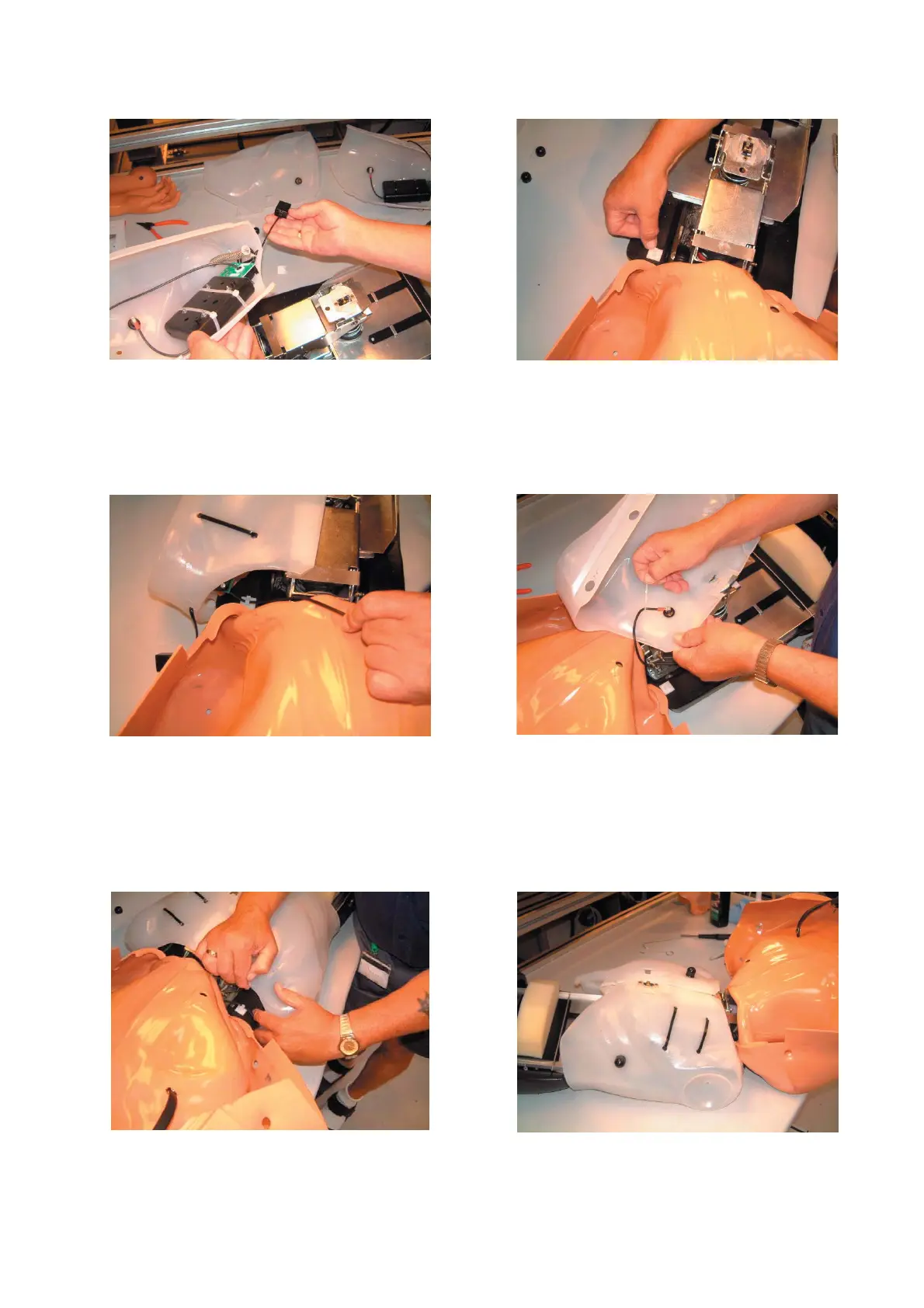

7.2-6 Check that the cables are not caught between
any metal parts. Pull back the chest skin.
7.2 Assembly of Ambu Defi b Man
7.2-1 Fit the resistance box in correct position by means
of the two cable clamps. Fit the cable for the electrodes
on the left part of the chest.
7.2-3 Fit the cable for the electrode on the right part
of the chest on the cable holder and lead it behind the
neck.
7.2-5 Fit the cable in the cable holder.
7.2-2 Push the 2 cable holders on the black base and
gently reposition the left part of the chest.
7.2-4 Fit the cable on the chest and gently reposition
the right part of the chest.
