Page 17
5.1-6 Fasten the head onto the neck piece.

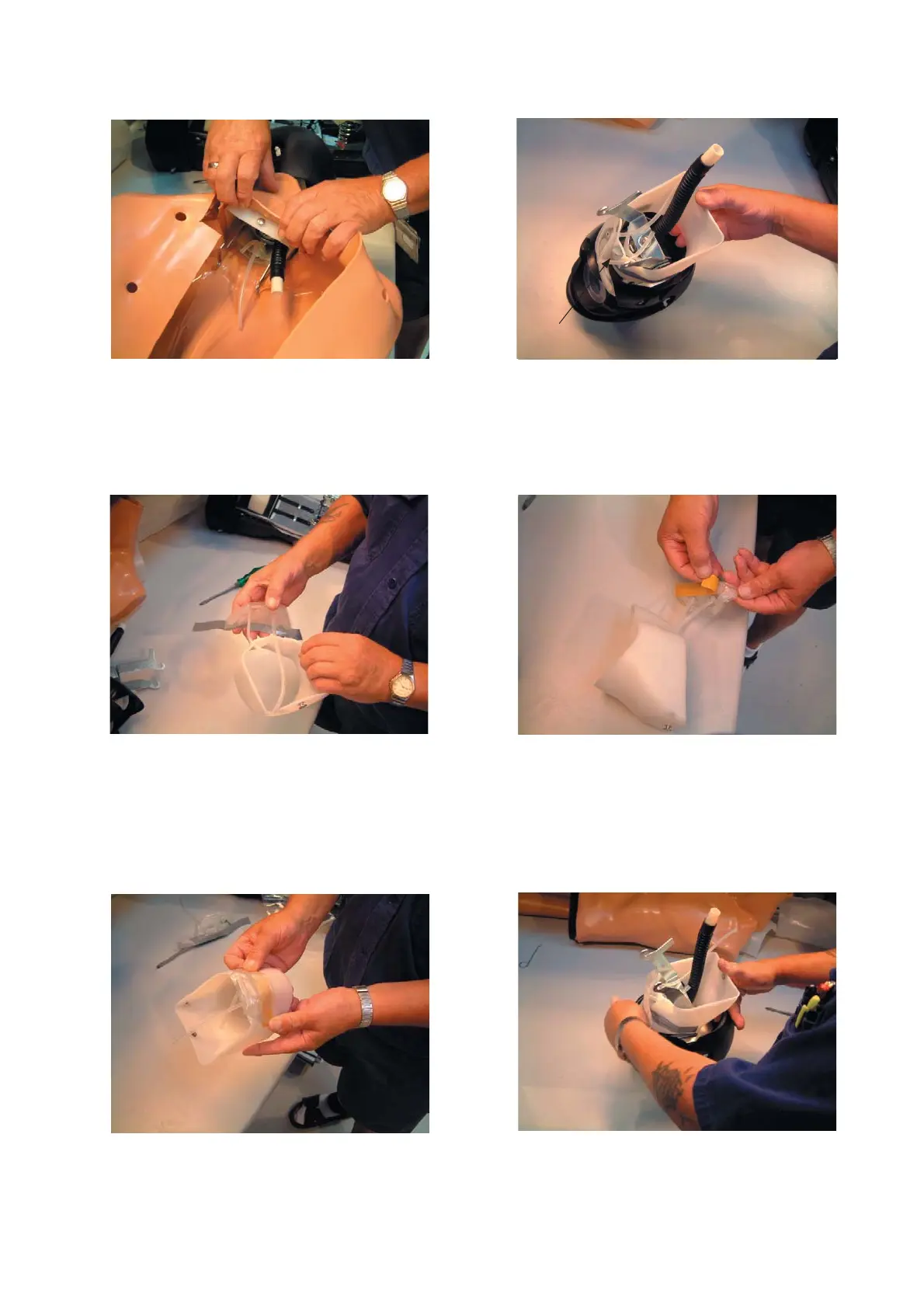

5.1 Exchanging the carotid pulse unit
Follow the directions contained in section 3.1. to disassemble from the torso
5.1-1 Unbutton the chest skin from the neck piece.
5.1-3 Remove the plastic tape and pull the pulse unit
and two tubes free of the neck piece. Mount new pulse
unit, push the tubes through the neck piece so that the
pulse unit is in close proximity to the neck piece.
5.1-5 Fasten the pulse unit on the neck piece.
5.1-2 Pull the neck piece free of the head (A), observe
the lock tap. See also 3.1-20 and following instructions.
5.1-4 Detach the cover.
A
