Page 5
3.1- 6 Undo the strap at the back, gently using a
schrewdriver.

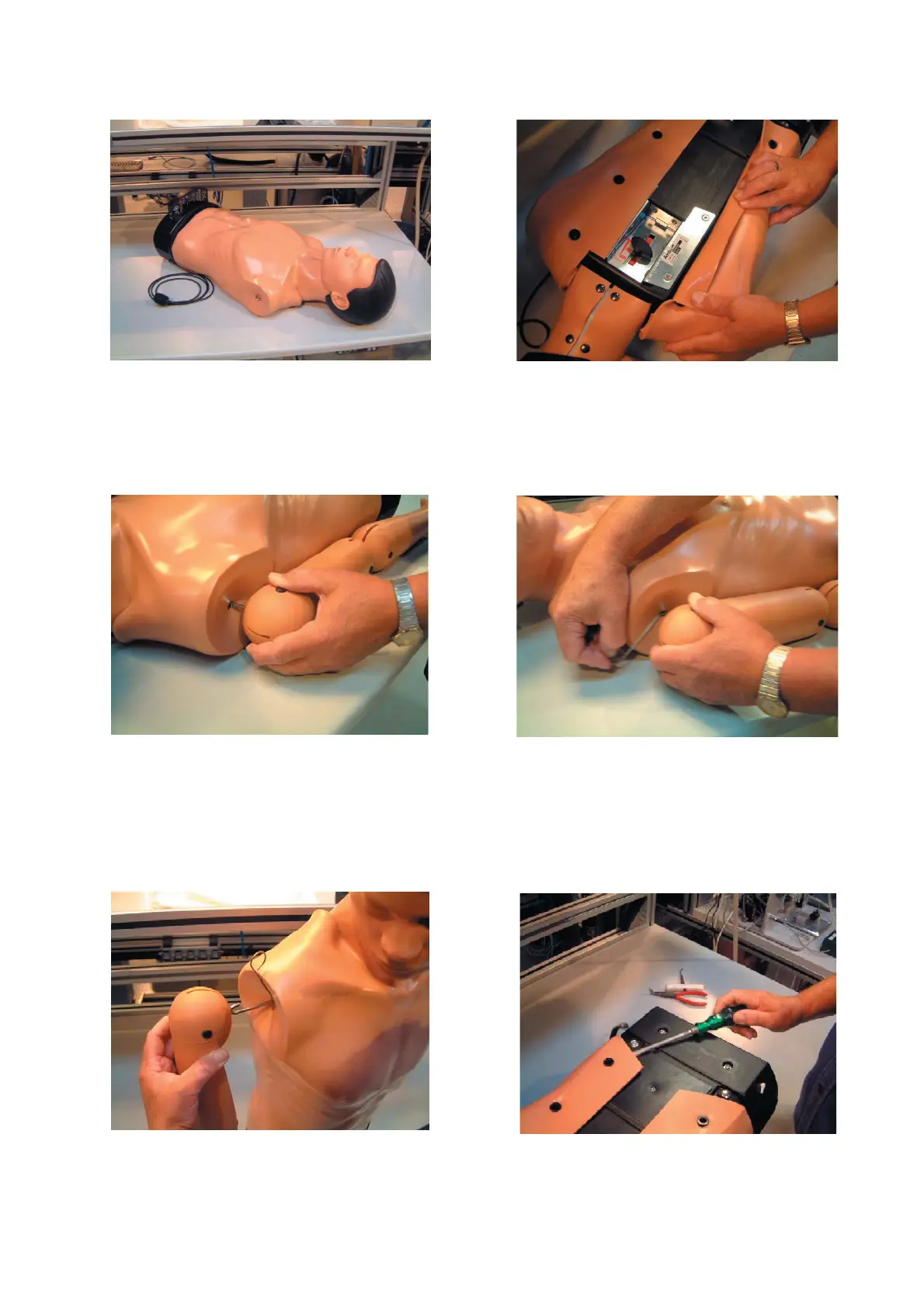

3.1 Removal of head and chest skin with neck from base unit
3.1-1 Ambu Man model C with monitoring instrument
and socket for connection of computer/interface.
3.1-2 Serial number may be found under thorax adjust-
ment.
3.1-3 Remove arms if fi tted.
Pull the arms carefully away from the body. If necessary
hold onto the mounting using a pair of polygrip pliers.
3.1-5 Remove the hook from the arm hook.
3.1-4 Insert a hook of approx. 2 mm through the hole
in the arm hook. Detach the pin in the arm from the
hook in the shoulder.
