Page 6

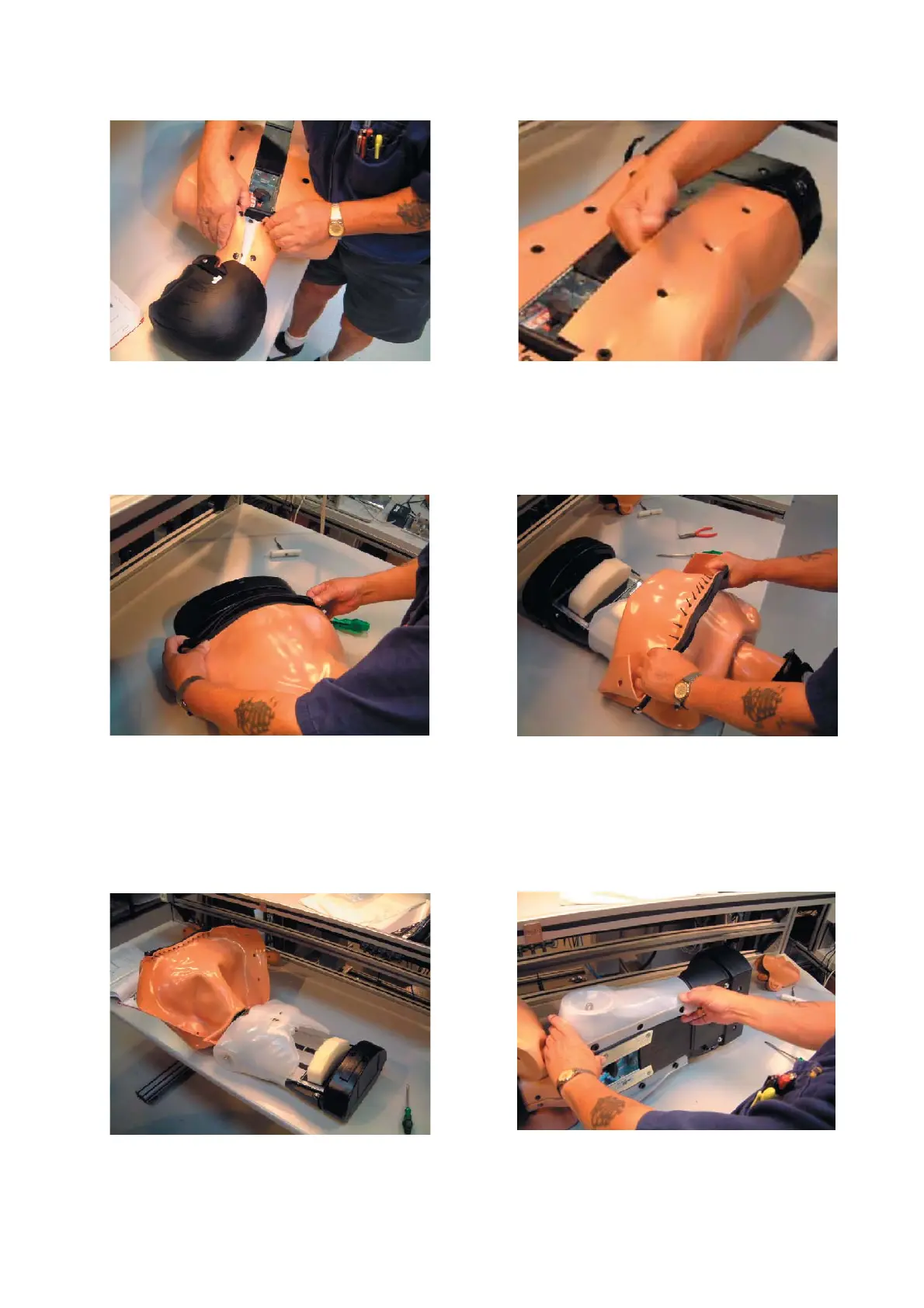

3.1-12 Remove by lifting each part of the chest.
During removal, treat as gently as possible.
3.1- 7 On new models from serie 55376, the neck is
attached with 4 buttons. This means that the skin can be
detached easily. The following disassembly instructions
and pictures will only show the “old” skin detachment.
3.1- 8 Undo the chest skin and the two parts of the
chest on the back of the Ambu Man.
3.1- 9 Free the chest skin from the base unit.
3.1-11 Pull the chest skin over the head and carefully
pull the chest skin free of the two hooks.
3.1-10 Lift the skin gently off the torso.
