Page 20

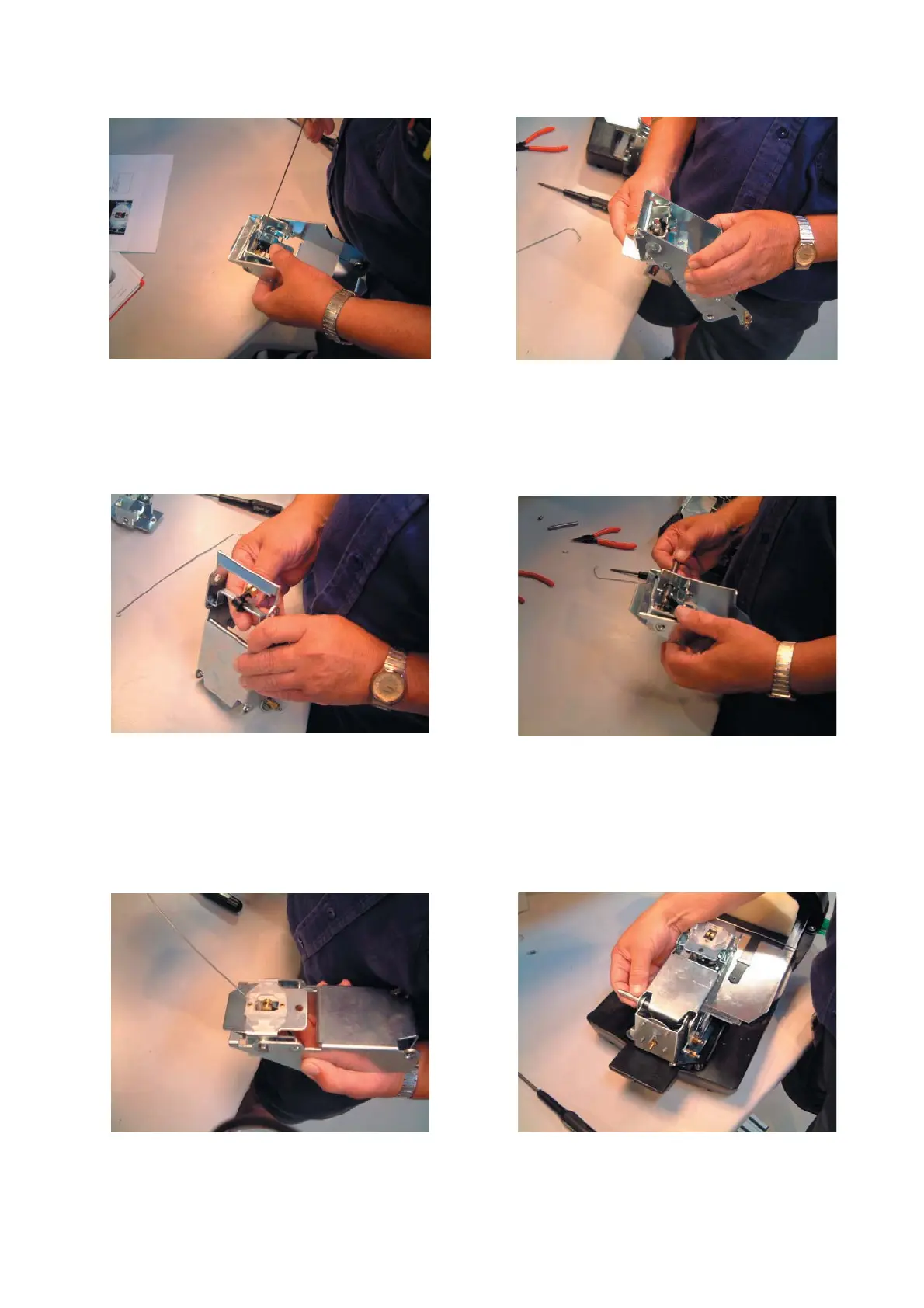

6.1-12 Mount the rocker lever and insert the spindle.
6.1-7 Remove the spring from the thrust roller using
pliers.
6.1-9 Insert the thrust roller as shown. Fit the thrust
roller so that it snaps onto the fl at bar on both sides.
6.1-11 Insert the spring between the rocker mounting
and thrust roller holder.
6.1-8 Remove the thrust roller along with its holder
and replace with a new set.
6.1-10 Insert the bar and locking ring belonging to the
rocker mounting.
