Page 21

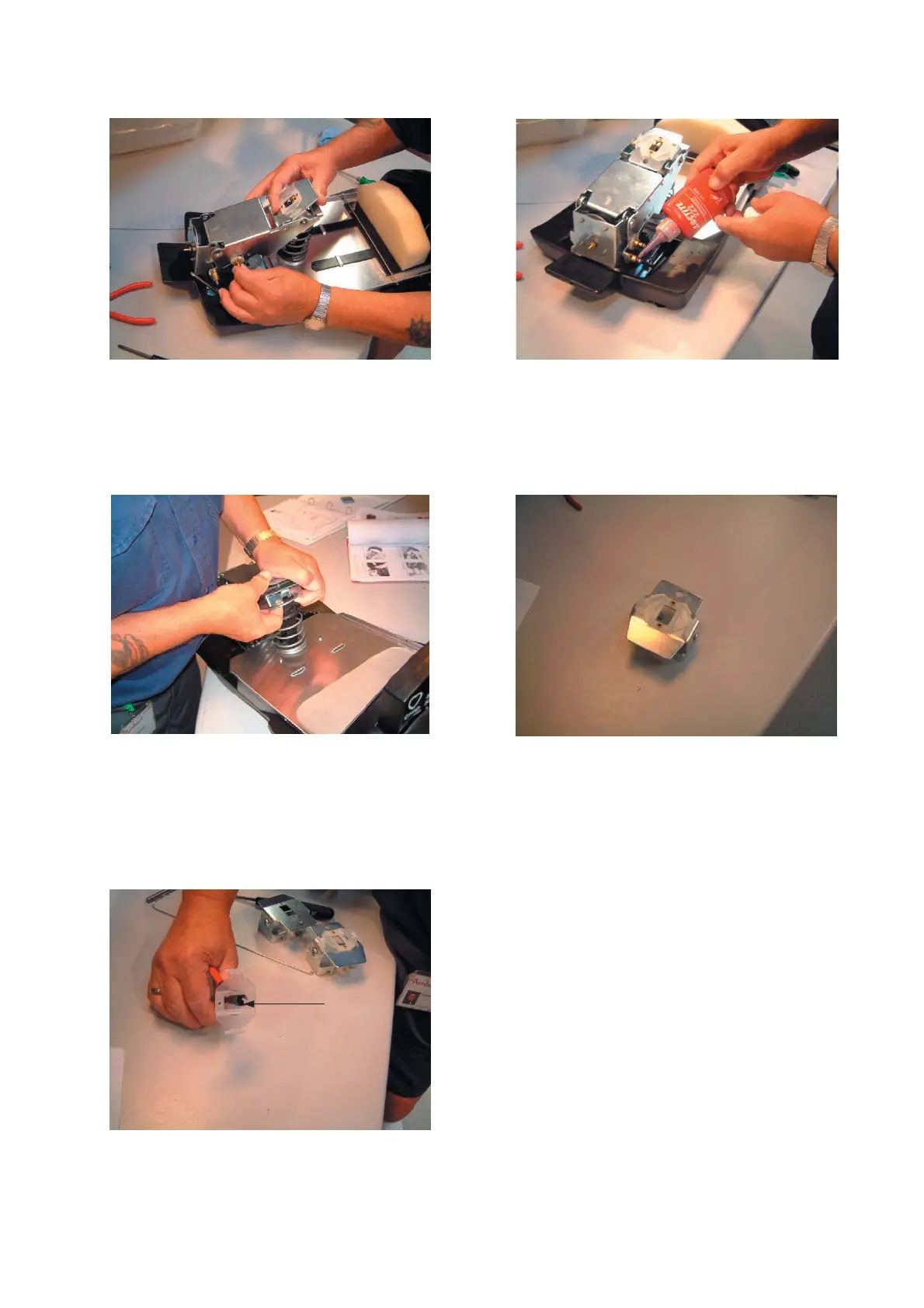

6.1-13 Mount the tension rods in their bushings, the
plain rod being nearest the head. Make sure that the
screws engage the recesses in the tension rods.
For reassembly of other components follow the
directions in section 3.2.
6.1-15 Press the rocker lever down over the spring.
6.1-17 When attaching a new holding device, remem-
ber to cut off (A) the old spring tap.
6.1-14 Lock the screws with locktite No. 222 thread-
locking.
6.1-16 Rocker shaft with chest holding device, attached
with two rivets.
A
