if the value is too big, the dark area is likely to become darker and the light area over exposed. If the value
is too small, the image is likely to become dim. The value ranges from 0 to 100. The default value is 50.
The recommended range is between 40 and 60.
Saturation: Adjusts the color shades. The bigger the value, the lighter the color will become. This value
does not influence the general image lightness. The value ranges from 0 to 100. The default value is 50.
The recommended range is between 40 and 60.
To refresh the interface, click Refresh. To Save the image settings, click Save.
Encode
This tab is used to set the audio/video encoding settings for each channel. The interface will display each
stream (Main Stream and Sub Stream) depending on the capabilities of the connected device.

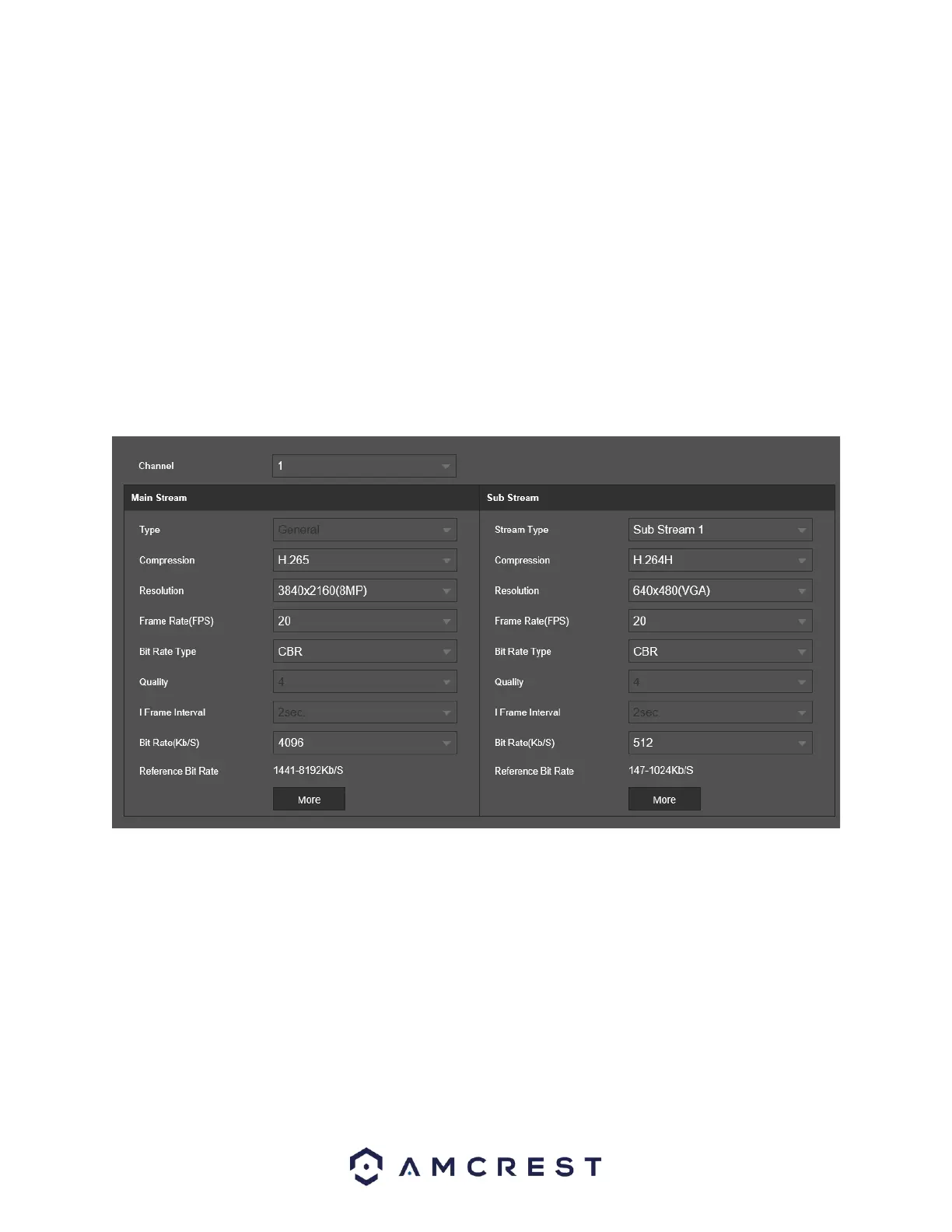

See below for a screenshot of the tab:
Below is an explanation of the fields on the Encode settings screen:
Channel: This dropdown box allows the user to select a channel from the dropdown list to modify.
Type: This dropdown box allows the user to select one of 3 channel types: general, motion, and alarm.
Various encode parameters can be for different record types.
Compression: This dropdown box allows the user to select a compression protocol. The system supports
H.264, H.264B, H.264H, and H.265 compression protocols.
Resolution: This dropdown box allows the user to set the resolution. The system supports various
resolutions, and they can be selected from this dropdown list.
Frame Rate (FPS): This dropdown box allows the user to select a frame rate. Frame rate settings range
from 1f/s to 25f/s in NTSC mode and 1f/s to 30f/s in PAL mode.
