27
Connect to a European video device (S-Video to SCART using
composite video adapter)
1 Before connecting a European video device, attach a monitor and
install the video drivers.
2 Make sure the computer and the monitor are off.

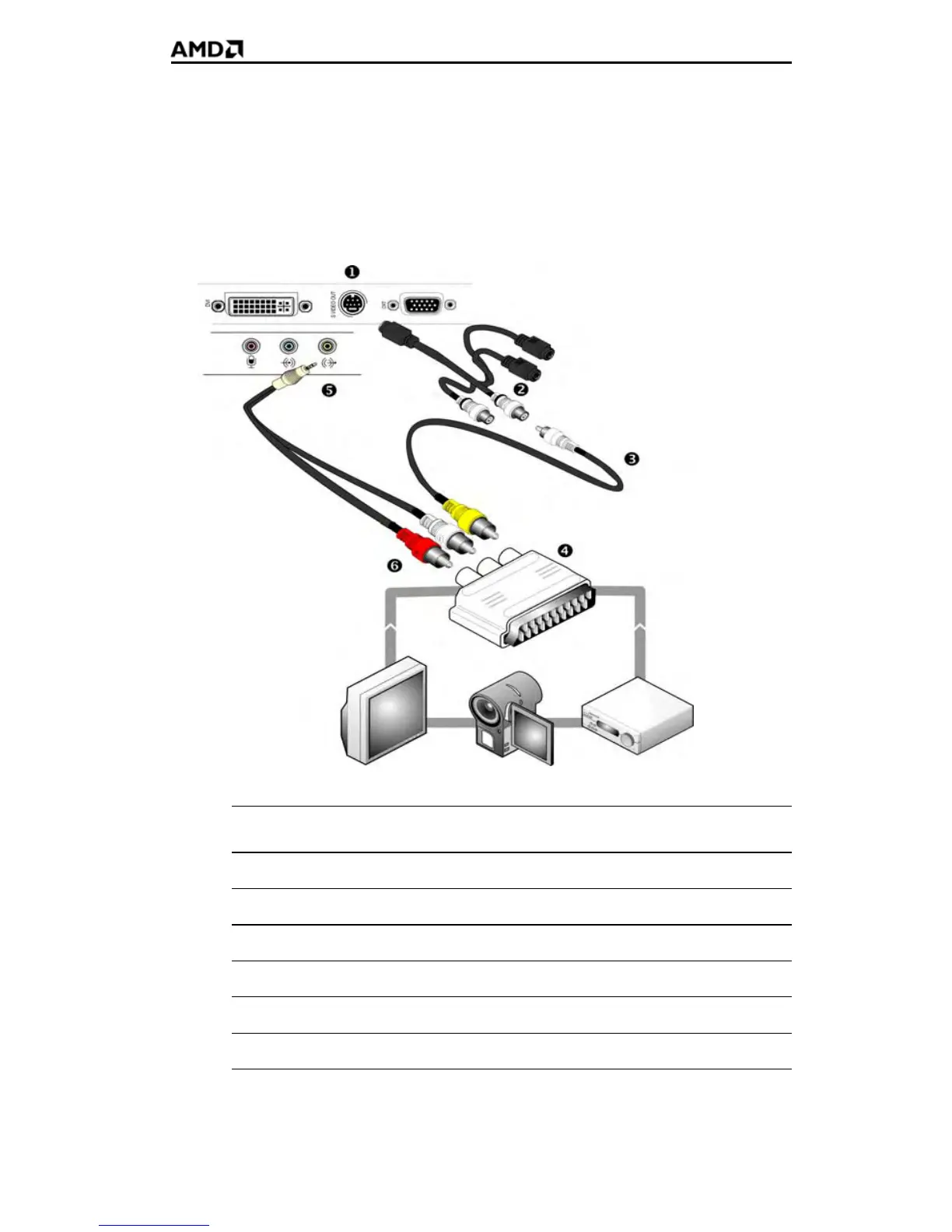

S-Video to SCART connectors
Legend
1 S-Video out connection on graphics card
2 S-Video to composite adapter/cable
3 Composite cable
4 SCART adapter
5 Audio mini-jack connection on sound card
6 Left and right RCA audio connectors
