If you have properly installed your graphics card, operating system messages will

appear and the boot procedure will proceed.

Your monitor will be running in a basic (VGA) video mode. Higher refresh rates are

not available at this stage of the installation. Once you have installed the AMD FirePro

drivers and software, you can use the Windows®Display Properties dialog to adjust

your video settings and configure multiple monitors.

Proceed to install the software and drivers for your AMD FirePro graphics card.

Baseplate Connections

Display connections

The following figure shows the display connections on your graphics card.

Note: Baseplate may not appear exactly as depicted.

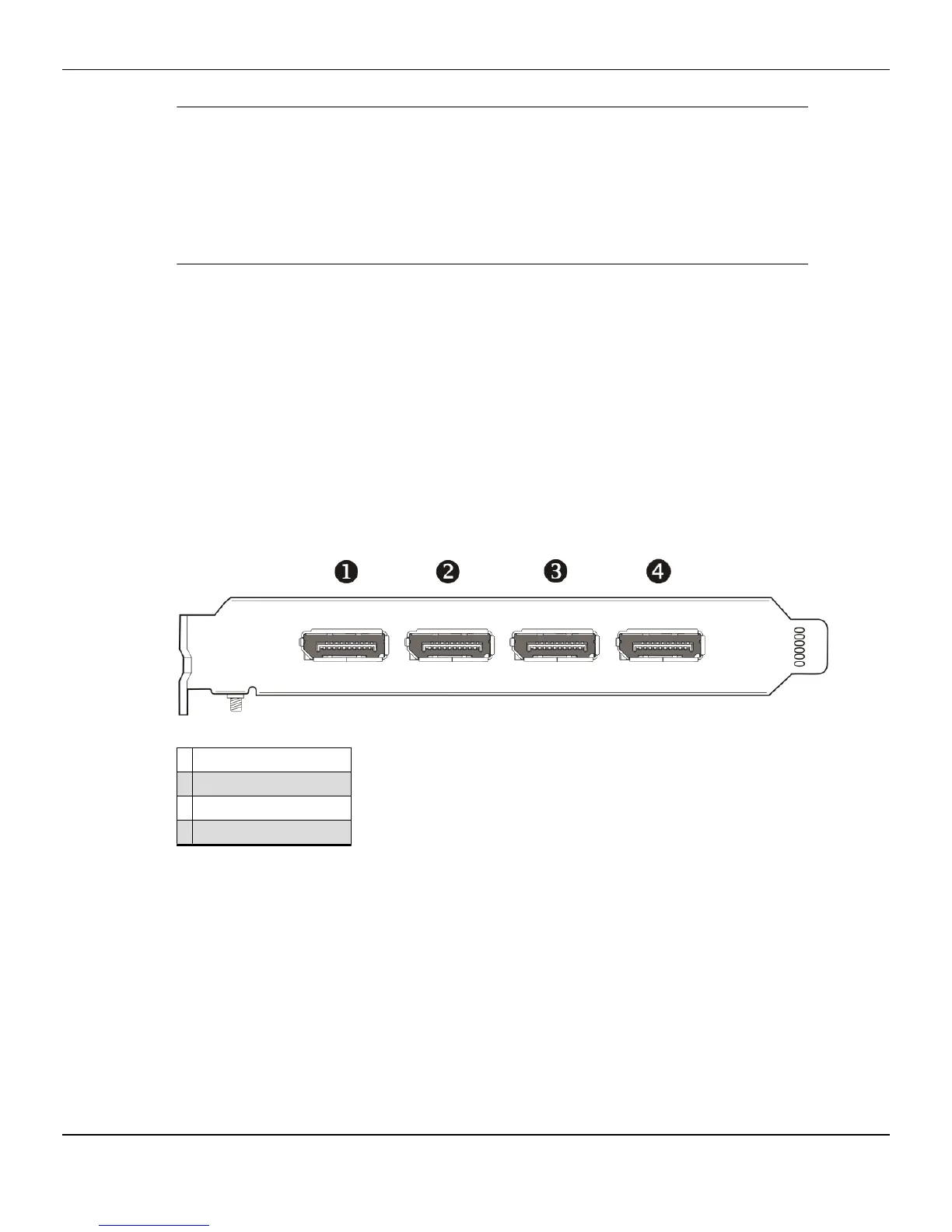

Figure 3–2 AMD FirePro V7900 SDI Display Connections

1 DisplayPort Connection

2 DisplayPort Connection

3 DisplayPort Connection

4 DisplayPort Connection

Stereoscopic connection

The following figure shows the stereoscopic port that connects your AMD FirePro

V7900 SDI graphics card to stereographic glasses. The bracket can be attached if

needed, or left off so that the graphics card covers only one PCI slot in the computer's

case.

Note: Baseplate may not appear exactly as depicted.

Hardware Installation 13

AMD FirePro V7900 SDI User Manual
