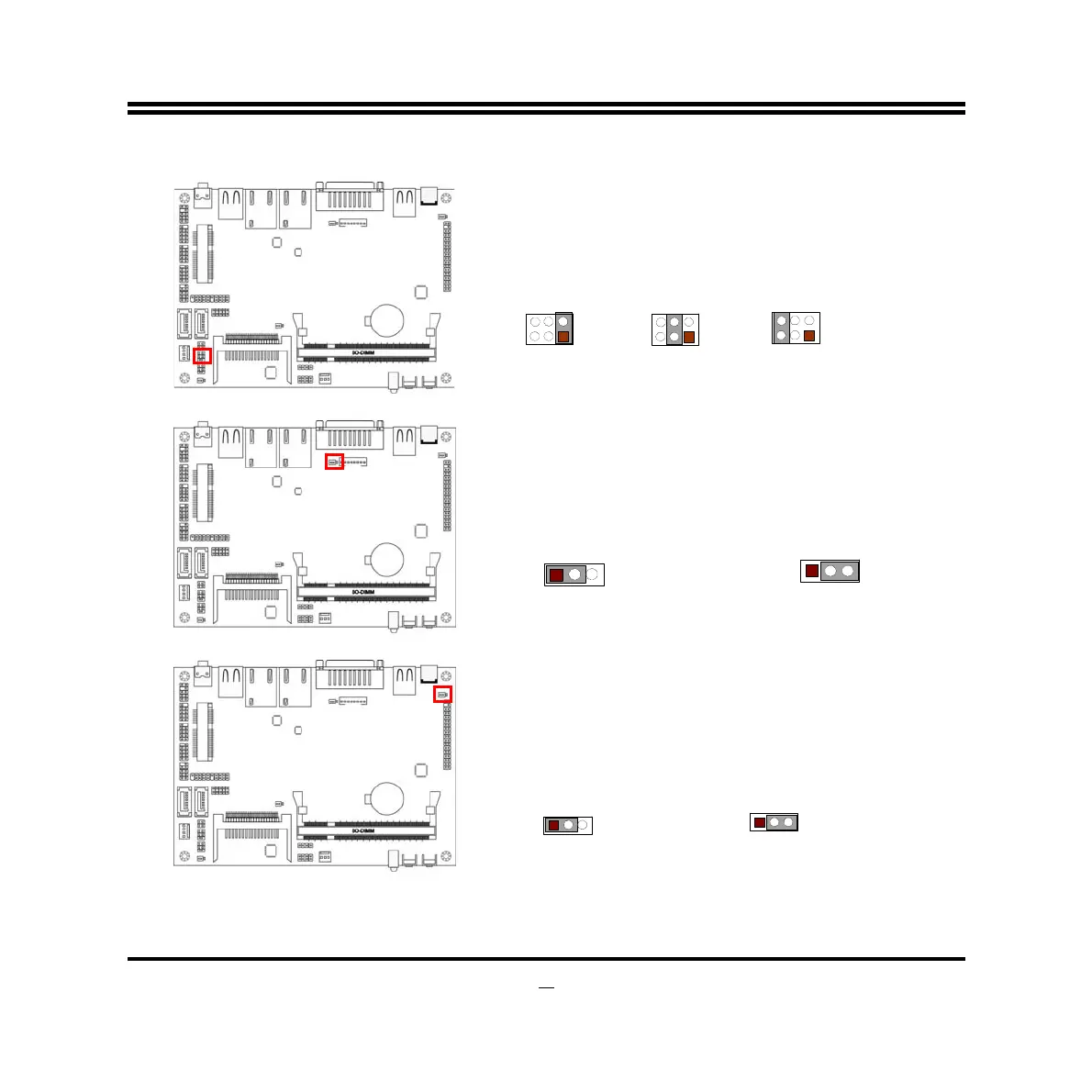

(3) JCOMP1(6-pin): COM1 PRS232 power select

3-4 closed : +12V

JCOMP1

1-2 closed: RS232

1 1

5-6 closed :+5V

(4) JP1 (3-pin): Inverter VCC 5V/12V select

2-3 closed : Inverter 5V Select

JP1

1-2 closed: Inverter 12V Select

(5) JP2 (3-pin): LVDS 5V/3.3V select

2-3 closed : LVDS VCC 3.3V

JP2

1-2 closed: LVDS VCC 5V
