Chapter 2

Hardware Installation

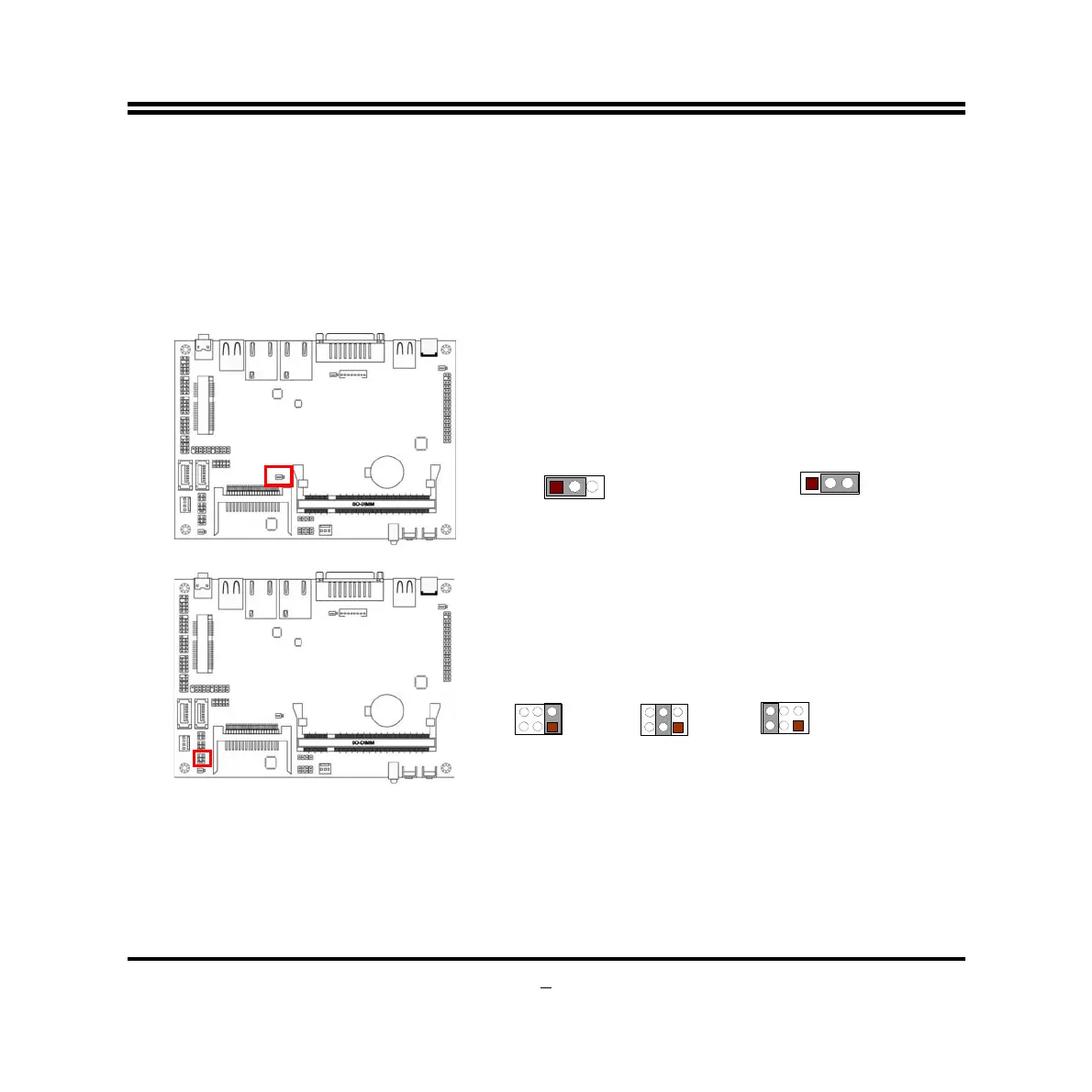

2-1 Jumper Setting

(1) JBAT(3-pin): Clear CMOS

2-3 closed : Clear CMOS

JBAT

1-2 closed: Normal

(2) JCOM1(6-pin): COM1 Port RS232/422/485 function select

3-4 closed : RS485

JCOM1

1-2 closed: RS232

1 1

5-6 closed : RS422
