9

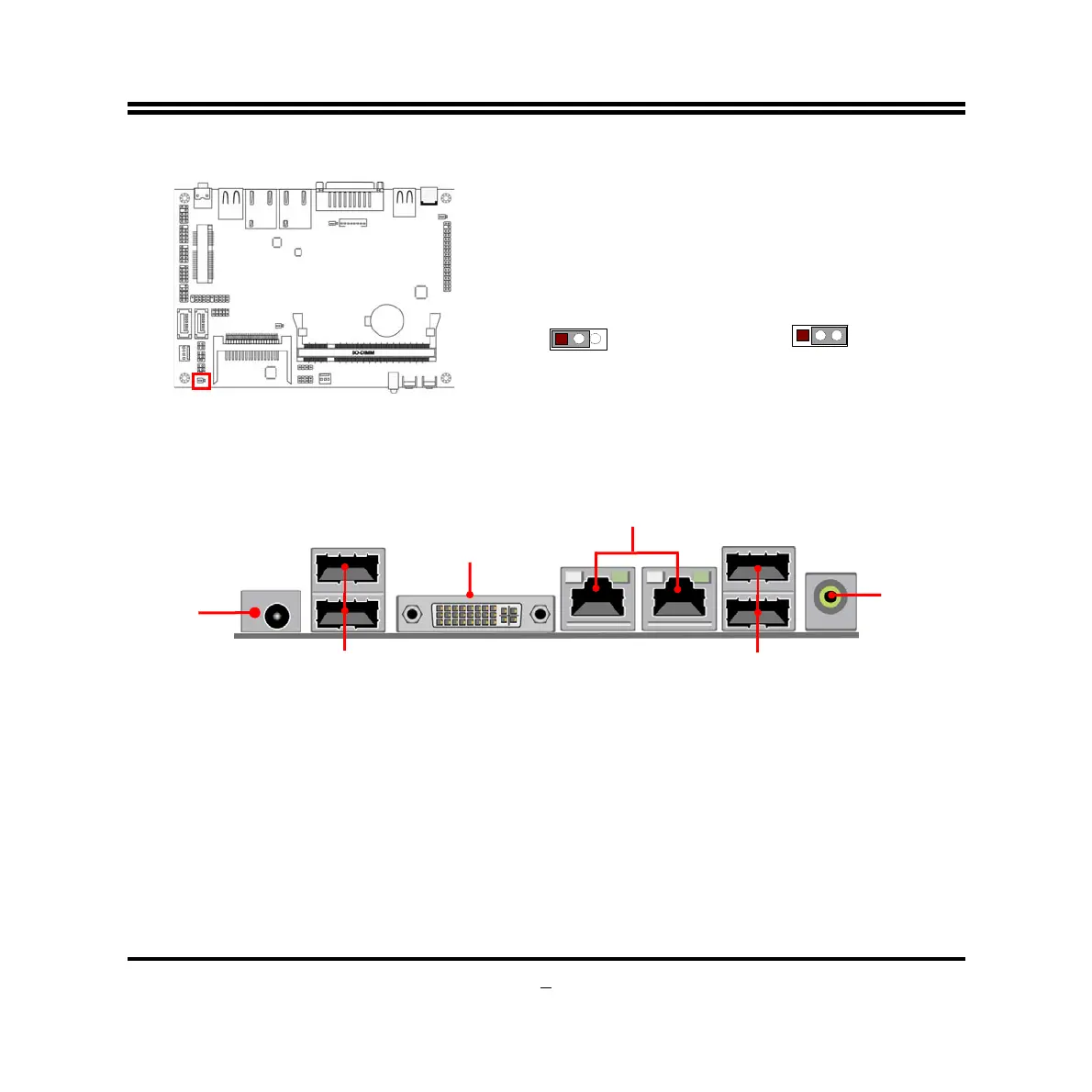

(6) JP3(3-pin): CF card Master /Slave Mode setting
2-3 closed :CF card Master Mode
JP3
JP3
13
1-2 closed: CF Card Slave Mode
1
3
2-2 Connectors and Headers
2-2-1 Connectors
(1) Rear Panel Connectors
(2) Serial-ATA Port connector: SATA1/SATA2
These SATAIII connectors support SATA 6Gb/s specification. Please connect
SATAIII device to the connector with SATAIII cable. One connector supports
one SATA device.
DC12V
Power
Connector
USB 2.0
Connectors
DVI-I
Connector
USB 2.0
Connectors
RJ-45 LAN Connectors
Line-Out
Connector
