Installing Hardware
Installation and Configuration Guide 11

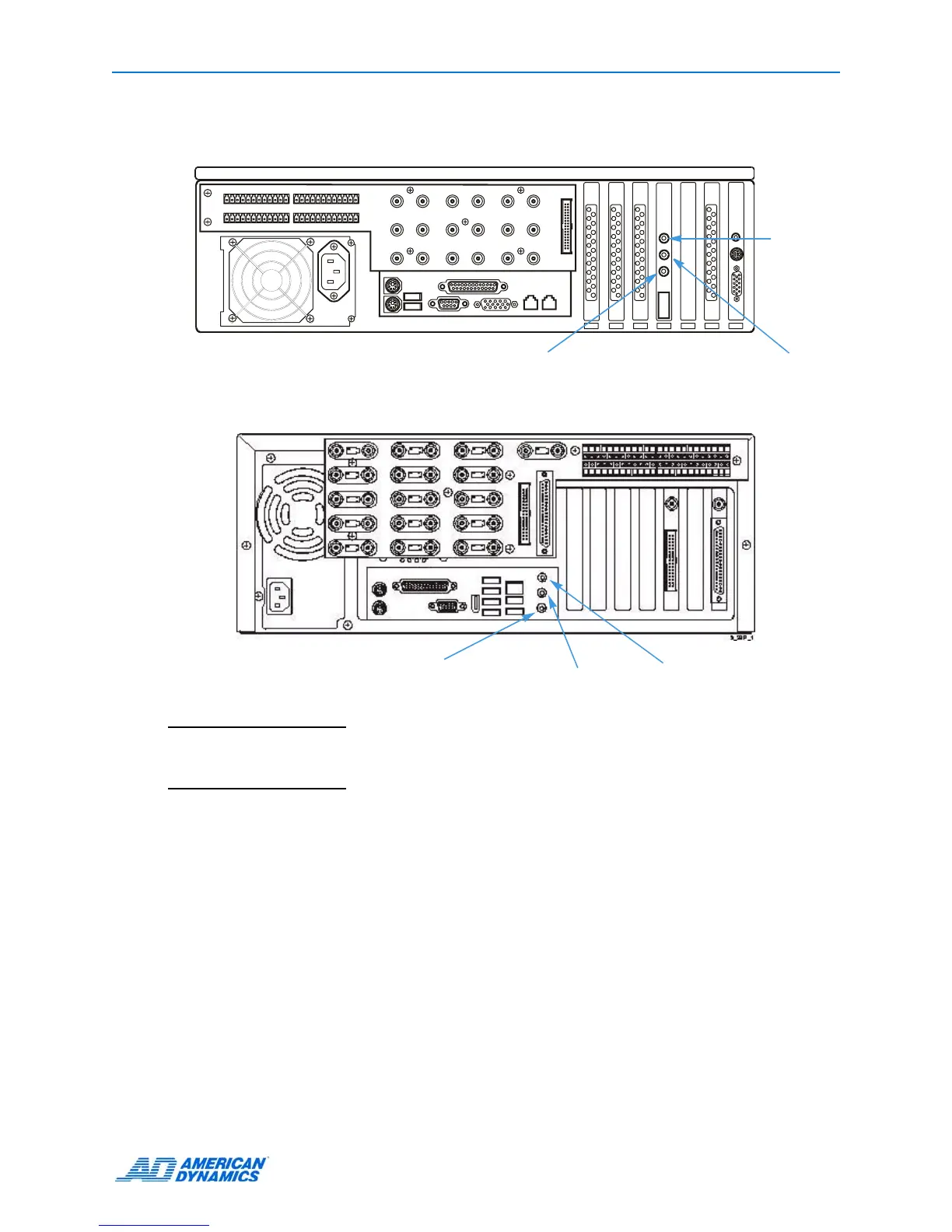

2 Connect a line level signal input and speakers.
Note
The layout of the rear panel varies slightly with different motherboards.
Note
For EMC compliance shielded twisted pair alarm cable should be used on the DVMS with the
shield terminated at the earth point.
Connecting Optional Components
You can connect the Touch Tracker, keyboard, mouse, printer, and other devices.
Adding a keyboard to the Intellex unit provides access to the operating system’s features such as
Log Off and Shut Down and to other applications. The Intellex Security Option does not control this
access. To restrict user access to these features, do not install a keyboard.
Connect a dome controller (Sensormatic VM16E or American Dynamics ADTT16E) to the
COM2 connector through an electrical interface module (EIM).
Connect a printer.
Connect a matrix switcher for dome control or devices for serial text input through the USB port.
Attach the mouse and keyboard.
INT40
_
BP
Microphone
connector (pink)
Speaker
output (green
)
Line In (blue)
Ultra
Line In (blue)
Microphone
connector (pink)
Speaker output
(green)
DVMS/Rackmount
