Installing Hardware
Installation and Configuration Guide 15

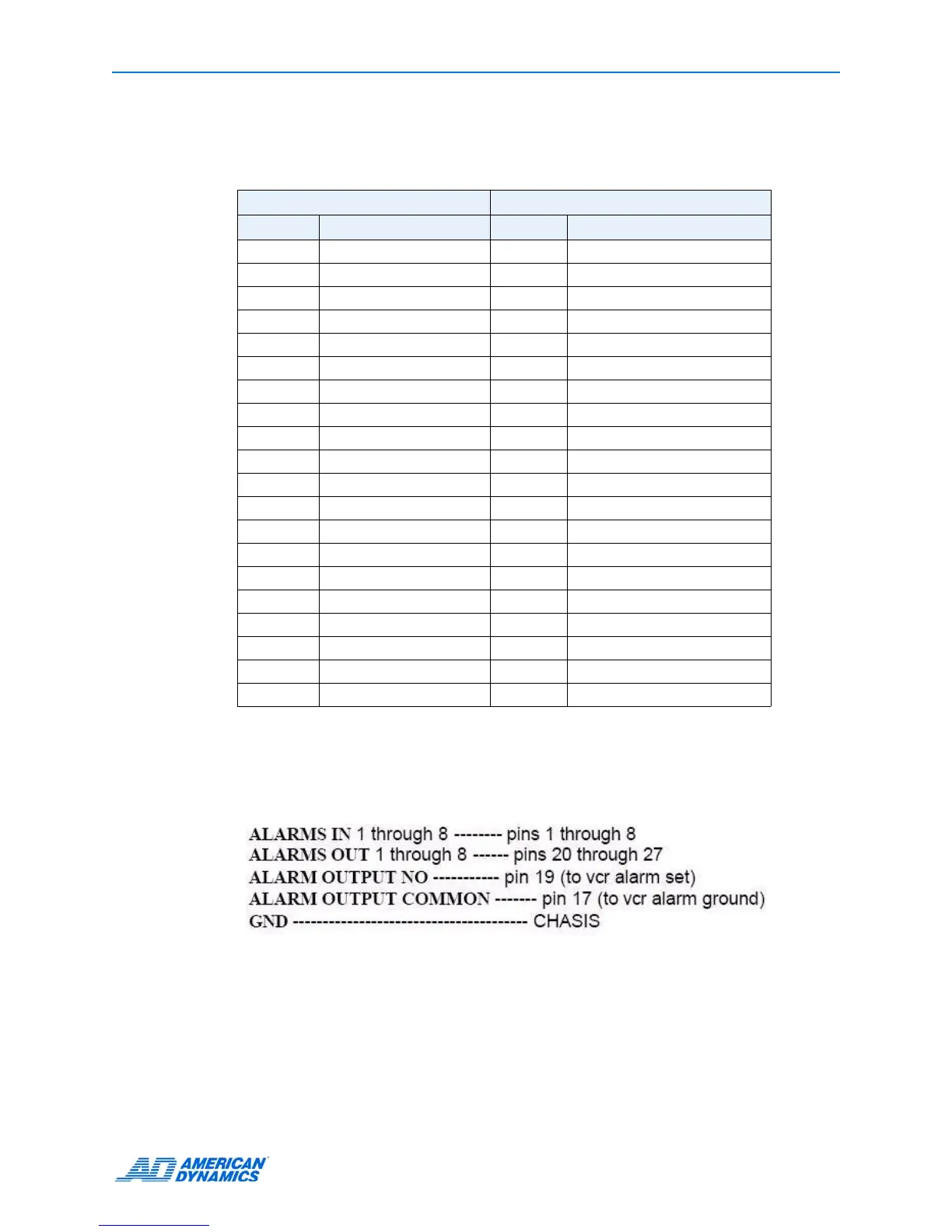

8-Channel
On an 8-channel Intellex, the alarm adapter is a rectangular board that connects into the DB37
port. The pinout looks like this:
8-Channel
The DB37 alarm port of the 8-channel Intellex can also be used without the alarm adapter. In that
case the pinout looks like this:
Connecting the Intellex to a Network
Only connect the Intellex to a network if you have installed the Network Client, Browser Client, or
other software designed to connect to an Intellex on the network. Use shielded twisted-pair cable
for network operation.
Connect the cable from the local area network to the Ethernet 10/100 port. Use Category 5
twisted-pair Ethernet cable (CAT 5 TPE).
Alarms In Alarms Out
Pin No. Assignment Pin No. Assignment
1 Input 1 1 Output 1
G Ground G Ground
2 Input 2 2 Output 2
G Ground G Ground
3 Input 3 3 Output 3
G Ground G Ground
4 Input 4 4 Output 4
G Ground G Ground
5 Input 5 5 Output5
G Ground G Ground
6 Input 6 6 Output 6
G Ground G Ground
7 Input 7 7 Output 7
G Ground G Ground
8 Input 8 8 Output 8
G Ground G Ground
17 Time Sync 16 Output 16 (Unit Alarm)
G Ground G Ground
18 Ground COM Reserved
G Ground G Ground
