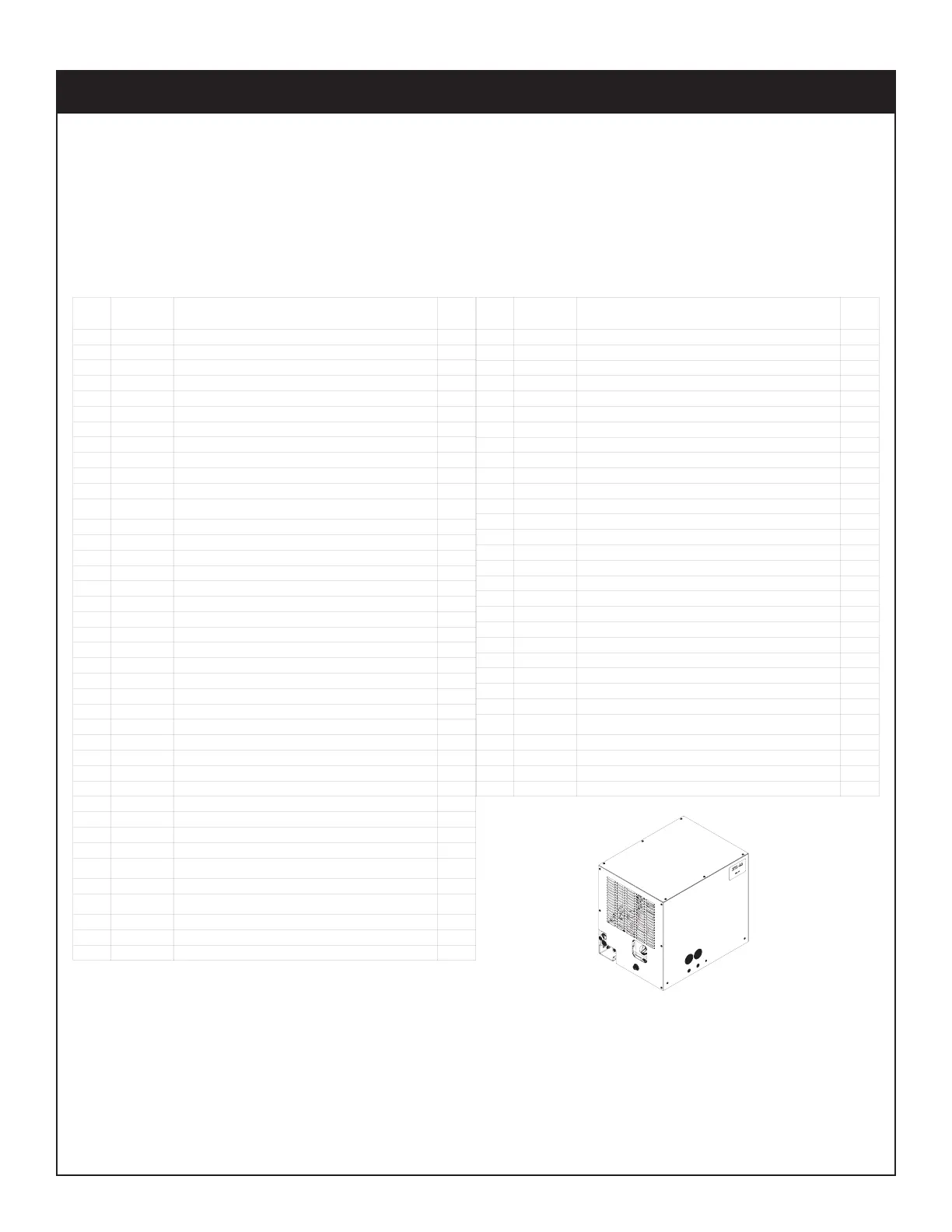

American Eagle SRS-65 - SRS-65 P Compressor Assembly - PN 53889

ITEM PART DESCRIPTION lt/QTY
.
1 53892PC BASE WLDMT CPRSR SRS65 RP 1
240415
CPRSR SRS NK60 PMC 1
317583
CAP SCR 10MMX30MM HHGR5 4
40523
WASHER 0.38 LOCK 6
5
C3075 BLOCK AL CPRSR SHD 66 1
6
C0910 CAP SCR 0.25-20X2.75 HHGR5 2
70343
WASHER 0.31 USS FLAT ZINC 8
80333
NUT 0.25-20 HHGR5 NYLOC 4
9 C2142 FTG ADAPT ML O'RING/ML 12-F5OLO-S 4
10
51234 VALVE RELIEF RV50-22A-O-P-50-35 1
11
C4913 VALVE SOLND 1
12 22860 FTG ADAPT MBSPP/FNPT 1/2-1/2 F4OHG MOD 2
13 13579
NIPPLE 0.50X2.50 BRASS 80300-0825 1
14 12856
CAP 0.50 PIPE HEX 5406-8 1
15 21393 FTG BULKHEAD 12WGTX-WLN 1
16 53867 COOLER OIL SRS65 AKG 1588.002 1
17 53862 SHROUD SRS65 RP FAN MNT 1
18 0485
CAP SCR 0.31-18X1.25 HHGR5 4
19 0522
WASHER 0.31 LOCK 4
20 5735 NUT SERT 0.31-18X0.50 OD 4
21 34541
FAN 16.00 PULL 12 VOLT 30102049 1
22 0479
CAP SCR 0.25-20X0.75 HHGR5 4
23 0521 WASHER 0.25 LOCK 4
24 19589 NUT SERT 0.25-20X0.38 OD 4
25 12122
BOLT 0.38X1.00 EYE 567-23-ZN 1
26 0535 NUT 0.38-16 HHGR5 1
27 21400
FTG SWIVEL NUT/MSTR .50 8F65OX 1
28 21299 FTG ADAPT MBSPP/MJIC 8-8M40M 1
29 22018 VALVE THERMO R-2323 SRS40 1
30 21297
FTG 90 MBSPP/MJIC 8-8C4MX 4
31 30667 BRKT MOTOR MNT SRS65 1
32 31042
BUSHING SH X 35MM 1
33 52650 SPROKET GOODYEAR PD Y-34S-H 1
34 C6188 BUSHING 1.00 1
35 34539 SPROKET GOODYEAR EAGLE PD Y-90S-QD 1
36 31043
BELT GOODYEAR EAGLE PD Y1000 1
37 31035
MOTOR HYD PLM3022SO-33S5-LOD/OF-N-C 1
38 C2269 FTG ADAPT 12-16 F5OLO 1
39 7351 FTG ST TH ELBOW 45 DEG 12V5OLO 1
40 C4498 FTG ORB/JIC STRT CONNT 12-F5OX-S 1
ITEM PART DESCRIPTION lt/QTY
.
41 4594 FTG ADAPT MSTR/MJIC 8 F5OX-S 1
42 4593
FTG SWIVEL NUT TEE 8R6X 1
43 21300
FTG 90 MJIC/MBSPP 12-8C40M 1
44
C6245 ELBOW 0.25 OD BRASS AIR 1
45
21549PC PANEL GAUGE MNT SRS40 1
46 21649
GAUGE AIR SWICHGAGE PSB20PHL200 1
47 21650
GAUGE OIL TEMP TSB20TVD3006125SR240 1
48
C6021 CAP SCR 0.25-20X0.75 BTNHD SS 8
49 0340 WASHER 0.25 FLAT 6
50 22161 COUPLER 0.13 BRASS 1
51 5419 FTG 0.50-0.25 BUSH RED BRASS 1
52 C5504 VALVE RELIEF 200# 1
53 26025 CAP SCR 0.50-13X2.25 HHGR5 2
54 0352 WASHER 0.50 USS FLAT ZINC 4
55 C6106 NUT 0.50-13 HHGR5 NYLOC 2
56 4591 PLUG STR HOLLOW HEX 0.75 12-HP5ON 3
57 53863 SHROUD ASM SRS65 RP 1
58 19592 WASHER 0.25 FLAT NYLON 6
59 9804 DECAL SRS-65 2
60 31030PC ANGLE MNT FRONT CPRSR SRS65 1
61 0480 CAP SCR 0.25-20X1.00 HHGR5 2
62 0342 NUT 0.31-18 HH NYLOC 2
63 53883 TUBE ASM 0.50 COOLER/CPRSR SRS65 1
64 53884 TUBE ASM 0.50 CPRSR/THERMVLV SRS65 1
65 53885 TUBE ASM 0.50 THERMVLV/COOLER SRS65 1
66 53882 TUBE ASM 0.75 HYD COOLER/MANIFOLD SRS65 1
67 53913 PLATE BULKHEAD AIR OUT SRS65P 1
68 0346
WASHER 0.38 FLAT 2
69 0351
CAP SCR 0.38-16X1.00 HHGR5 2
70 20944 TUBE ASM 0.75 AIR/BULKHEAD SRS40 1
Assembly Drawings 
SRS-65P Compressor Assembly - PN 53889
