M21-400 REV.1.1 DVPLUS DIGITAL VISCOMETER - OPERATIONAL MANUAL

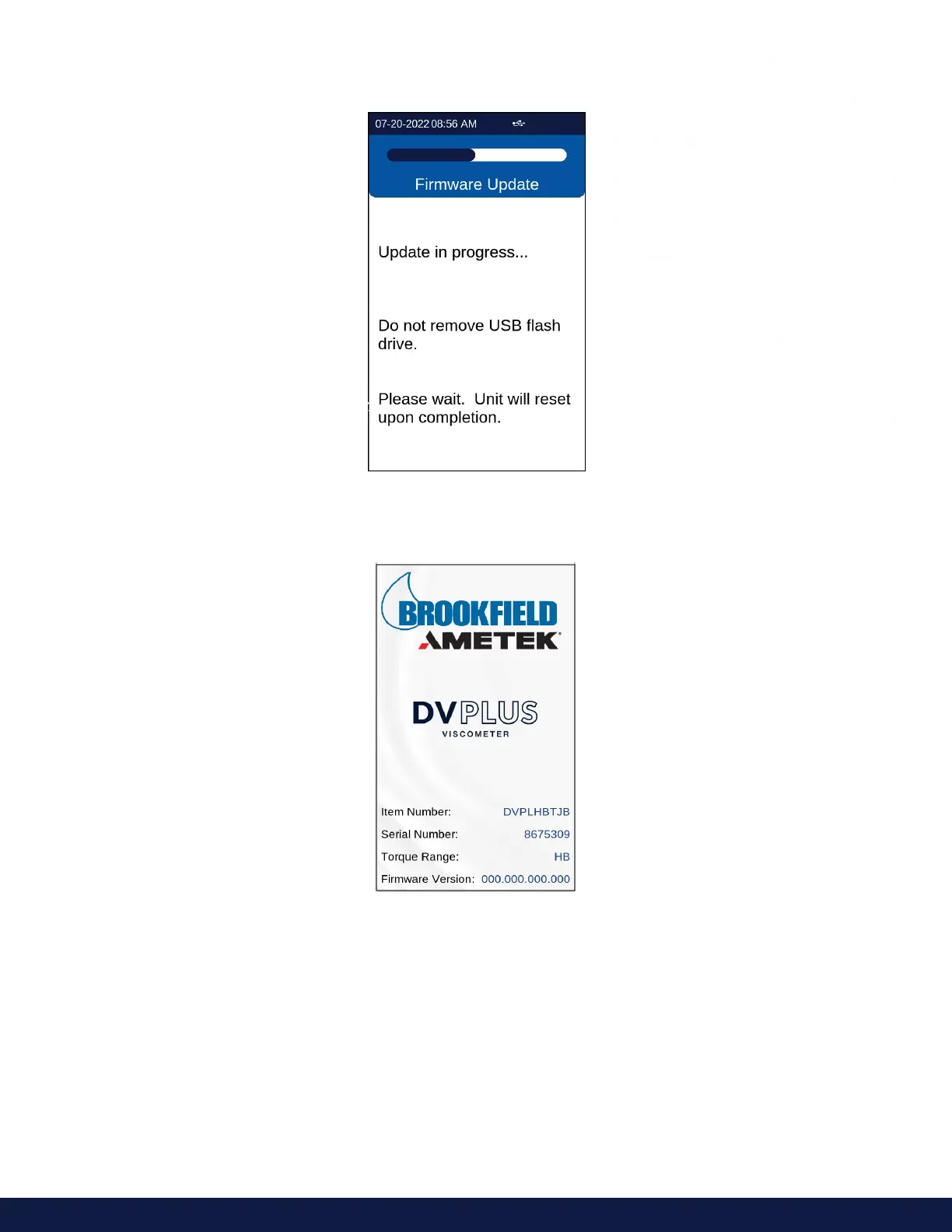

Press Update and the DVPlus will automatically update the firmware to the desired selection. When the update is
complete, the DVPlus will automatically reboot. DO NOT Remove the USB Flash Drive at any point during the update.
Figure 2-9.18
Verify that the desired Firmware version has been installed by viewing the startup Splash Screen.
Figure 2-9.19
After the DVPlus finishes booting, the USB Flash Drive can be removed.
2.10 End Conditions
The DVPlus Viscometer oers a variety of end conditions for the viscosity measurement. The end condition defines
when the spindle will stop its rotation and a final data point will be shown on the display. The end conditions currently
in use on the DVPlus can be identified by pressing the End Condition box on the Configure Viscosity Test screen.
The Set End Condition screen will then be displayed. (Figures 2-10.1 & 2-10.2)
