M21-400 REV.1.1 DVPLUS DIGITAL VISCOMETER - OPERATIONAL MANUAL

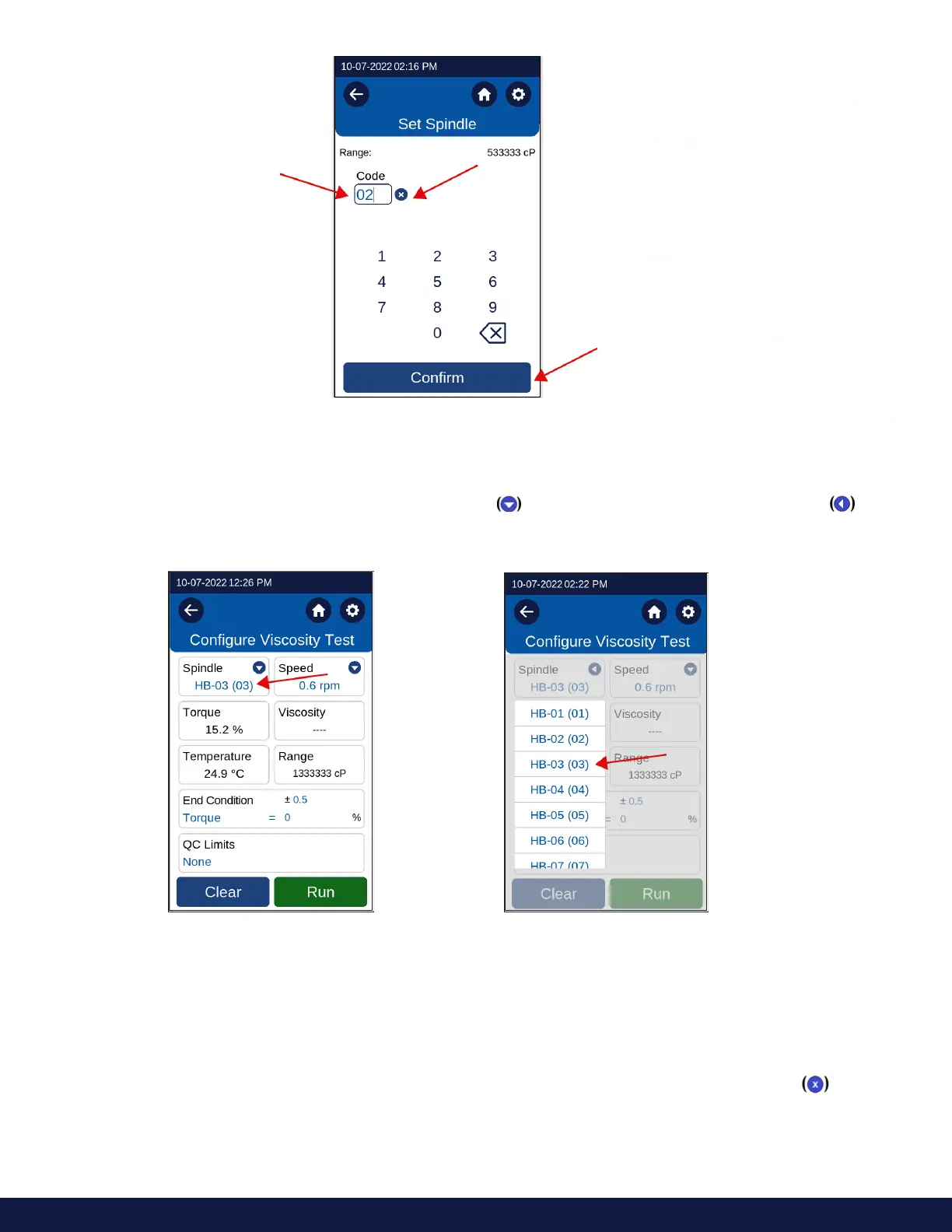

Figure 2-5.9
If using the scrollable spindle list, press the dropdown button in the Spindle box to open the spindle list .
Scroll up or down through the list of available spindles until you find the spindle you want. Then simply touch the
spindle name/part number to select it.
Figure 2-5.10 Figure 2-5.11
2.6 Speed Selection
The DVPlus rotational speed can be set from 0.0 to 200rpm using two methods. Rotational speed can be set using a
digital numeric keypad or a scrollable pre-set speed list.
If using the keypad, delete any unwanted values in the entry box by pressing the clear data radio button .
Enter the Speed you want from 0.0 to 200 rpm in the entry box and press Confirm.
